NOTES:

Part # Number on image Usage Notes
401-021-900 12
  • Idler pulley assembly including the bearings available as part number 403-360-111.
402-000-078 13
  • Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-190-101-1056452; GB: 730-190-145B-3002476. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-083 19
  • Use of Taper Lock Pulleys and bushes introduced from serial number onwards: NZ: 755-190-101-1056452; GB: 730-190-145B-3002476. All mowers manufactured prior to the above serial number please refer to the other drive system listing.
403-000-064 20
  • A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
404-040-520 23
  • Vee belts used prior to above serial numbers.
404-040-530 23
  • A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
404-040-860 25
  • Vee belts used prior to above serial numbers.
404-040-861 25
  • A&C Spindle vee belts and C Spindle idler weldment has been changed from serial number onwards: NZ: 755-190-101-1056452; GB: 755-190-101-3003544.
405-000-015 26
  • For Gearbox assembly breakdown view for parts refer to page 22.
504-000-169 32
  • For Spindle assembly breakdown view for parts refer to page 18.

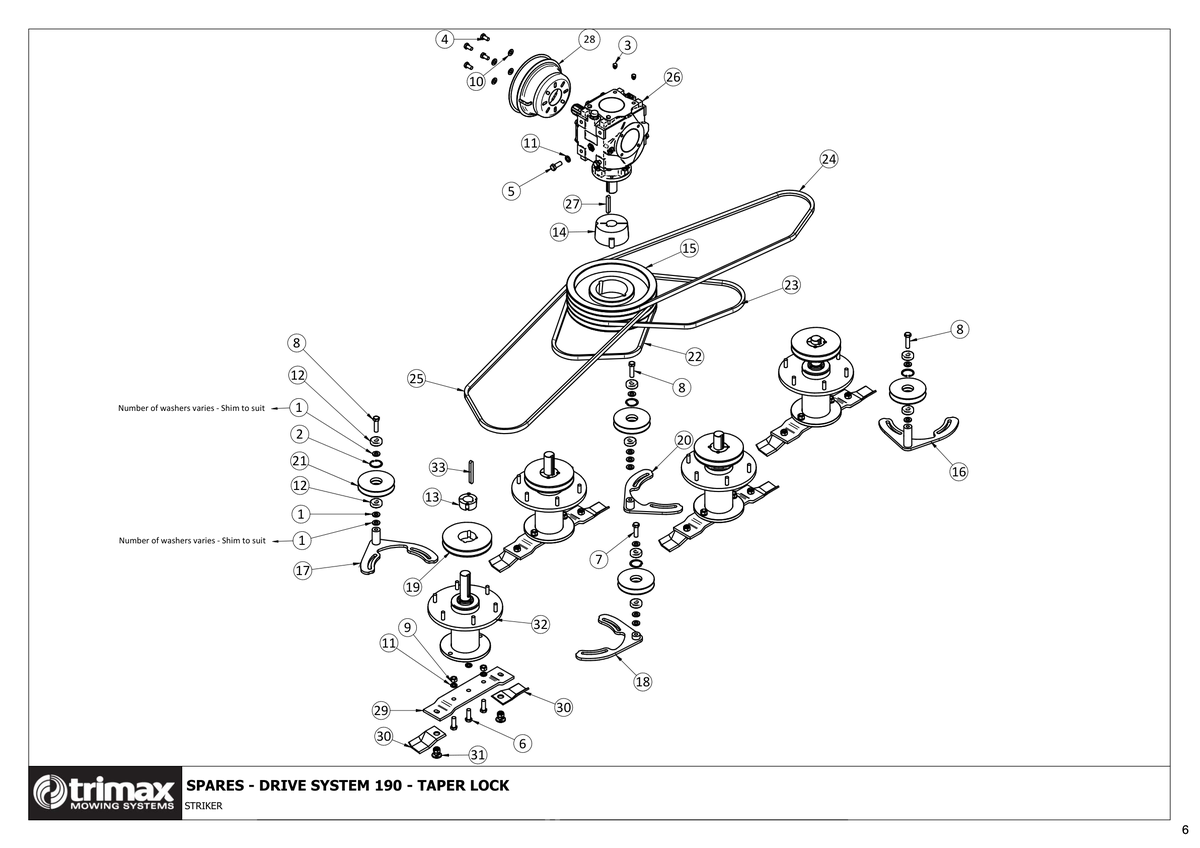

730 Striker S1 190 - Drive System - Taper Lock

Striker S1 190

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Bolt [301-210-203] Bolt 301-210-203
US$0.44
5 Bolt [301-212-303] Bolt 301-212-303
US$3.13
6 Bolt [301-212-353] Bolt 301-212-353
US$2.98
7 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
8 Bolt [301-212-453] Bolt 301-212-453
US$3.72
9 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
10 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
11 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
12 Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - [401-021-900] Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - i See notes section for usage notes on this part 401-021-900
US$22.00
13 Bush - Taper Lock [402-000-078] Bush - Taper Lock i See notes section for usage notes on this part 402-000-078
US$15.75
14 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
15 Pulley [403-000-059] Pulley 403-000-059
US$279.07
16 Idler Weldment - Long [403-000-062] Idler Weldment - Long 403-000-062
US$51.34
18 Idler Weldment - Very Short [403-000-065] Idler Weldment - Very Short 403-000-065
US$51.34
19 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock i See notes section for usage notes on this part 403-000-083
US$53.47
20 Idler Adjuster S [403-000-064] Idler Adjuster S i See notes section for usage notes on this part 403-000-064
US$51.34
21 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
22 Vee Belt [404-040-480] Vee Belt 404-040-480
US$32.35
23 Vee Belt [404-040-520] Vee Belt i See notes section for usage notes on this part 404-040-520
US$41.84
23 Vee Belt [404-040-530] Vee Belt i See notes section for usage notes on this part 404-040-530
US$41.23
24 Vee Belt [404-040-830] Vee Belt 404-040-830
US$51.54
25 Vee Belt [404-040-860] Vee Belt i See notes section for usage notes on this part 404-040-860
US$35.06
25 Vee Belt - B86 [404-040-861] Vee Belt - B86 i See notes section for usage notes on this part 404-040-861
US$40.38
26 Gearbox [405-000-015] Gearbox i See notes section for usage notes on this part 405-000-015
US$688.00
27 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
US$10.29
28 Cone - PTO Holes Punched [410-440-402] Cone - PTO Holes Punched 410-440-402
US$25.22
29 Blade Beam 150/190 [411-000-022] Blade Beam 150/190 411-000-022
US$71.97
30 Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade [411-160-842] Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842
US$6.91
31 Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting [411-322-050] Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050
US$4.28
32 Spindle Assembly - With Keyway - Striker [504-000-169] Spindle Assembly - With Keyway - Striker i See notes section for usage notes on this part 504-000-169
US$566.99
