NOTES:

Part #	Number on image	Usage Notes
401-020-800	4	Roller bearing and housing are available as kit only part number 401-020-801 401-020-801 Roller bearing kits includes roller bearing, housing and gasket
401-020-802	6	Roller bearing and housing are available as kit only part number 401-020-801 401-020-801 Roller bearing kits includes roller bearing, housing and gasket

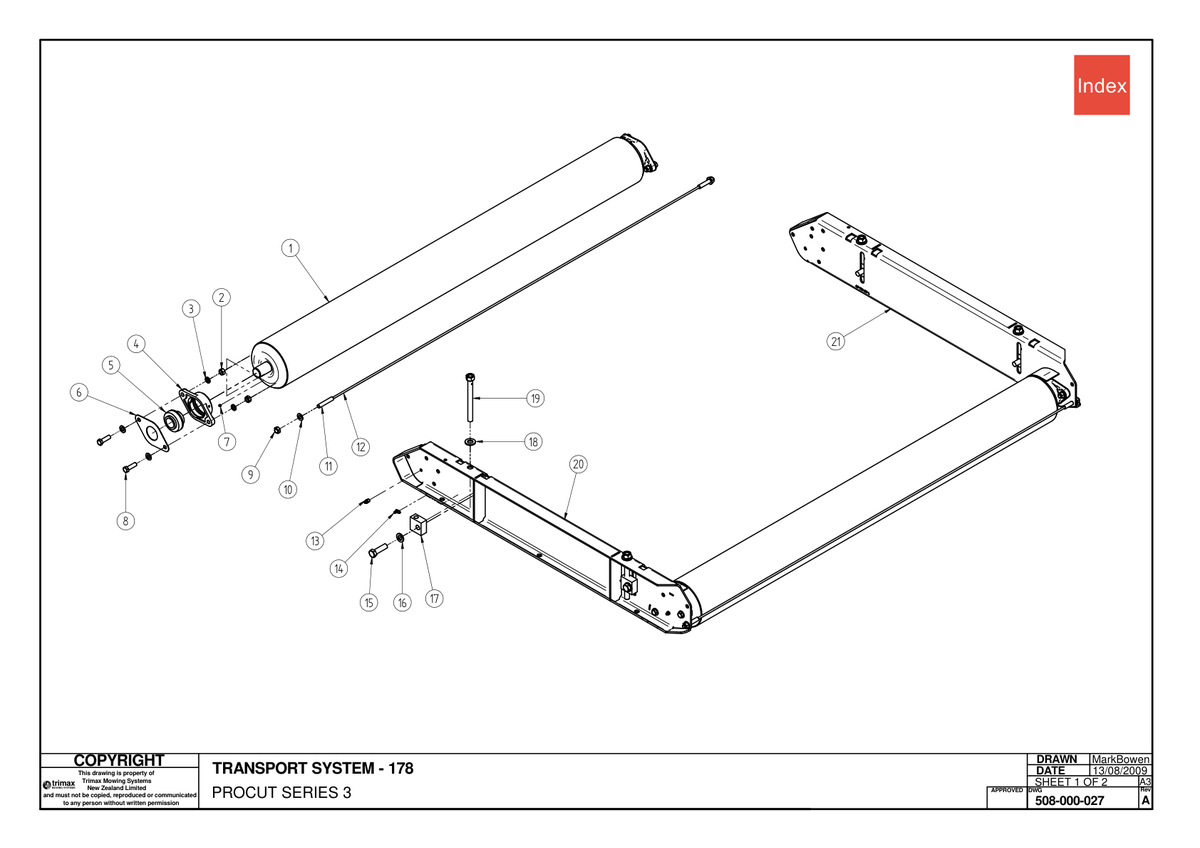

736-178 - Procut S3 - Transport System 178

ProCut S3 178

Grouped product items
No.	Product Name	Price
1	Roller Weldment 178 414-320-020 More Info >	US$573.99
2	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
4	Bearing Housing i See notes section for usage notes on this part 401-020-800 More Info >	US$21.36
6	Gasket - Paper - FL207 Roller Bearing Housing i See notes section for usage notes on this part 401-020-802 More Info >	US$4.92
7	Grub Screw 144-104-025 More Info >	US$2.53
8	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	US$8.93
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
12	Scraper - Roller Scraper Kit - 178cm 404-320-122 More Info >	US$100.94
13	Grease Nipple - Straight 1/8" (Trimax Specification) 208-442-550 More Info >	US$2.45
14	Grease Nipple 208-442-650 More Info >	US$4.76
15	Bolt 301-216-553 More Info >	US$10.87
16	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
17	Height Adjuster Block 412-330-273 More Info >	US$26.95
18	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
19	Height Adj. Screw 412-850-251 More Info >	US$32.80
20	Side Channel Weldment - DR LH Ext "S" 412-841-010 More Info >	US$426.39
21	Side Channel Weldment - DR RH Ext "S" 178 412-841-000 More Info >	US$426.39
