NOTES:

Part #	Number on image	Usage Notes
411-322-752	7	Also available as complete unit per spindle-411-322-753 Lazerbladez Assembly (S)C/W Backing & Clamp Plates

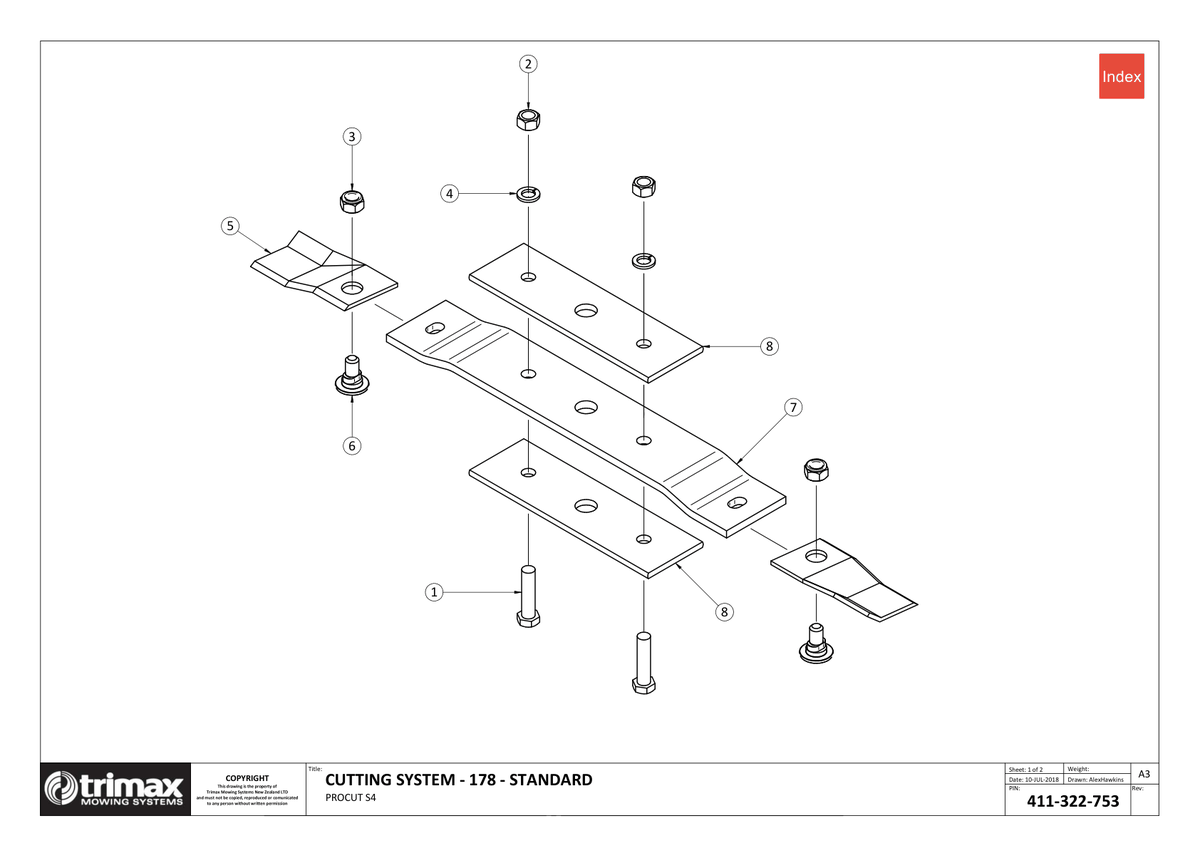

736 - Procut S4 178 - Cutting System - Standard

ProCut S4 178

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	US$3.87
2	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
3	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
5	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	US$6.91
6	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	US$4.28
7	Blade Beam - LazerBladez i See notes section for usage notes on this part 411-322-752 More Info >	US$59.74
8	Clamp Plate - LazerBladez 411-322-820 More Info >	US$21.40
