NOTES:

Part # Number on image Usage Notes
108-071-513 1
  • Quantity varies, use as required
405-000-015 25
  • Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount.
405-200-720 26
  • Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount.

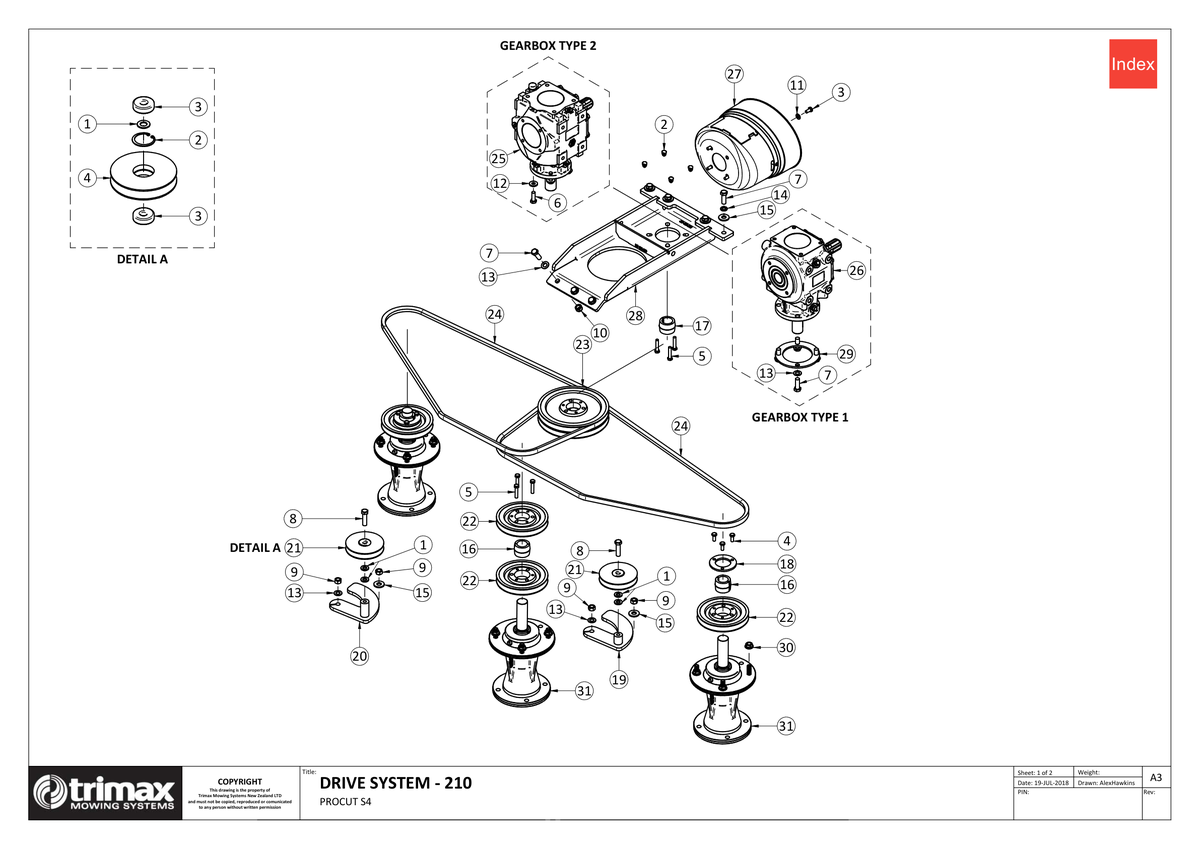

736 - Procut S4 210 - Drive System - Biloc

ProCut S4 210

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened i See notes section for usage notes on this part 108-071-513
US$2.98
2 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
3 Bolt [301-208-163] Bolt 301-208-163
US$1.05
4 Bolt [301-208-203] Bolt 301-208-203
US$1.05
5 Bolt [301-208-403] Bolt 301-208-403
US$1.64
6 Bolt [301-210-303] Bolt 301-210-303
US$0.50
7 Bolt [301-212-353] Bolt 301-212-353
US$2.98
8 Bolt [301-212-453] Bolt 301-212-453
US$3.72
9 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
10 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
11 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
12 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
13 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
14 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
15 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
16 Bush [402-060-320] Bush 402-060-320
US$27.23
17 Bush [402-060-330] Bush 402-060-330
US$49.11
18 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
19 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
20 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
21 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
22 Pulley [403-360-300] Pulley 403-360-300
US$63.88
23 Pulley [403-360-800] Pulley 403-360-800
US$96.33
24 Vee Belt [404-040-830] Vee Belt 404-040-830
US$51.54
25 Gearbox [405-000-015] Gearbox i See notes section for usage notes on this part 405-000-015
US$688.00
26 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720
US$1,405.69
27 PTO Cone - Wide angle [410-000-257] PTO Cone - Wide angle 410-000-257
US$70.23
28 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
29 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
30 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
31 Spindle Assembly - Steadfast [504-000-106] Spindle Assembly - Steadfast 504-000-106
US$749.70
