NOTES:

Part # Number on image Usage Notes
405-000-015 25
  • Locate and supply serial number when ordering new gearbox to order the correct gearbox. Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount.
405-200-720 26
  • Locate and supply serial number when ordering new gearbox to order the correct gearbox. Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount.
504-000-133 31
  • The new spindle with keyway is backwards compatible with prior machines

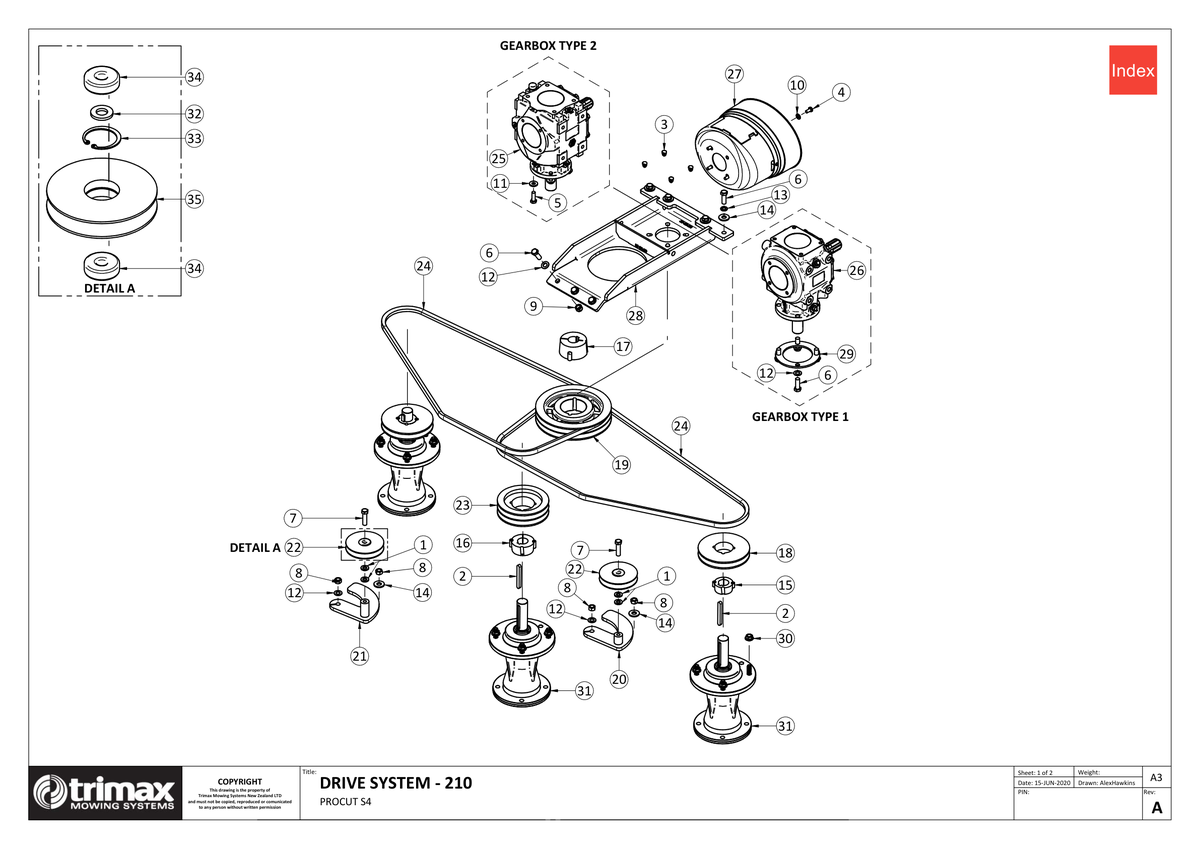

736 - Procut S4 210 - Drive System - Taper Lock Pulley

ProCut S4 210

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Key - 10 x 8 x 85 - Trimax Specification [205-000-003] Key - 10 x 8 x 85 - Trimax Specification 205-000-003
US$7.14
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
5 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
6 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
7 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
8 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
9 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
10 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
11 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
12 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
13 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
14 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
15 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
16 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
17 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
US$57.31
18 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
19 Pulley - Taper Lock Ø224 SPB x 2 [403-000-130] Pulley - Taper Lock Ø224 SPB x 2 403-000-130
US$87.83
20 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
21 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
22 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
23 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
24 Vee Belt - Trimax Specification [404-040-830] Vee Belt - Trimax Specification 404-040-830
US$51.54
25 Gearbox [405-000-015] Gearbox i See notes section for usage notes on this part 405-000-015
US$688.00
26 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720
US$1,405.69
27 PTO Cone - Wide angle [410-000-257] PTO Cone - Wide angle 410-000-257
US$70.23
28 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
29 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
30 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
31 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133
US$1,058.76
33 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
34 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
35 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
