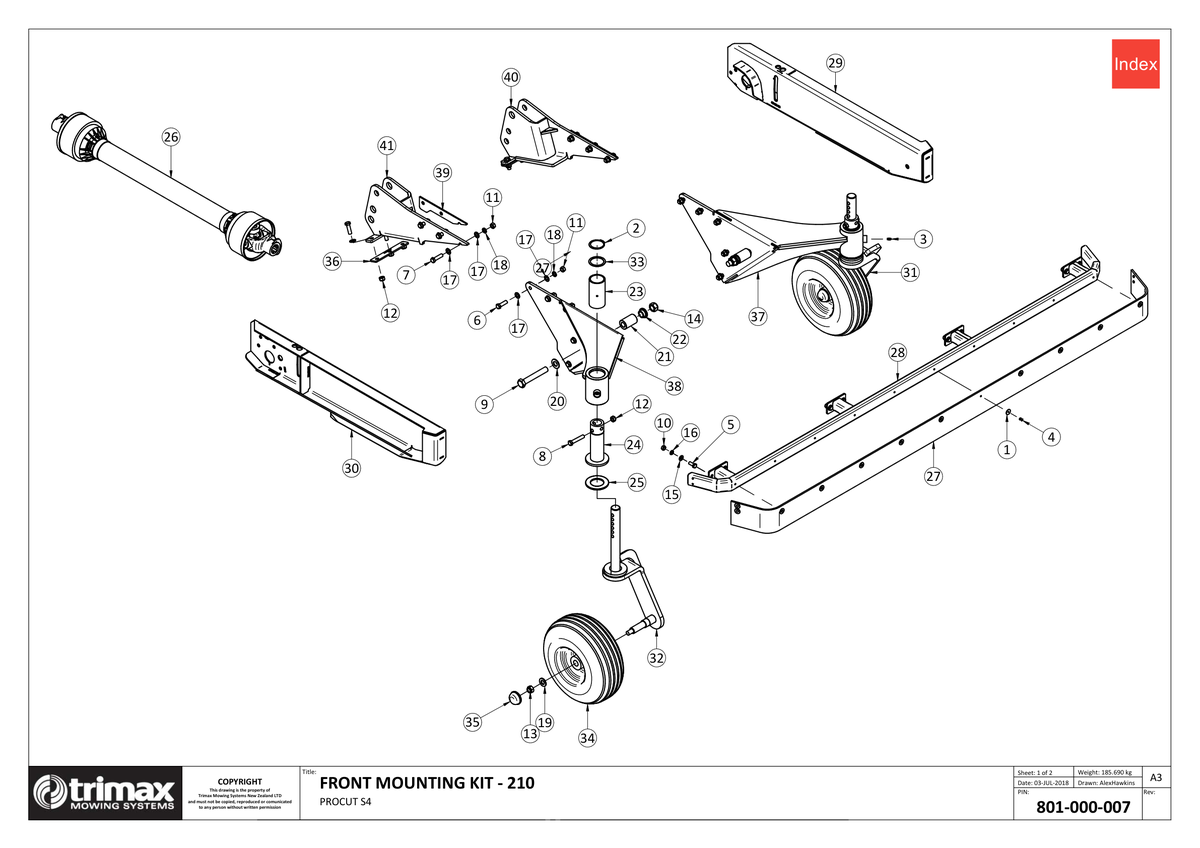

736 - Procut S4 210 - Front Mounting Kit

ProCut S4 210

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	US$0.17
2	Circlip/Snap Ring - External 204-820-522 More Info >	US$4.07
3	Grease Nipple - 1/4" Short 208-442-600 More Info >	US$3.72
4	Blind Rivet 213-443-250 More Info >	US$0.60
5	Bolt 301-210-303 More Info >	US$0.50
6	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	US$8.93
7	Bolt 301-212-453 More Info >	US$3.72
8	Bolt 301-212-653 More Info >	US$3.72
9	Bolt 301-620-133 More Info >	US$12.38
10	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	US$0.60
11	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
12	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
13	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
14	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	US$1.49
15	Washer - Flat 308-100-013 More Info >	US$0.17
16	Washer - Spring 308-100-043 More Info >	US$0.29
17	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
18	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
19	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
20	Washer - Flat 308-200-013 More Info >	US$0.25
21	Bush - Link Plate 402-000-072 More Info >	Price on Request
22	Bush - Top Hat 402-000-073 More Info >	Price on Request
23	Bush - Pivot 402-320-060 More Info >	US$122.85
24	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	US$277.27
25	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	US$45.02
26	PTO Complete Driveshaft - 1200mm - 540/1000rpm (Trimax Specification) 406-340-870 More Info >	US$428.53
28	Protector Bar Weldment 210 410-000-231 More Info >	Price on Request
29	Side Channel Weldment - LocTek - SRR LH 412-000-305 More Info >	US$411.95
30	Side Channel Weldment - LocTek - SRR RH 412-000-306 More Info >	US$411.95
31	Front Castor Weldment - LH 412-320-051 More Info >	US$726.27
32	Front Castor Weldment - RH 412-320-052 More Info >	US$726.27
33	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	US$20.55
34	Wheel Assembly 416-449-010 More Info >	US$125.48
35	Grease Cap - Wheel 416-449-015 More Info >	US$11.07
36	Link Plate Doubler 210 417-000-932 More Info >	Price on Request
37	Castor Mount Weldment LH - Front Mount Kit 417-000-937 More Info >	Price on Request
38	Castor Mount Weldment RH - Front Mount Kit 417-000-938 More Info >	Price on Request
39	Link Plate Spacer 417-001-316 More Info >	Price on Request
40	Link Plate Weldment LH 210 417-001-317 More Info >	Price on Request
41	Link Plate Weldment RH 210 417-001-318 More Info >	Price on Request
