NOTES:

Part # Number on image Usage Notes
412-000-256 13
  • Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-258 13
  • Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-309 15
  • Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-311 15
  • Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-310 16
  • Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-312 16
  • Side channels are available in two configurations, Painted or Galvanised order according to mower fitment

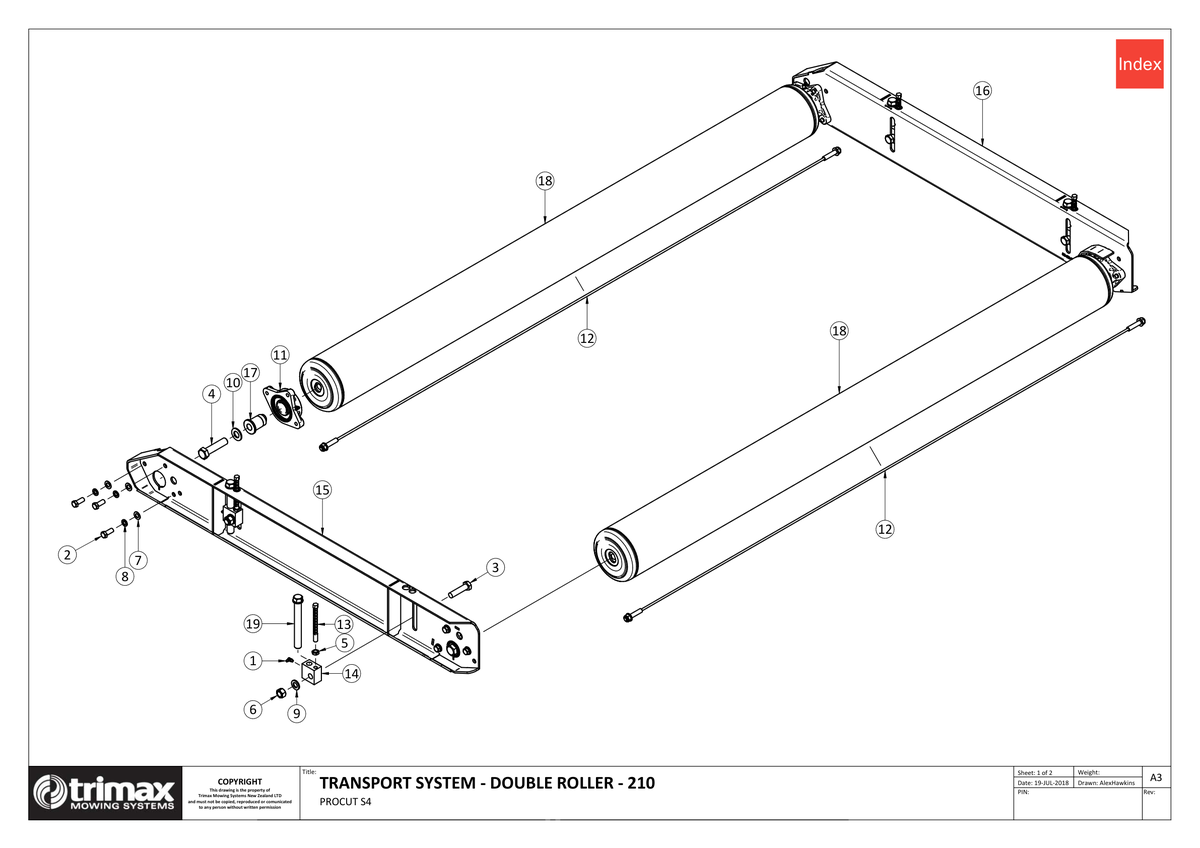

736 - Procut S4 210 - Transport System - Double Roller

ProCut S4 210

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-650] Grease Nipple 208-442-650
US$4.76
2 Bolt [301-212-303] Bolt 301-212-303
US$3.13
3 Bolt [301-216-653] Bolt 301-216-653
US$5.20
4 Bolt - Hex Head M20 x 85 - Trimax Specification - [301-220-853] Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853
US$8.00
5 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
6 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
7 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
8 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
9 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - 308-160-083
US$5.62
10 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
11 Roller Bearing Assembly - TriBolt 307-22 Oxide - [401-000-032] Roller Bearing Assembly - TriBolt 307-22 Oxide - 401-000-032
US$79.69
12 Scraper - Roller 210 [404-320-123] Scraper - Roller 210 404-320-123
US$100.94
13 Height Indicator - Metric [412-000-256] Height Indicator - Metric i See notes section for usage notes on this part 412-000-256
US$19.91
13 Height Indicator - Imperial [412-000-258] Height Indicator - Imperial i See notes section for usage notes on this part 412-000-258
US$19.91
14 Height Adjuster Block [412-000-279] Height Adjuster Block 412-000-279
US$53.50
15 Side Channel Weldment - LocTek - DR LH [412-000-309] Side Channel Weldment - LocTek - DR LH i See notes section for usage notes on this part 412-000-309
US$458.85
15 Side Channel Weldment - LocTek - DR LH [412-000-311] Side Channel Weldment - LocTek - DR LH i See notes section for usage notes on this part 412-000-311
US$552.12
16 Side Channel Weldment - LocTek - DR RH [412-000-310] Side Channel Weldment - LocTek - DR RH i See notes section for usage notes on this part 412-000-310
US$458.85
16 Side Channel Weldment - LocTek - DR RH [412-000-312] Side Channel Weldment - LocTek - DR RH i See notes section for usage notes on this part 412-000-312
US$552.12
17 Roller Stub Sleeve - LocTek - [414-000-076] Roller Stub Sleeve - LocTek - 414-000-076
US$35.06
19 Height Adjuster Rod - RapidSet [450-000-126] Height Adjuster Rod - RapidSet 450-000-126
US$33.59
