NOTES:

Part # Number on image Usage Notes
108-071-513 1
  • Quantity varies, use as required
405-000-015 32
  • Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount
405-200-720 33
  • Both gear boxes are backward compatible, 405-200-720 Gearbox should be used with 417-001-300 mount

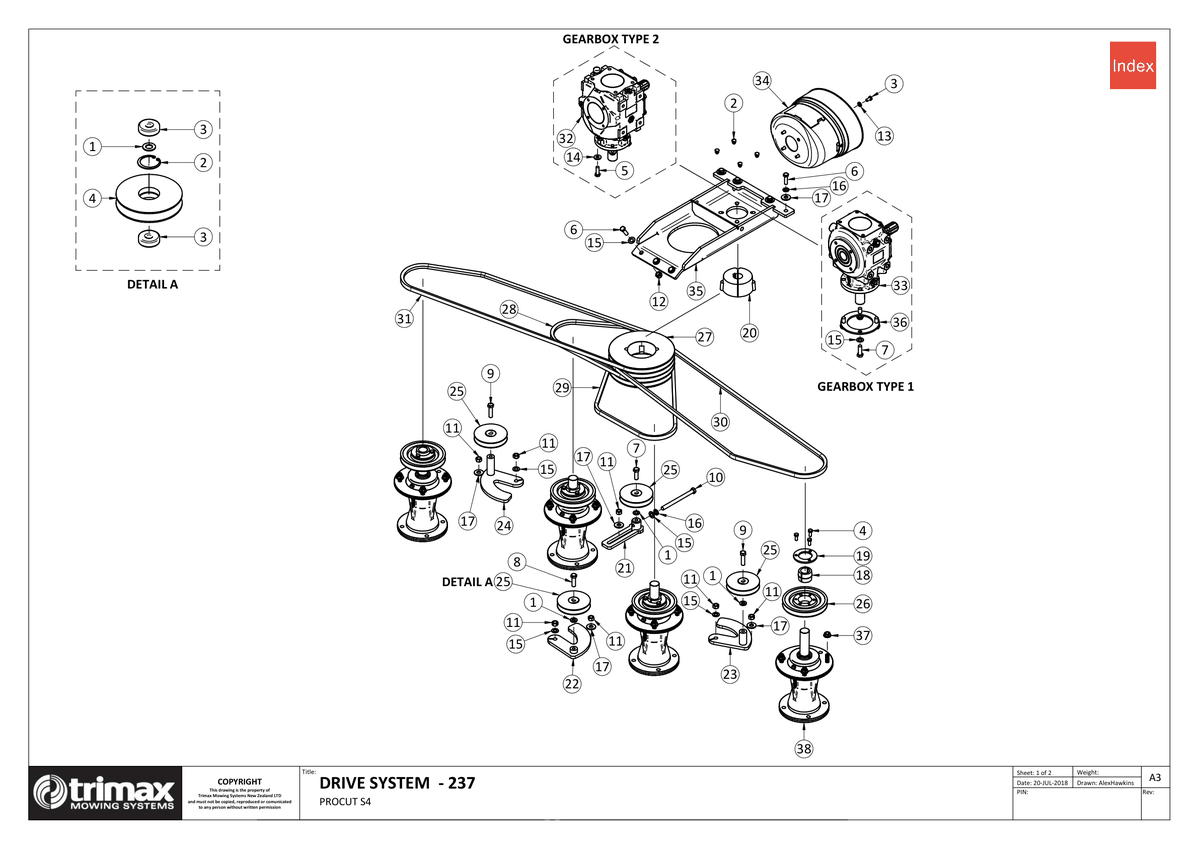

736 - Procut S4 237 - Drive System

ProCut S4 237

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened i See notes section for usage notes on this part 108-071-513
US$2.98
2 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
3 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
4 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
5 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
6 Bolt - Hex Head - M10 x 35 - Trimax Specification [301-210-353] Bolt - Hex Head - M10 x 35 - Trimax Specification 301-210-353
US$0.68
7 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
8 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
9 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
11 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
12 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
13 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
14 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
15 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
16 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
17 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
18 Bush [402-060-320] Bush 402-060-320
US$27.23
19 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
20 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
22 Idler Tower Incl Base [403-330-424] Idler Tower Incl Base 403-330-424
US$60.30
23 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
24 Idler Tower Incl Base [403-330-442] Idler Tower Incl Base 403-330-442
US$63.96
25 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
26 Pulley [403-360-300] Pulley 403-360-300
US$63.88
27 Pulley - Taper Lock [403-361-290] Pulley - Taper Lock 403-361-290
US$221.40
28 Vee Belt - Trimax Specification [404-040-460] Vee Belt - Trimax Specification 404-040-460
US$45.11
29 Vee Belt - Trimax Specification [404-040-520] Vee Belt - Trimax Specification 404-040-520
US$41.84
30 Vee Belt - Trimax Specification [404-040-900] Vee Belt - Trimax Specification 404-040-900
US$39.59
31 Vee Belt - Trimax Specification [404-040-920] Vee Belt - Trimax Specification 404-040-920
US$63.79
32 Gearbox [405-000-015] Gearbox i See notes section for usage notes on this part 405-000-015
US$688.00
33 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720
US$1,405.69
34 PTO Cone - Wide angle [410-000-257] PTO Cone - Wide angle 410-000-257
US$70.23
35 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
36 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
37 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
38 Spindle Assembly - Steadfast [504-000-106] Spindle Assembly - Steadfast 504-000-106
US$749.70
1 Washer - Flat [108-071-413] Washer - Flat 108-071-413
US$2.53
2 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
3 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - 401-021-900
US$22.00
4 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
