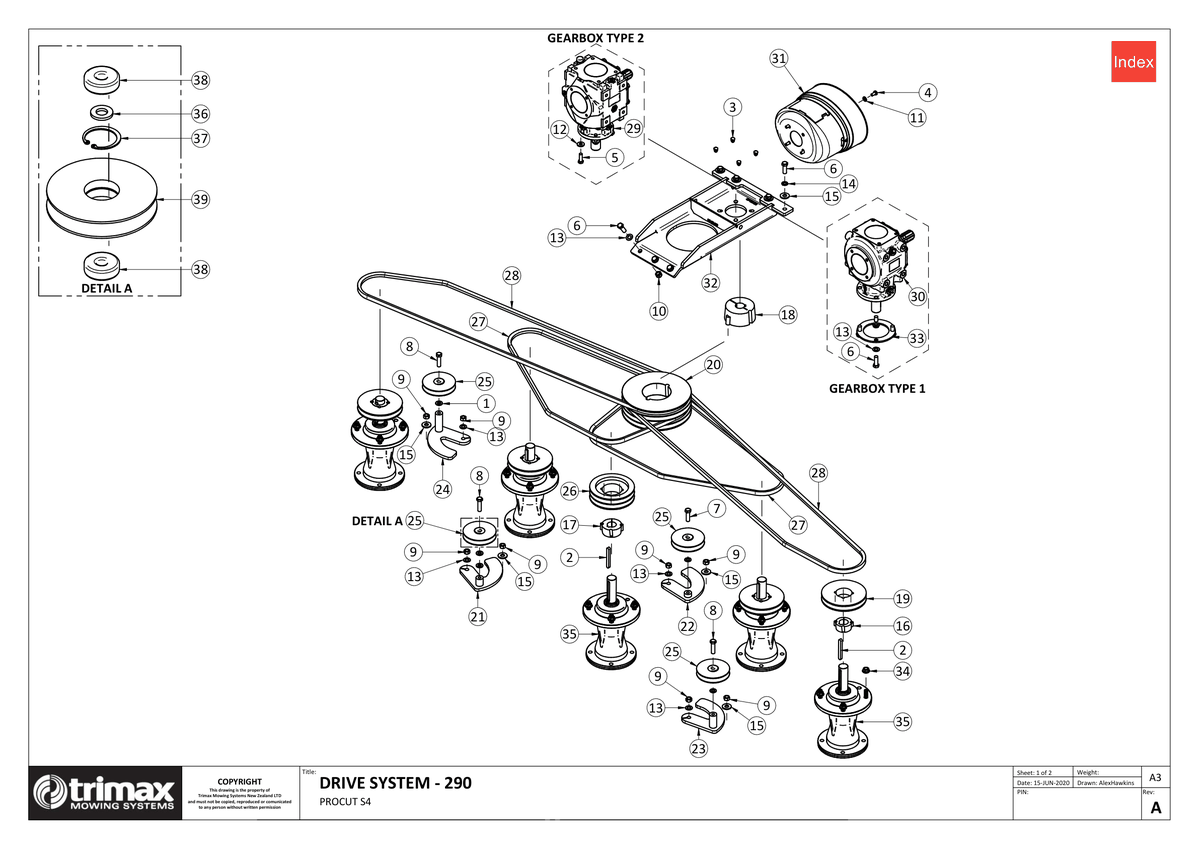

736 - Procut S4 290 - Drive System (Taper Lock)

ProCut S4 290

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Key - 10 x 8 x 85 DIN6885 Form A [205-000-003] Key - 10 x 8 x 85 DIN6885 Form A 205-000-003
US$7.14
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Bolt [301-208-163] Bolt 301-208-163
US$1.05
5 Bolt [301-210-303] Bolt 301-210-303
US$0.50
6 Bolt [301-212-353] Bolt 301-212-353
US$2.98
7 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
8 Bolt [301-212-453] Bolt 301-212-453
US$3.72
9 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
10 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
11 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
12 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
13 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
14 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
15 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
16 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
17 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
18 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
19 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
20 Pulley - Taper Lock ��236 SPB x 4 [403-000-129] Pulley - Taper Lock ��236 SPB x 4 403-000-129
US$151.70
21 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
22 Idler Tower Incl Base [403-330-424] Idler Tower Incl Base 403-330-424
US$60.30
23 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
24 Idler Tower Incl Base [403-330-442] Idler Tower Incl Base 403-330-442
US$63.96
25 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
26 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
27 Vee Belt - B75 - Trimax Specification - [404-040-750] Vee Belt - B75 - Trimax Specification - 404-040-750
US$30.38
28 Vee Belt [404-041-140] Vee Belt 404-041-140
US$52.66
29 Gearbox [405-000-015] Gearbox 405-000-015
US$688.00
30 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
US$1,405.69
31 PTO Cone - Wide angle [410-000-257] PTO Cone - Wide angle 410-000-257
US$70.23
32 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
33 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
34 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
35 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway 504-000-133
US$1,058.76
37 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal 204-820-371
US$3.13
38 Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - [401-021-900] Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900
US$18.52
39 Pulley - Idler [403-360-110] Pulley - Idler 403-360-110
US$41.94
