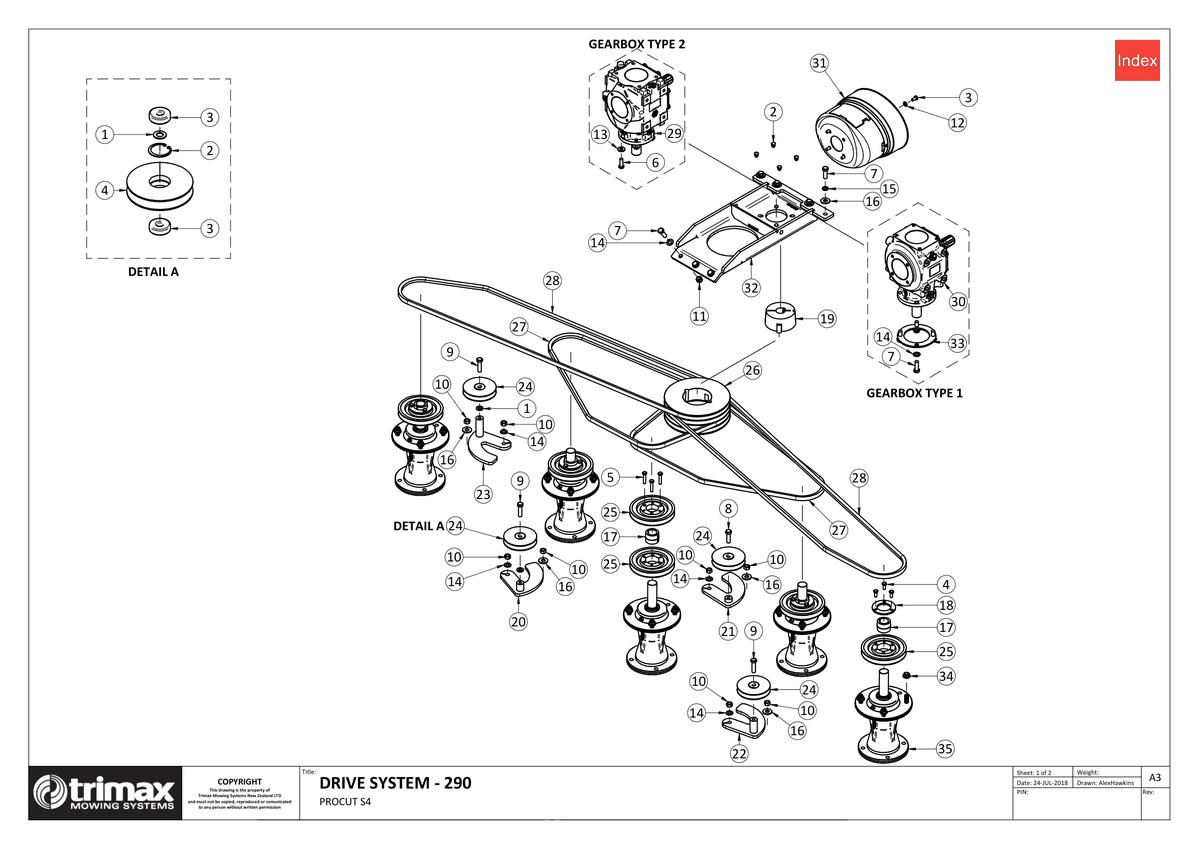

736 - Procut S4 290 - Drive System

ProCut S4 290

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
3 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
4 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
5 Bolt - Hex Head - M8 x 40 - Trimax Specification [301-208-403] Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403
US$1.64
6 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
7 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
8 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
9 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
10 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
11 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
12 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
13 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
14 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
15 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
16 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
17 Bush [402-060-320] Bush 402-060-320
US$27.23
18 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
19 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
20 Idler Tower Incl Base [403-330-423] Idler Tower Incl Base 403-330-423
US$62.65
21 Idler Tower Incl Base [403-330-424] Idler Tower Incl Base 403-330-424
US$60.30
22 Idler Tower Incl Base [403-330-432] Idler Tower Incl Base 403-330-432
US$62.73
23 Idler Tower Incl Base [403-330-442] Idler Tower Incl Base 403-330-442
US$63.96
24 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler 403-360-111
US$70.88
25 Pulley [403-360-300] Pulley 403-360-300
US$63.88
26 Pulley - Taper Lock [403-361-290] Pulley - Taper Lock 403-361-290
US$221.40
27 Vee Belt - Trimax Specification [404-040-750] Vee Belt - Trimax Specification 404-040-750
US$30.38
28 Vee Belt - Trimax Specification [404-041-140] Vee Belt - Trimax Specification 404-041-140
US$52.66
29 Gearbox [405-000-015] Gearbox 405-000-015
US$688.00
30 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
US$1,405.69
31 PTO Cone - Wide angle [410-000-257] PTO Cone - Wide angle 410-000-257
US$70.23
32 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
33 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
34 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
35 Spindle Assembly - Steadfast [504-000-106] Spindle Assembly - Steadfast 504-000-106
US$749.70
