NOTES:

Part # Number on image Usage Notes
413-000-089 19
  • Headstock is available in two configurations, Painted or Galvanised order according to mower fitment

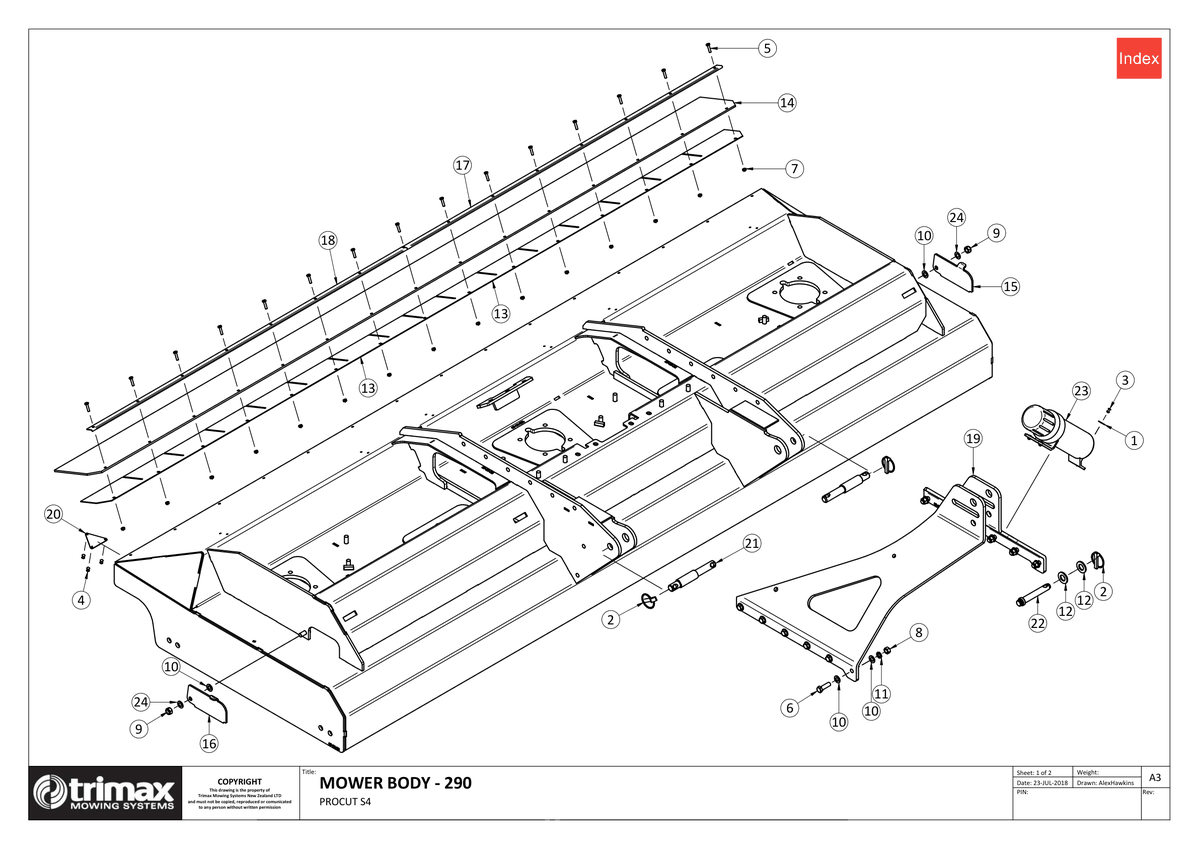

736 - Procut S4 290 - Mower Body

ProCut S4 290

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
2 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
3 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
4 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
5 Bolt - Hex Head - M6 x 25 - Trimax Specification [301-206-253] Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253
US$0.11
6 Bolt - Hex Head - M12 x 40 - Trimax Specification [301-212-403] Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403
US$8.93
7 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
8 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
9 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
10 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
11 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
12 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
13 Anti-Droop Strip - Safety Flap 290 [410-000-095] Anti-Droop Strip - Safety Flap 290 410-000-095
US$54.08
14 Safety Flap 290 [410-000-098] Safety Flap 290 410-000-098
US$141.45
15 Wash Panel - RH [410-000-134] Wash Panel - RH 410-000-134
US$24.04
16 Wash Panel - LH [410-000-135] Wash Panel - LH 410-000-135
US$24.04
17 Clamp Strip - Safety Flap LH 290 [410-000-329] Clamp Strip - Safety Flap LH 290 410-000-329
US$52.91
18 Clamp Strip - Safety Flap RH 290 [410-000-330] Clamp Strip - Safety Flap RH 290 410-000-330
US$52.91
19 Headstock Weldment - Galv PC4 [413-000-089] Headstock Weldment - Galv PC4 i See notes section for usage notes on this part 413-000-089
Price on Request
20 Cap Plate [417-001-024] Cap Plate 417-001-024
US$2.39
21 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
22 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
23 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
US$33.38
24 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
US$1.30
