NOTES:

Part # Number on image Usage Notes
301-216-307 3
  • Can also use bolt P/N 301-216-303 and apply threadlocker of medium bond strength
405-201-020 6
  • PTO Shaft 406-000-084 include PTO Shaft 406-340-890 and PTO Decal.
406-000-033 7
  • PTO Shaft 406-000-084 include PTO Shaft 406-340-890 and PTO Decal.
406-000-034 8
  • PTO Shaft 406-000-084 include PTO Shaft 406-340-890 and PTO Decal.
406-000-084 9
  • PTO Shaft 406-000-084 include PTO Shaft 406-340-890 and PTO Decal.

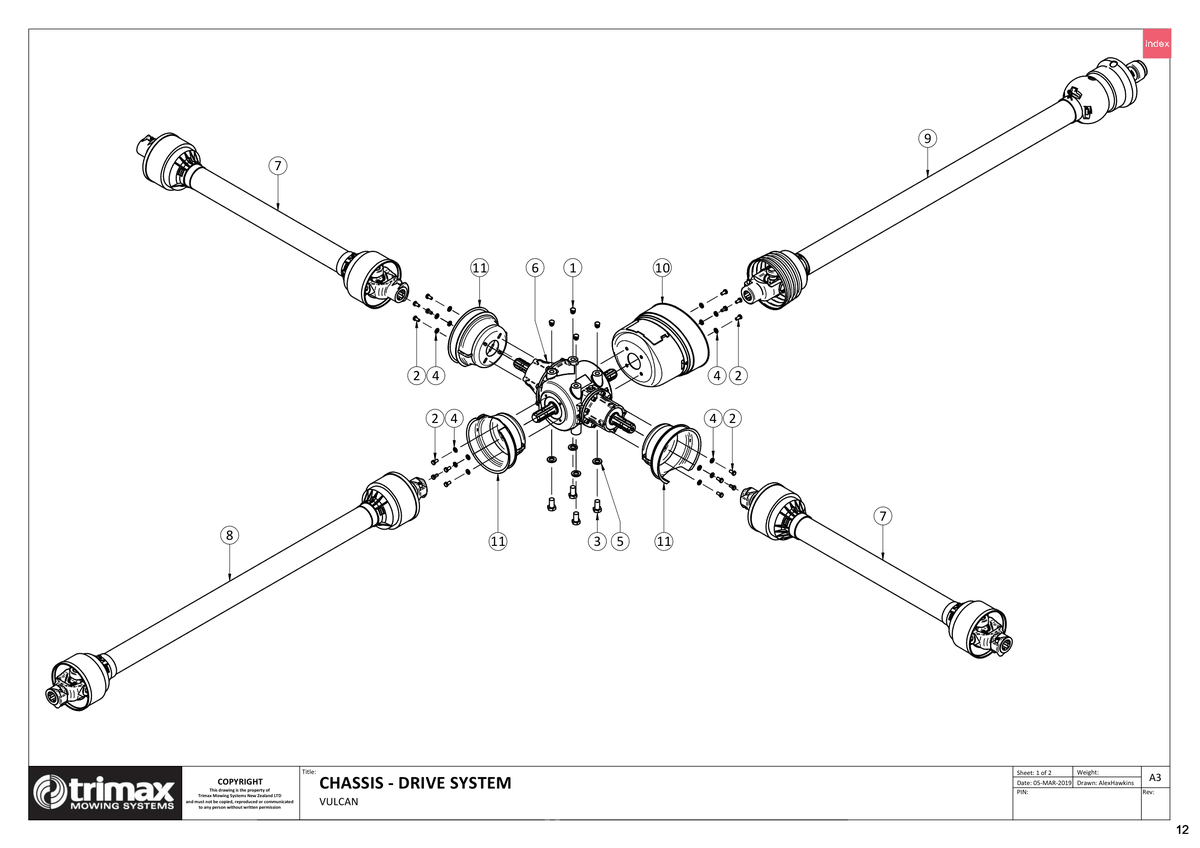

740 - Vulcan S1 725 - Chassis Drive System

Vulcan S1 725

Grouped product items
No. Image Product Name Price Quantity
1 Blanking Plug [209-900-013] Blanking Plug 209-900-013
US$0.45
2 Bolt [301-208-163] Bolt 301-208-163
US$1.05
3 Bolt [301-216-307] Bolt i See notes section for usage notes on this part 301-216-307
US$5.85
4 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
5 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - 308-160-083
US$5.62
6 Gearbox [405-201-020] Gearbox i See notes section for usage notes on this part 405-201-020
US$2,227.80
7 PTO Shaft [406-000-033] PTO Shaft i See notes section for usage notes on this part 406-000-033
US$377.97
8 PTO Shaft [406-000-034] PTO Shaft i See notes section for usage notes on this part 406-000-034
US$423.46
9 PTO Shaft Wide Angle-T60 [406-000-084] PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084
US$1,147.98
10 PTO Cone - Wide angle [410-000-257] PTO Cone - Wide angle 410-000-257
US$70.23
11 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
US$45.26
