NOTES:

Part # Number on image Usage Notes
416-000-085 24
  • Use part numbers: 416-000-086 for tyre and ,Rim P/N: 416-000-087
416-000-090 26
  • See separate listing for breakdown of parts
510-000-055 39
  • Outrigger arm assembly's c/w the 2 x 402-840-260 outrigger Hinge bushes and grease nipples 402-840-260 - Hinge Bush - Outrigger, also available separately
510-000-056 40
  • Outrigger arm assembly's c/w the 2 x 402-840-260 outrigger Hinge bushes and grease nipples 402-840-260 - Hinge Bush - Outrigger, also available separately
510-000-057 41
  • Outrigger arm assembly's c/w the 2 x 402-840-260 outrigger Hinge bushes and grease nipples 402-840-260 - Hinge Bush - Outrigger, also available separately

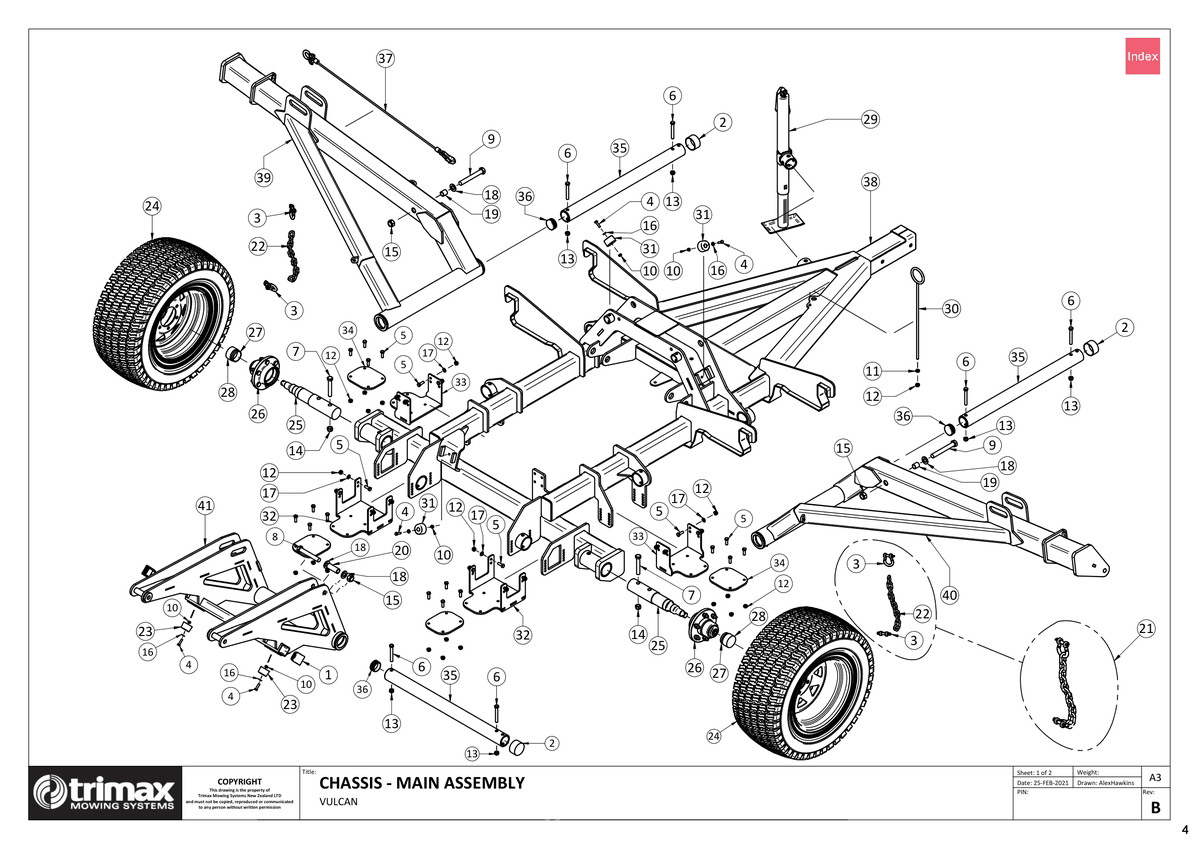

740 - Vulcan S1 725 - Chassis Main Assembly

Vulcan S1 725

Grouped product items
No. Image Product Name Price Quantity
1 Cap [209-000-007] Cap 209-000-007
US$11.58
2 Plastic Cap - Round Ø63 x 36 [209-840-320] Plastic Cap - Round Ø63 x 36 209-840-320
US$8.30
3 Bow-Shackle [214-000-001] Bow-Shackle 214-000-001
US$3.47
4 Bolt [301-208-303] Bolt 301-208-303
US$0.29
5 Bolt [301-210-303] Bolt 301-210-303
US$0.50
6 Bolt [301-212-903] Bolt 301-212-903
US$8.19
7 Bolt [301-616-103] Bolt 301-616-103
US$10.87
8 Bolt [301-620-133] Bolt 301-620-133
US$12.38
9 Bolt [301-620-203] Bolt 301-620-203
US$14.29
10 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
11 Nut - Plain M10 - Trimax Specification - [307-210-013] Nut - Plain M10 - Trimax Specification - 307-210-013
US$0.60
12 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
13 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
14 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
15 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
16 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
17 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
18 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
19 Inner Ring - Lock Bush [401-000-018] Inner Ring - Lock Bush 401-000-018
US$14.26
20 Lock Bush - Rear [402-000-111] Lock Bush - Rear 402-000-111
US$8.39
21 Kick Chain Assembly - Incl. D-Shackle [404-000-132] Kick Chain Assembly - Incl. D-Shackle 404-000-132
US$41.20
23 Buffer - Round [412-171-700] Buffer - Round 412-171-700
US$21.15
24 Wheel Assembly Turf [416-000-085] Wheel Assembly Turf i See notes section for usage notes on this part 416-000-085
US$483.20
25 Axle Stub - Bolt In [416-000-088] Axle Stub - Bolt In 416-000-088
US$328.20
26 Hub - 6 Stud [416-000-090] Hub - 6 Stud i See notes section for usage notes on this part 416-000-090
US$492.27
27 Wheel Hub Axle - Bearing Buddy [416-000-102] Wheel Hub Axle - Bearing Buddy 416-000-102
US$140.79
29 Parking Jack Assembly [418-000-217] Parking Jack Assembly 418-000-217
US$187.43
30 Guide [418-000-466] Guide 418-000-466
US$36.54
31 Buffer Pad [418-000-537] Buffer Pad 418-000-537
US$16.79
32 Stirrup - Rear Weldment [418-000-706] Stirrup - Rear Weldment 418-000-706
US$87.07
33 Stirrup - LH/RH Weldment [418-000-707] Stirrup - LH/RH Weldment 418-000-707
US$82.20
34 Stirrup Wear Plate - Vulcan [418-000-783] Stirrup Wear Plate - Vulcan 418-000-783
US$133.34
35 Pin - Outrigger Hinge - Side/Rear [419-000-042] Pin - Outrigger Hinge - Side/Rear 419-000-042
US$352.49
36 End Cap - Hinge Tube End Insert [450-000-119] End Cap - Hinge Tube End Insert 450-000-119
US$4.75
37 Safety Rope Assembly - Transport [506-000-025] Safety Rope Assembly - Transport 506-000-025
US$51.92
38 Chassis Weldment - Vulcan [510-000-054] Chassis Weldment - Vulcan 510-000-054
Price on Request
39 LH Outrigger Assembly - Vulcan [510-000-055] LH Outrigger Assembly - Vulcan i See notes section for usage notes on this part 510-000-055
Price on Request
40 RH Outrigger Assembly - Vulcan [510-000-056] RH Outrigger Assembly - Vulcan i See notes section for usage notes on this part 510-000-056
Price on Request
41 Rear Outrigger Assembly - Vulcan [510-000-057] Rear Outrigger Assembly - Vulcan i See notes section for usage notes on this part 510-000-057
Price on Request
