NOTES:

Part #	Number on image	Usage Notes
419-000-052	15	Includes Lynch Pin and Chain

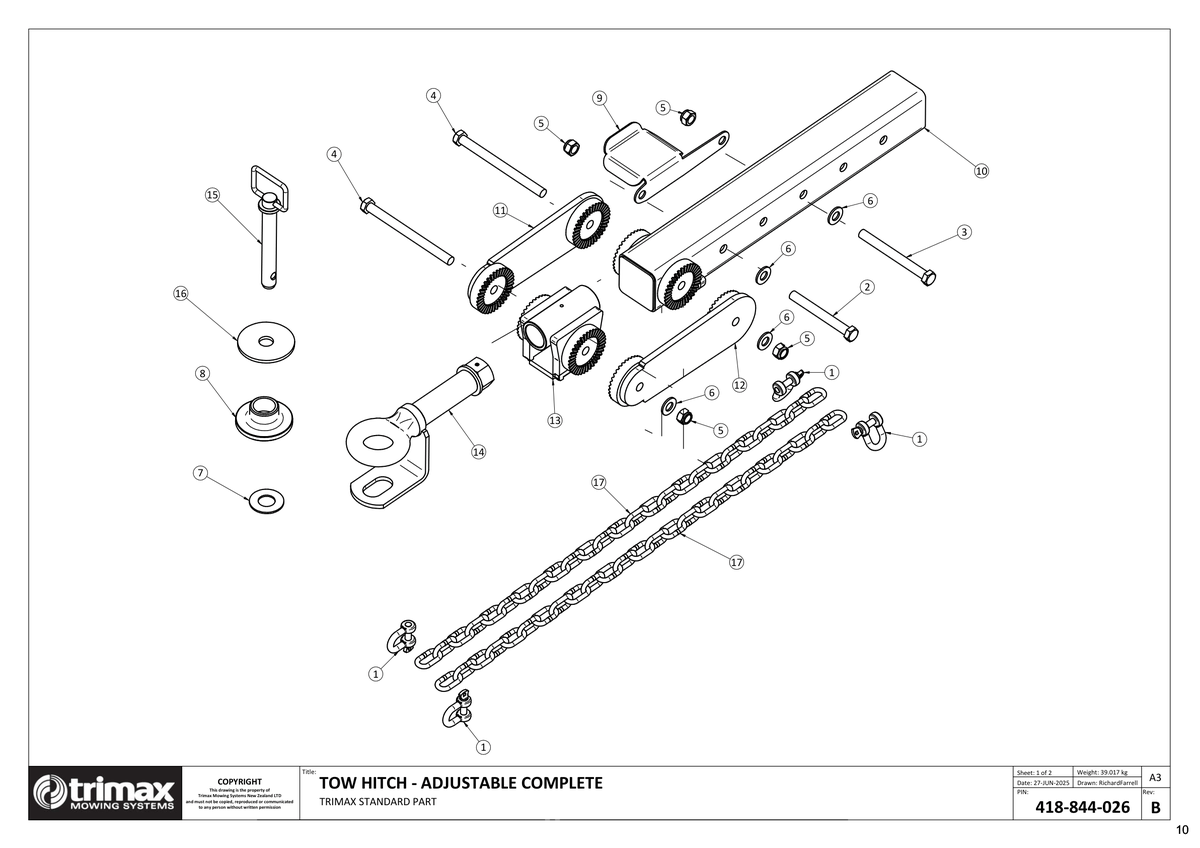

740 - Vulcan S1 725 - Drawbar Adjustable

Vulcan S1 725

Grouped product items
No.	Product Name	Price
1	D-Shackle NZS5467 214-000-002 More Info >	Price on Request
2	Bolt 301-616-143 More Info >	Price on Request
3	Bolt 301-616-163	Price on Request
4	Bolt 301-616-203 More Info >	US$17.71
5	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
6	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
7	Washer - Heavy Flat 308-270-063 More Info >	US$1.86
8	Wear Bush - Tow Eye - 32 x 51 402-840-130 More Info >	US$53.13
9	PTO Hanger - Vulcan Adjustable drawbar 418-000-806 More Info >	Price on Request
10	Tow Hitch Drawbar - Weldment - Painted 418-844-021 More Info >	Price on Request
11	Tow Hitch - ADJ Arm 1 - Painted 418-844-022 More Info >	Price on Request
12	Tow Hitch - ADJ Arm 1 - Painted 418-844-023 More Info >	Price on Request
13	Tow Hitch - Swivel Mount - Painted 418-844-024 More Info >	Price on Request
14	Tow Hitch - Swivel + Clevis - Painted 418-844-025 More Info >	US$350.00
15	Pin - Top Link - Includes Linch Pin i See notes section for usage notes on this part 419-000-052 More Info >	US$31.56
16	Hitch Pin - 1" - Washer - ZP 419-000-080 More Info >	US$11.78
