NOTES:

Part #	Number on image	Usage Notes
419-000-052	9	Includes Lynch Pin and Chain

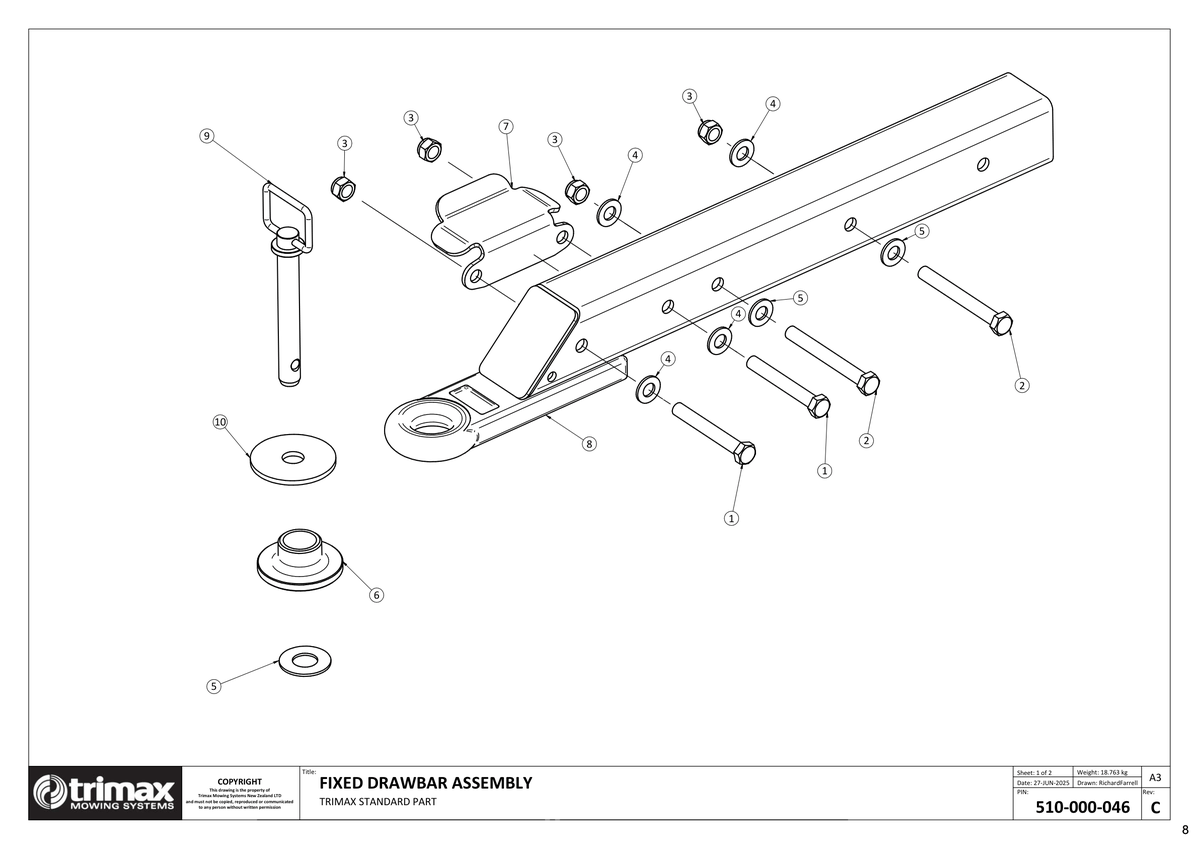

740 - Vulcan S1 725 - Drawbar Assembly

Vulcan S1 725

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M16 x 120mm 301-616-123 More Info >	Price on Request
2	Bolt 301-616-143 More Info >	Price on Request
3	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
4	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
5	Washer - Heavy Flat 308-270-063 More Info >	US$1.86
6	Wear Bush - Tow Eye - 32 x 51 402-840-130 More Info >	US$53.13
8	Drawbar Weldment 418-844-020 More Info >	US$645.45
9	Pin - Top Link - Includes Linch Pin i See notes section for usage notes on this part 419-000-052 More Info >	US$31.56
10	Hitch Pin - 1" - Washer - ZP 419-000-080 More Info >	US$11.78
