NOTES:

Part # Number on image Usage Notes
419-000-069 11
  • The Pitch Pivot Pin 419-840-450 is obsolete and been replaced by the new design pin part number 419-000-069.

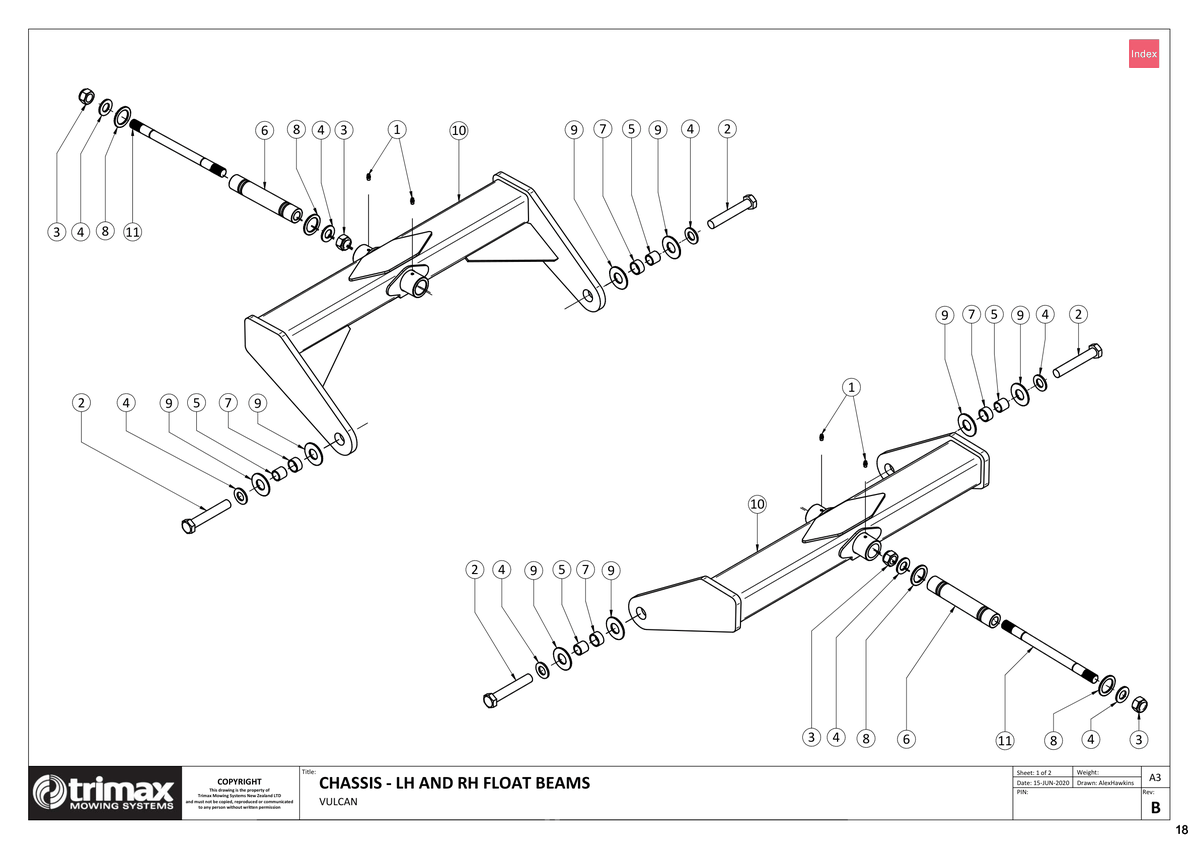

740 - Vulcan S1 725 - Float Beam LH & RH

Vulcan S1 725

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - 1/4" Short [208-442-600] Grease Nipple - 1/4" Short 208-442-600
US$3.72
2 Bolt [301-620-123] Bolt 301-620-123
Price on Request
3 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053
US$1.49
4 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
5 Inner Ring - Bearing [401-000-020] Inner Ring - Bearing 401-000-020
US$13.03
6 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
US$148.53
7 Bush - Composite Pivot Bush - 25mm [402-000-093] Bush - Composite Pivot Bush - 25mm 402-000-093
US$29.87
8 Thrust Washer [402-000-104] Thrust Washer 402-000-104
US$38.46
9 Thrust Washer [402-000-105] Thrust Washer 402-000-105
US$14.84
10 Float Beam - LH/RH Weldment [418-000-700] Float Beam - LH/RH Weldment 418-000-700
US$834.74
11 Pin - Pitch Pivot [419-000-069] Pin - Pitch Pivot i See notes section for usage notes on this part 419-000-069
US$67.44
