NOTES:

Part #	Number on image	Usage Notes
405-206-202	7	Use as required
405-206-143	10	Use as required

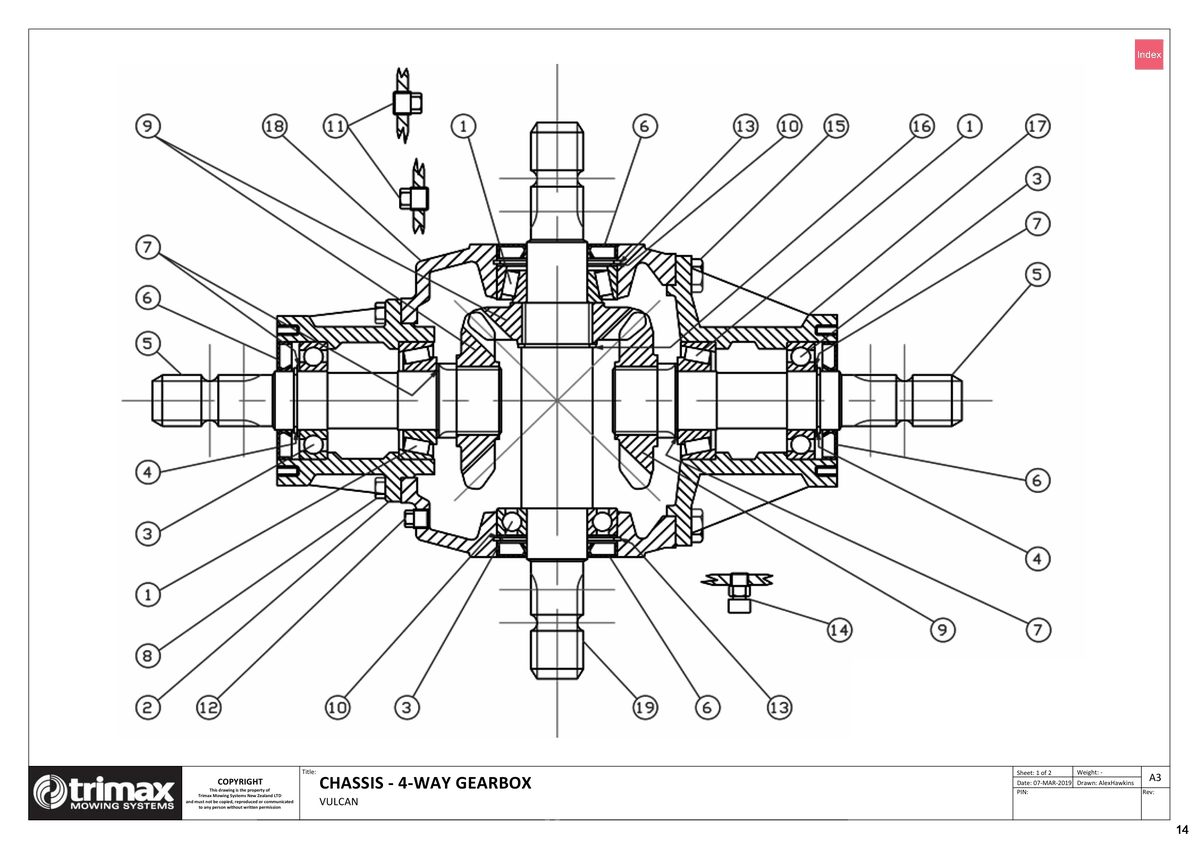

740 - Vulcan S1 725 - Gearbox - Chassis 4-Way

Vulcan S1 725

Grouped product items
No.	Product Name	Price
1	Bearing 401-022-510 More Info >	US$96.37
2	Housing 405-207-162 More Info >	Price on Request
3	Bearing 401-022-400 More Info >	US$76.84
4	Circlip/Snap Ring 204-446-190 More Info >	US$3.87
5	Shaft - Gearbox 405-203-140 More Info >	US$621.14
6	Oil Seal 422-381-000 More Info >	US$29.31
7	Shim - Gearbox i See notes section for usage notes on this part 405-206-202 More Info >	US$2.35
8	Cap Screw 303-208-225 More Info >	Price on Request
9	Bevel Gear - Gearbox 405-205-180 More Info >	US$637.13
10	Shim - Gearbox i See notes section for usage notes on this part 405-206-143 More Info >	US$3.33
11	Oil Plug - Hex Head 3/8" (Trimax Specification) 405-207-211 More Info >	US$10.84
12	Oil Plug - Gearbox 405-207-214 More Info >	Price on Request
13	Circlip/Snap Ring 204-446-193 More Info >	US$9.97
14	Gearbox - Breather 405-207-207 More Info >	US$21.66
16	Circlip/Snap Ring 204-446-191 More Info >	US$12.20
17	Housing 405-207-161 More Info >	Price on Request
18	Housing 405-207-160 More Info >	Price on Request
19	Input Shaft - Gearbox 405-203-151 More Info >	US$537.95
