NOTES:

Part #	Number on image	Usage Notes
409-000-089	11	Seal Kit P/N: 408-000-071 and Breather P/N: 408-448-480
409-000-090	12	Seal Kit P/N: 408-000-071 and Breather P/N: 408-448-480

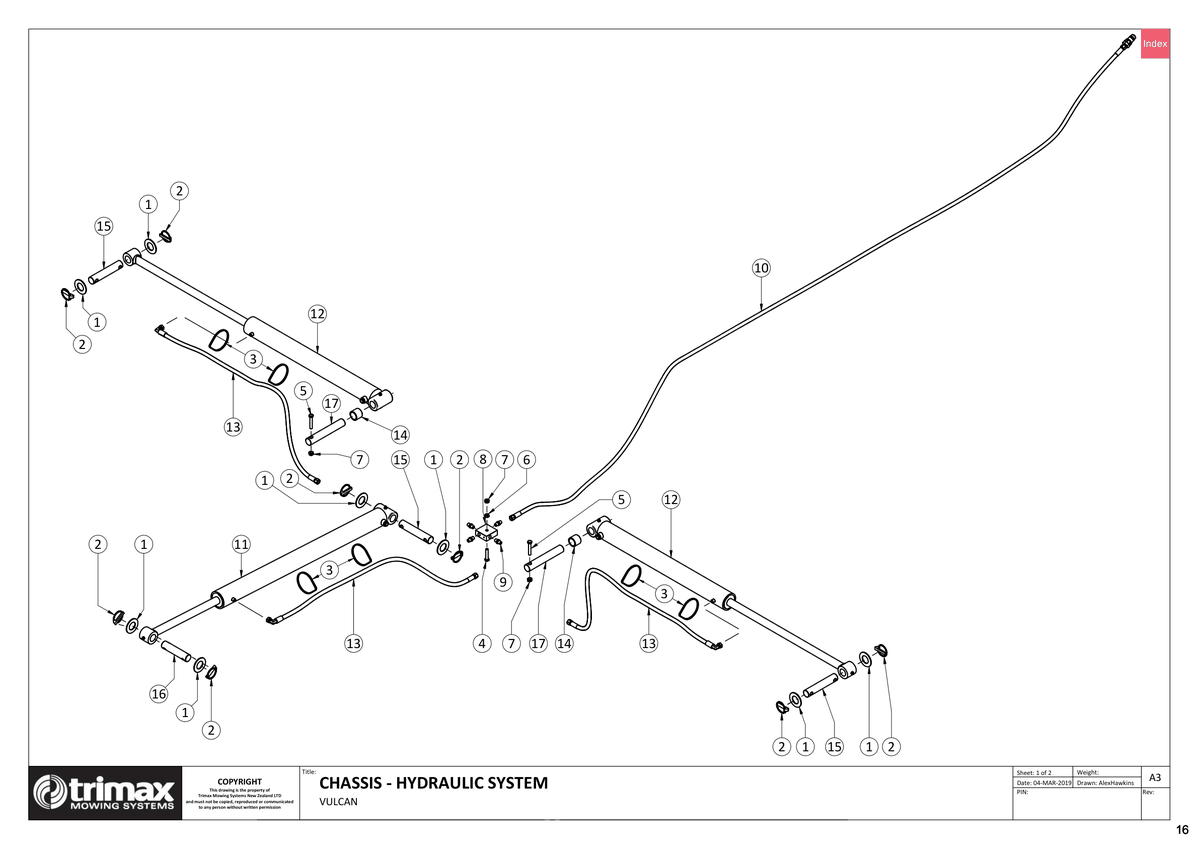

740 - Vulcan S1 725 - Hydraulic System

Vulcan S1 725

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-203-613 More Info >	US$2.07
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	US$2.23
3	Cable Tie - 382x7.5mm - Black 210-900-011 More Info >	US$0.77
4	Bolt 301-210-503 More Info >	US$1.64
5	Bolt 301-210-603 More Info >	US$0.80
6	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	US$0.60
7	Nut - Nyloc 307-210-053 More Info >	US$0.60
8	Hydraulic Junction - 4-Way Block 408-000-001 More Info >	US$165.75
10	Hose Assembly - Hydraulic - Tractor 409-000-076 More Info >	US$107.73
11	Hydraulic Cylinder i See notes section for usage notes on this part 409-000-089 More Info >	US$1,072.63
12	Hydraulic Cylinder i See notes section for usage notes on this part 409-000-090 More Info >	US$1,154.50
14	Spacer Tube 418-000-510 More Info >	US$25.42
15	Pin - Hydraulic Cylinder 419-000-035 More Info >	US$21.92
16	Pin - Hydraulic Cylinder 419-000-039 More Info >	US$48.16
17	Pin - Hydraulic Cylinder 419-000-043 More Info >	US$49.98
