NOTES:

Part #	Number on image	Usage Notes
508-000-116	22	Pre serial numbers 640-725-115-1020512 and 1020513 use part number 508-000-109 - Castor Arm Weldment - LH Deck - Inner
508-000-117	23	Pre serial numbers 640-725-115-1020512 and 1020513 use part number 508-000-108 - Castor Arm Weldment - LH Deck - Outer

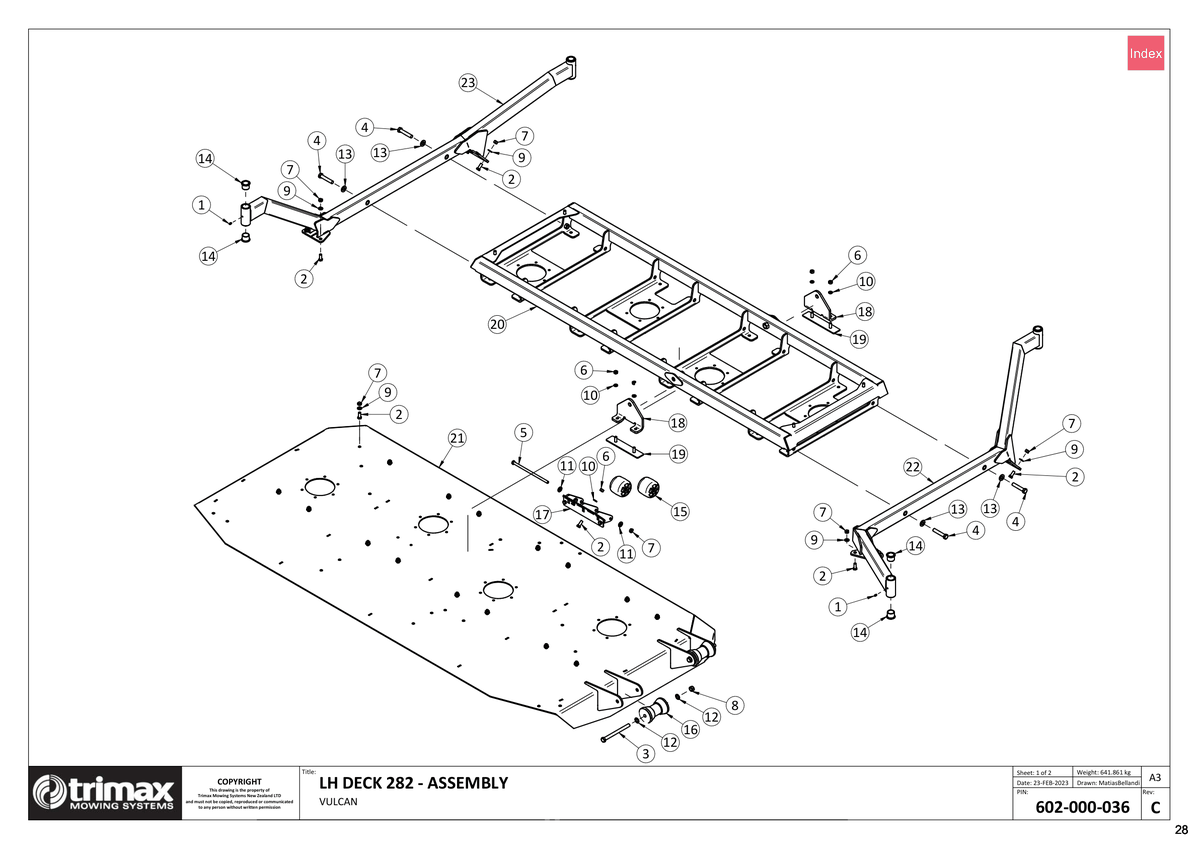

740 - Vulcan S1 725 - LH Deck - Frame and Castor Arms

Vulcan S1 725

Grouped product items
No.	Product Name	Price
1	Grease Nipple - 1/4" Short 208-442-600 More Info >	US$3.72
2	Bolt 301-212-303 More Info >	US$3.13
3	Bolt 301-216-193	Price on Request
4	Bolt 301-216-853	Price on Request
5	Bolt 301-612-260 More Info >	US$12.41
6	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
7	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
8	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
10	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
11	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
12	Washer - Flat 308-160-016 More Info >	US$0.62
13	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
14	Bush - Castor Arm 402-000-109 More Info >	US$33.97
15	Roller - Anti-Scalp 414-000-101 More Info >	US$59.81
16	Roller - Deck Guide 414-000-102 More Info >	US$69.24
17	Roller Mount Weldment 417-001-368 More Info >	US$119.68
18	Bracket 417-001-369 More Info >	US$49.91
19	Retaining Weldment - Roll Pivot 417-001-407 More Info >	US$33.85
20	Deck Frame Weldment - Vulcan 282 LH 502-000-154 More Info >	Price on Request
21	Body Weldment - 282 Galvanised LH 502-000-159 More Info >	Price on Request
22	Castor Arm - Inner - Lh Deck - Welded Assembly - Painted i See notes section for usage notes on this part 508-000-116 More Info >	Price on Request
23	Castor Arm - Outer - Lh Deck - Welded Assembly - Painted i See notes section for usage notes on this part 508-000-117 More Info >	Price on Request
