NOTES:

Part # Number on image Usage Notes
508-000-114 24
  • Pre serial numbers 640-725-115-1020512 and 1020513 use part number 508-000-107 - Castor Arm Weldment - Rear Deck RH
508-000-115 25
  • Pre serial numbers 640-725-115-1020512 and 1020513 use part number 508-000-106 - Castor Arm Weldment - Rear Deck LH

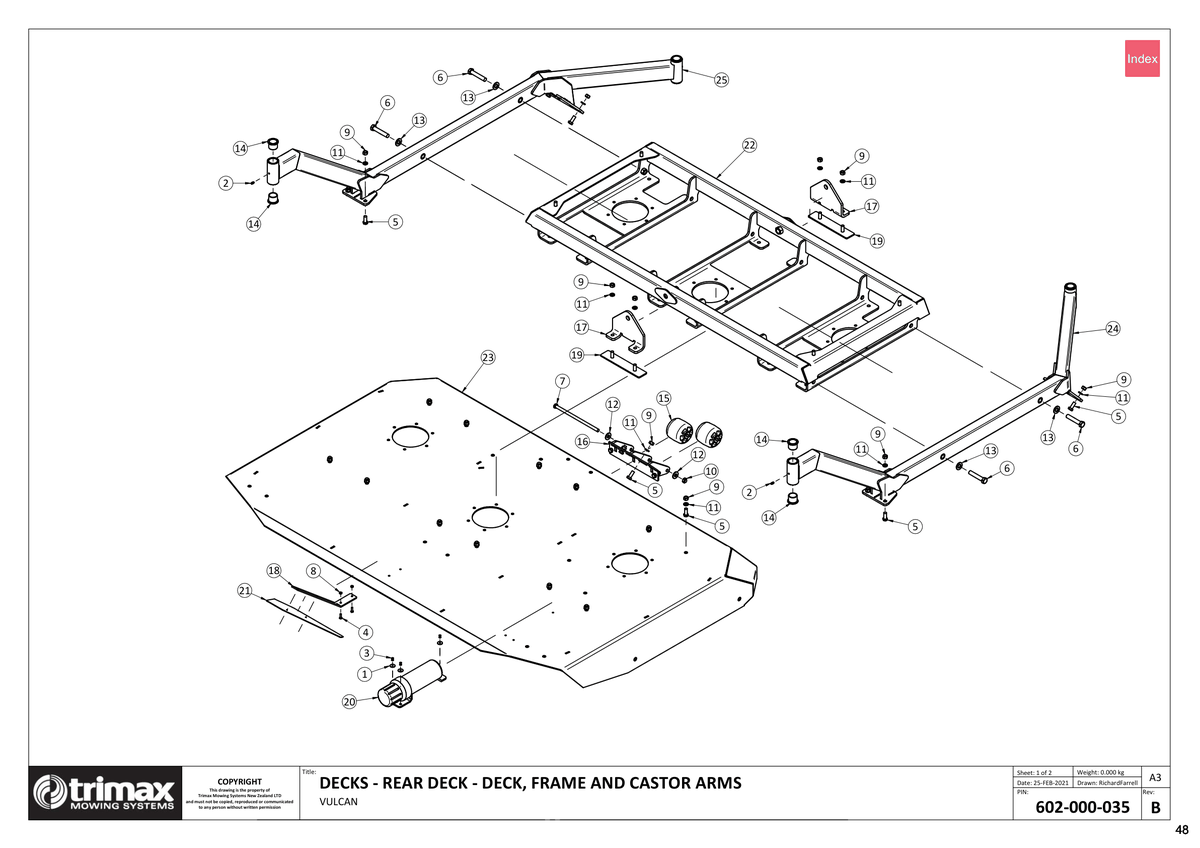

740 - Vulcan S1 725 - Rear Deck - Frame and Castor Arms

Vulcan S1 725

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
2 Grease Nipple - Trimax Specification [208-442-600] Grease Nipple - Trimax Specification 208-442-600
US$3.72
3 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
4 Bolt - Hex Head - M6 x 20 - Trimax Specification [301-206-203] Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203
US$0.12
5 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
6 Bolt - Hex Head - M16 x 75 - Trimax Specification [301-216-753] Bolt - Hex Head - M16 x 75 - Trimax Specification 301-216-753
US$2.69
7 Bolt - Hex Head - M12 x 260 - Trimax Specification [301-612-260] Bolt - Hex Head - M12 x 260 - Trimax Specification 301-612-260
US$12.41
8 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
9 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
10 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
11 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
12 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
13 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
14 Bush - Castor Arm [402-000-109] Bush - Castor Arm 402-000-109
US$33.97
15 Roller - Anti-Scalp [414-000-101] Roller - Anti-Scalp 414-000-101
US$59.81
16 Roller Mount Weldment [417-001-368] Roller Mount Weldment 417-001-368
US$119.68
17 Bracket [417-001-369] Bracket 417-001-369
US$49.91
18 Folding [417-001-370] Folding 417-001-370
US$22.64
19 Retaining Weldment - Roll Pivot [417-001-407] Retaining Weldment - Roll Pivot 417-001-407
Price on Request
20 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
US$33.38
21 Sign - Safety Triangle [450-000-124] Sign - Safety Triangle 450-000-124
US$149.74
22 Deck Frame Weldment - Vulcan 210 REAR [502-000-153] Deck Frame Weldment - Vulcan 210 REAR 502-000-153
Price on Request
23 Body Weldment - Vulcan 210 Galvanised REAR [502-000-160] Body Weldment - Vulcan 210 Galvanised REAR 502-000-160
Price on Request
24 Castor Arm - Rh - Rear Deck - Welded Assembly - Painted [508-000-114] Castor Arm - Rh - Rear Deck - Welded Assembly - Painted i See notes section for usage notes on this part 508-000-114
Price on Request
25 Castor Arm - Lh - Rear Deck - Welded Assembly - Painted [508-000-115] Castor Arm - Lh - Rear Deck - Welded Assembly - Painted i See notes section for usage notes on this part 508-000-115
Price on Request
