NOTES:

Part # Number on image Usage Notes
108-071-413 1
  • See part break down listing in DETAIL C view
403-000-091 27
  • See part break down listing in DETAIL A view
405-200-720 37
  • See separate parts break down listing under Gearbox
504-001-054 41
  • See separate parts break down listing under Spindles
204-820-371 43
  • See part break down listing in DETAIL C view
401-021-900 44
  • See part break down listing in DETAIL C view
403-000-089 45
  • See part break down listing in DETAIL A view
403-000-115 49
  • See part break down listing in DETAIL B view
403-000-118 53
  • See part break down listing in DETAIL C view

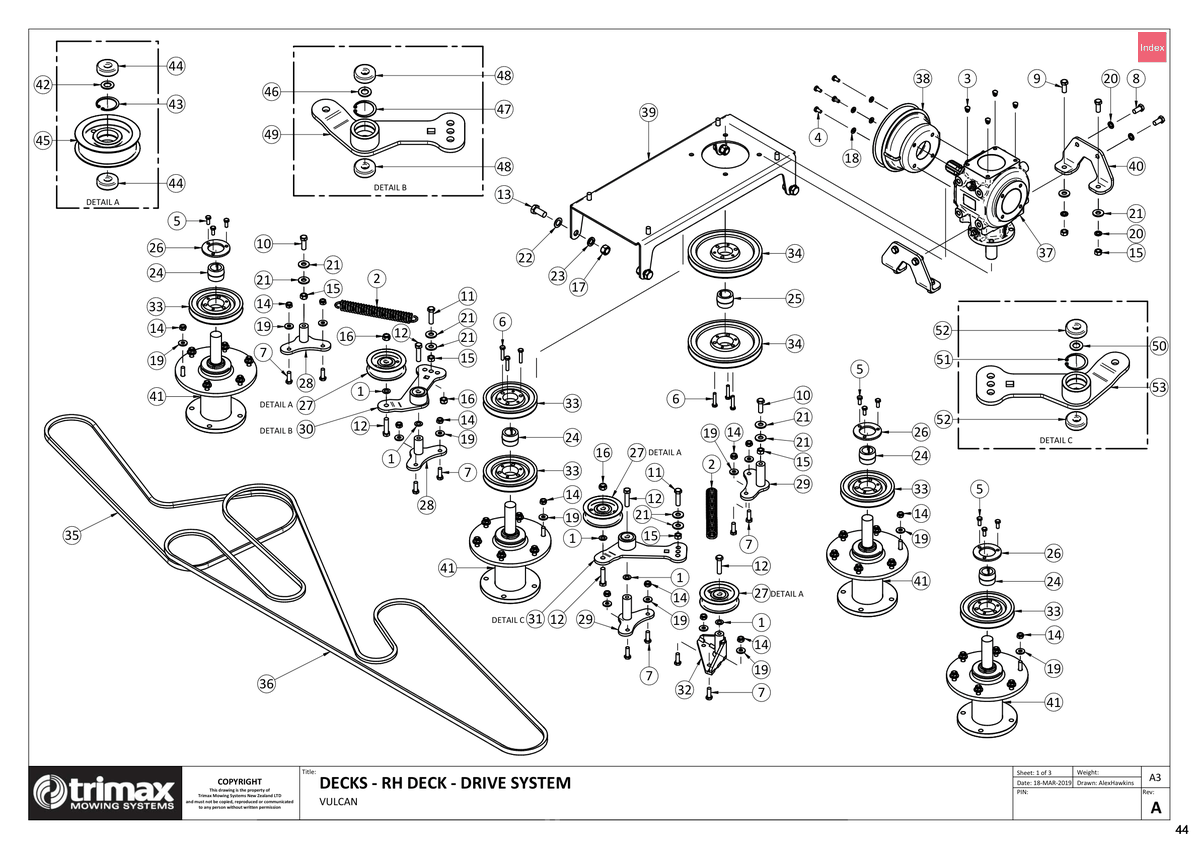

740 - Vulcan S1 725 - RH Deck - Drive System

Vulcan S1 725

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Flat [108-071-413] Washer - Flat i See notes section for usage notes on this part 108-071-413
US$2.53
2 Spring - Idler Tension - Trimax Specification [207-000-010] Spring - Idler Tension - Trimax Specification 207-000-010
US$22.45
3 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
4 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
US$1.05
5 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
6 Bolt - Hex Head - M8 x 40 - Trimax Specification [301-208-403] Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403
US$1.64
7 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
8 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
US$2.26
9 Bolt - Hex Head - M12 x 30 - Trimax Specification [301-212-303] Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303
US$3.13
10 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
US$2.98
11 Bolt - Hex Head - M12 x 45 - Trimax Specification [301-212-453] Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453
US$3.72
12 Bolt - Hex Head - M12 x 50 - Trimax Specification [301-212-503] Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503
US$3.87
13 Bolt - Hex Head - M16 x 35 - Trimax Specification [301-216-353] Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353
US$6.85
14 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
15 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
16 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
17 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
18 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
19 Washer - Heavy Flat [308-100-063] Washer - Heavy Flat 308-100-063
US$0.25
20 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
21 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
22 Washer - Flat [308-160-013] Washer - Flat 308-160-013
US$0.61
23 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
24 Bush [402-060-320] Bush 402-060-320
US$27.23
25 Bush [402-060-330] Bush 402-060-330
US$49.11
26 Retainer Ring [402-060-450] Retainer Ring 402-060-450
US$10.81
27 Pulley Assembly [403-000-091] Pulley Assembly i See notes section for usage notes on this part 403-000-091
US$84.38
28 Idler Bracket Weldment - Medium [403-000-112] Idler Bracket Weldment - Medium 403-000-112
US$69.86
29 Idler Bracket Weldment - Long [403-000-113] Idler Bracket Weldment - Long 403-000-113
US$74.77
32 Idler Bracket Weldment - Gusseted Long [403-000-120] Idler Bracket Weldment - Gusseted Long 403-000-120
US$55.41
33 Pulley [403-360-300] Pulley 403-360-300
US$63.88
34 Pulley [403-360-800] Pulley 403-360-800
US$96.33
35 Vee Belt - Trimax Specification [404-040-902] Vee Belt - Trimax Specification 404-040-902
US$64.04
36 Vee Belt - Trimax Specification [404-041-972] Vee Belt - Trimax Specification 404-041-972
US$137.64
37 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720
US$1,405.69
38 Cone - PTO Holes Punched [410-440-402] Cone - PTO Holes Punched 410-440-402
US$25.22
39 Gearbox Mount Weldment [417-001-367] Gearbox Mount Weldment 417-001-367
US$249.51
40 Folding [417-001-395] Folding 417-001-395
US$31.43
41 Spindle Keyway Assembly - Vulcan [504-001-054] Spindle Keyway Assembly - Vulcan i See notes section for usage notes on this part 504-001-054
US$637.38
43 Circlip/Snap Ring - Internal [204-820-371] Circlip/Snap Ring - Internal i See notes section for usage notes on this part 204-820-371
US$3.13
44 Bearing - Trimax Specification - [401-021-900] Bearing - Trimax Specification - i See notes section for usage notes on this part 401-021-900
US$22.00
45 Pulley - Back Tensioned [403-000-089] Pulley - Back Tensioned i See notes section for usage notes on this part 403-000-089
US$98.22
49 Idler Arm Weldment - ABT [403-000-115] Idler Arm Weldment - ABT i See notes section for usage notes on this part 403-000-115
US$94.10
53 Idler Arm Weldment - ABT [403-000-118] Idler Arm Weldment - ABT i See notes section for usage notes on this part 403-000-118
US$36.18
