NOTES:

Part # Number on image Usage Notes
412-000-330 5
  • Machines with the serial numbers 740-725-111-0001 to 0010 have different cut height spacer rings, castor stems and dummy stems than 740-725-111-0011 onwards
412-000-331 6
  • Machines with the serial numbers 740-725-111-0001 to 0010 have different cut height spacer rings, castor stems and dummy stems than 740-725-111-0011 onwards
412-000-336 7
  • Machines with the serial numbers 740-725-111-0001 to 0010 have different cut height spacer rings, castor stems and dummy stems than 740-725-111-0011 onwards
412-000-474 8
  • Machines with the serial numbers 740-725-111-0001 to 0010 have different cut height spacer rings, castor stems and dummy stems than 740-725-111-0011 onwards

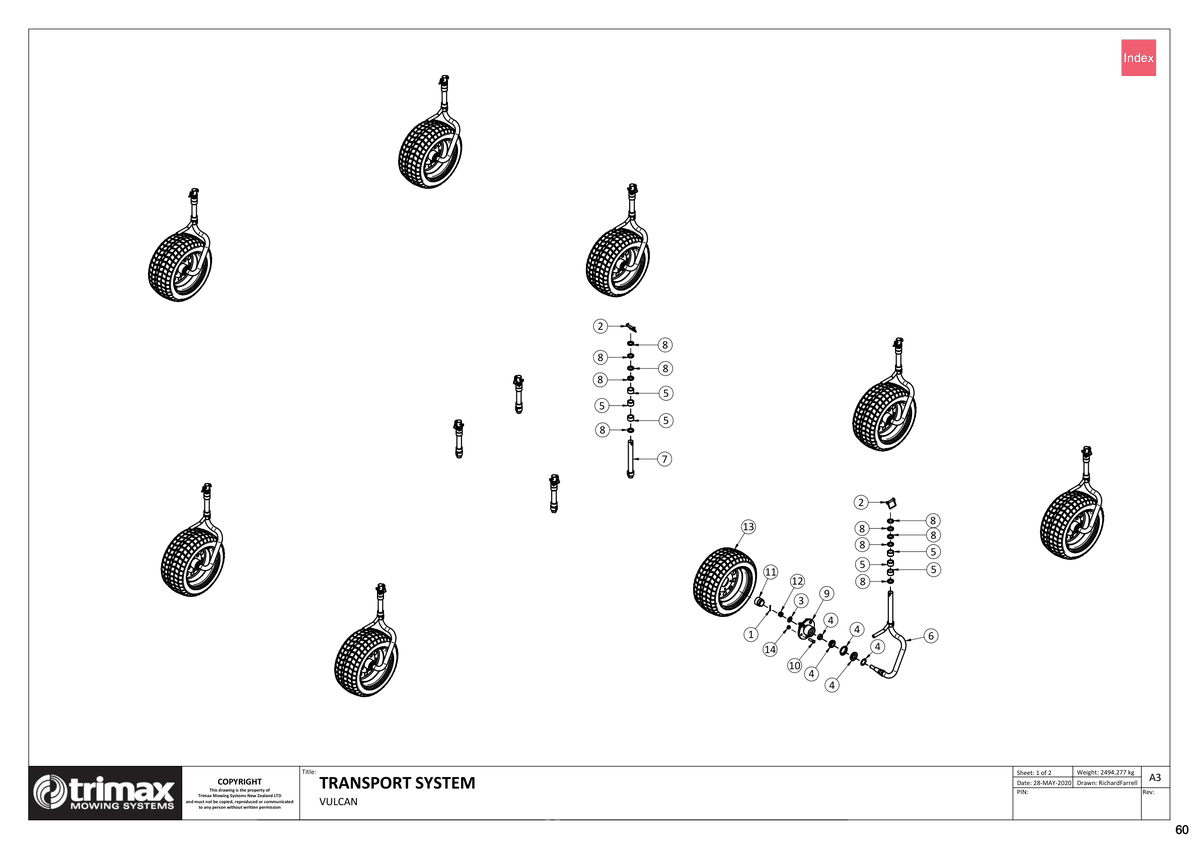

740 - Vulcan S1 725 - Transport System All Decks

Vulcan S1 725

Grouped product items
No. Image Product Name Price Quantity
1 Split (Cotter) Pin [201-447-000] Split (Cotter) Pin 201-447-000
US$0.24
2 Shaft Locking Pin - 11mm X 54mm [203-000-001] Shaft Locking Pin - 11mm X 54mm 203-000-001
US$5.18
3 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
4 Wheel Bearing/Seal Kit [416-860-470] Wheel Bearing/Seal Kit 416-860-470
US$91.42
5 Spacer Ring [412-000-330] Spacer Ring i See notes section for usage notes on this part 412-000-330
US$8.99
6 Castor Stem Weldment [412-000-331] Castor Stem Weldment i See notes section for usage notes on this part 412-000-331
US$519.24
7 Castor Stem Weldment - Partial [412-000-336] Castor Stem Weldment - Partial i See notes section for usage notes on this part 412-000-336
US$20.30
8 Spacer Ring - Cut Height [412-000-474] Spacer Ring - Cut Height i See notes section for usage notes on this part 412-000-474
US$8.59
9 Hub 5 Stud [416-000-002] Hub 5 Stud 416-000-002
US$114.71
10 Wheel Stud [416-000-003] Wheel Stud 416-000-003
US$8.79
11 Wheel Hub Castor - Bearing Buddy [416-000-098] Wheel Hub Castor - Bearing Buddy 416-000-098
US$28.29
12 Castle Nut [416-842-200] Castle Nut 416-842-200
Price on Request
13 Wheel Assembly - Solid [416-842-662] Wheel Assembly - Solid 416-842-662
US$459.78
14 Wheel Nut [416-842-890] Wheel Nut 416-842-890
US$3.00
