NOTES:

Part #	Number on image	Usage Notes
435-000-084	14	FOR LINER - 135 - SD - WITH MULCH BAR USE P/N: 435-000-087. FOR LINER - 135 - HD USE P/N: 435-000-079. FOR LINER - 135 - HD - WITH MULCH BAR USE P/N: 435-000-082

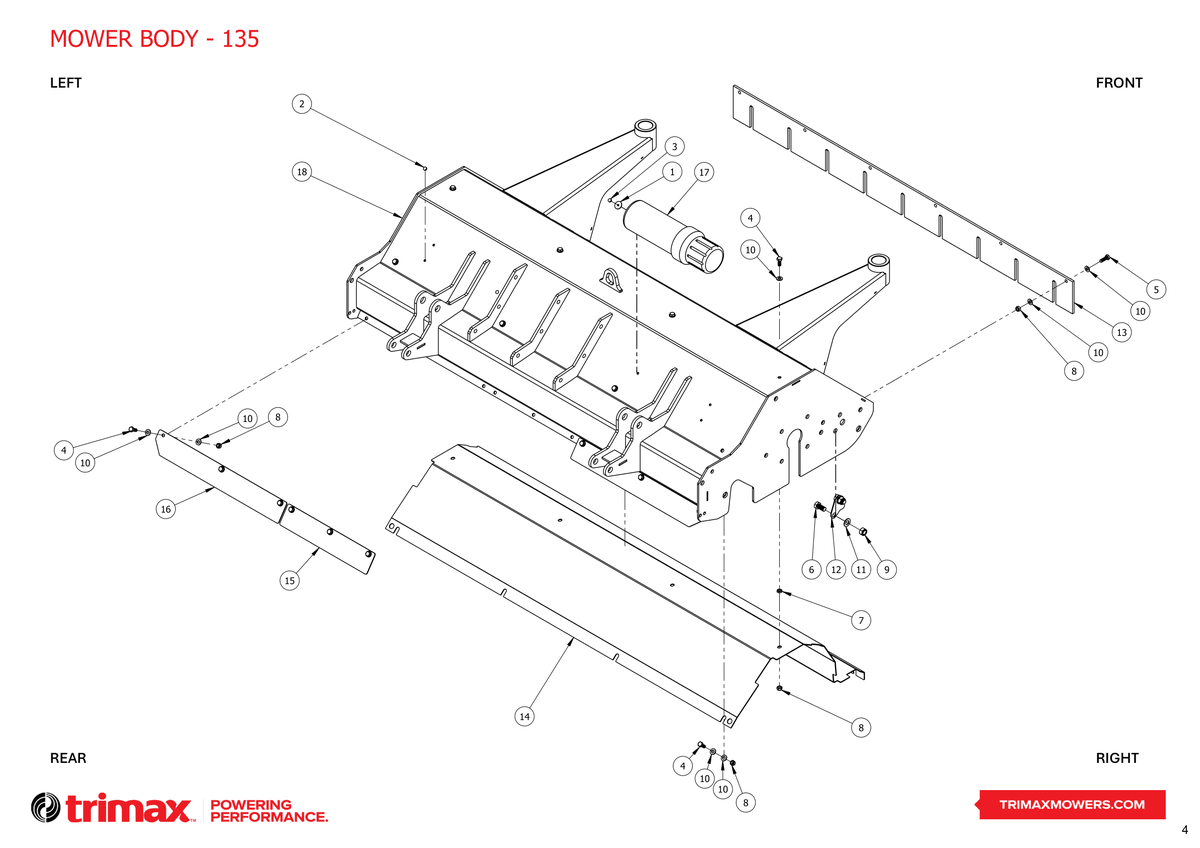

752 - Flaildek S4 - 135 - Mower Body

FlailDek S4 135

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	US$0.17
2	Blind Rivet 213-443-210 More Info >	Price on Request
3	Blind Rivet 213-443-250 More Info >	US$0.60
4	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	US$1.05
5	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	US$0.89
6	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	US$2.26
7	Nut - Half - M8 307-208-023 More Info >	Price on Request
8	Nut - Nyloc 307-208-053 More Info >	US$1.34
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
10	Washer - Flat 308-080-013 More Info >	US$1.34
11	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
12	Converter Blank Plate Zinc Plated 430-000-002 More Info >	Price on Request
13	Front Flap - 110mm PVK - 135 430-000-007 More Info >	Price on Request
14	Liner - 135 - SD i See notes section for usage notes on this part 435-000-084 More Info >	US$395.00
15	Rear Flap - Inner - 135 - Coated 435-000-117 More Info >	Price on Request
16	Rear Flap - Outer 435-000-123 More Info >	Price on Request
17	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	US$33.38
18	Body Weldment - 135 550-000-001 More Info >	Price on Request
