NOTES:

Part #	Number on image	Usage Notes
435-000-094	13	FOR LINER - 155 - SD - WITH MULCH BAR USE P/N: 435-000-096. FOR LINER - 155 - HD USE P/N: 435-000-089. FOR LINER - 155 - HD - WITH MULCH BAR USE P/N: 435-000-092

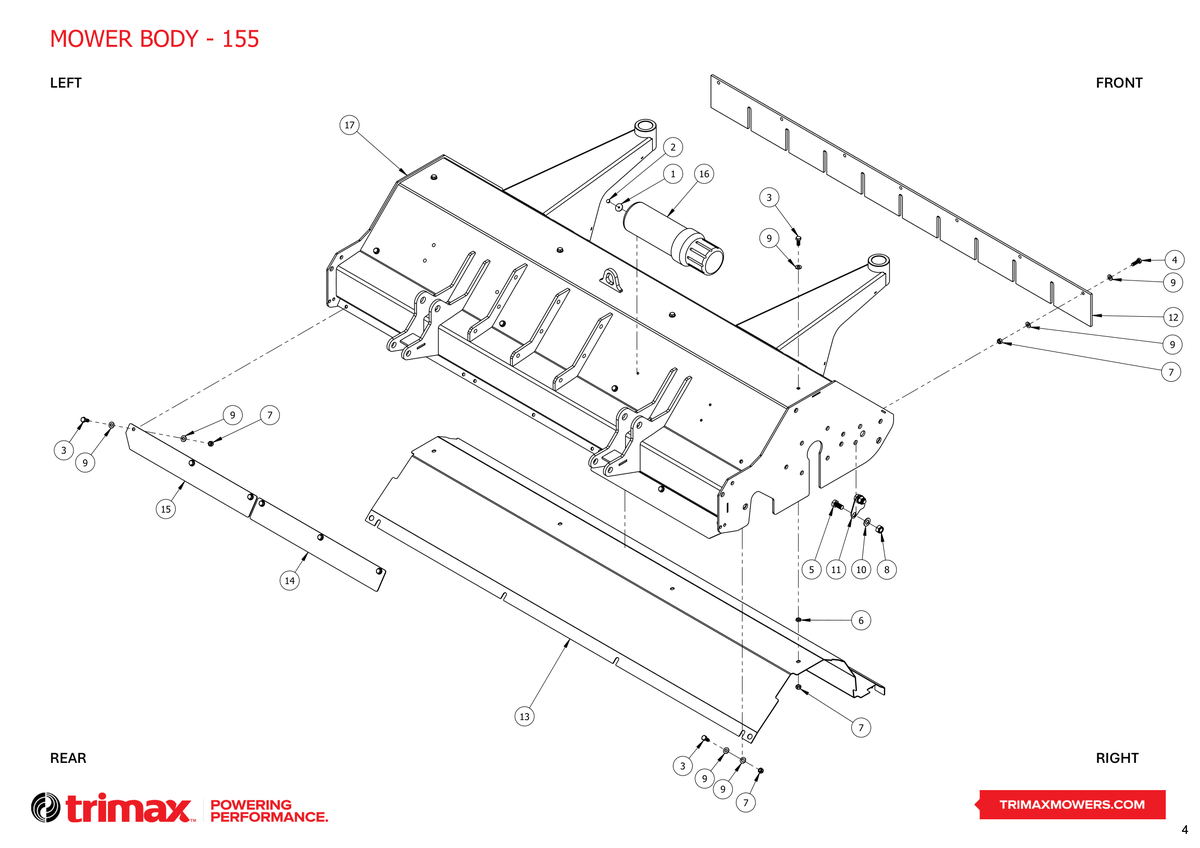

752 - Flaildek S4 - 155 - Mower Body

FlailDek S4 155

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	US$0.17
2	Blind Rivet 213-443-250 More Info >	US$0.60
3	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	US$1.05
4	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	US$0.89
5	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	US$2.26
6	Nut - Half - M8 307-208-023 More Info >	Price on Request
7	Nut - Nyloc 307-208-053 More Info >	US$1.34
8	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
9	Washer - Flat 308-080-013 More Info >	US$1.34
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
11	Converter Blank Plate Zinc Plated 430-000-002 More Info >	Price on Request
12	Front Flap - 110mm PVK - 155 430-000-006 More Info >	Price on Request
13	Liner - 155 - SD i See notes section for usage notes on this part 435-000-094 More Info >	US$395.00
14	Rear Flap - Inner - 155 435-000-119 More Info >	Price on Request
15	Rear Flap - Outer 435-000-123 More Info >	Price on Request
16	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	US$33.38
17	Body Weldment - 155 550-000-004 More Info >	Price on Request
