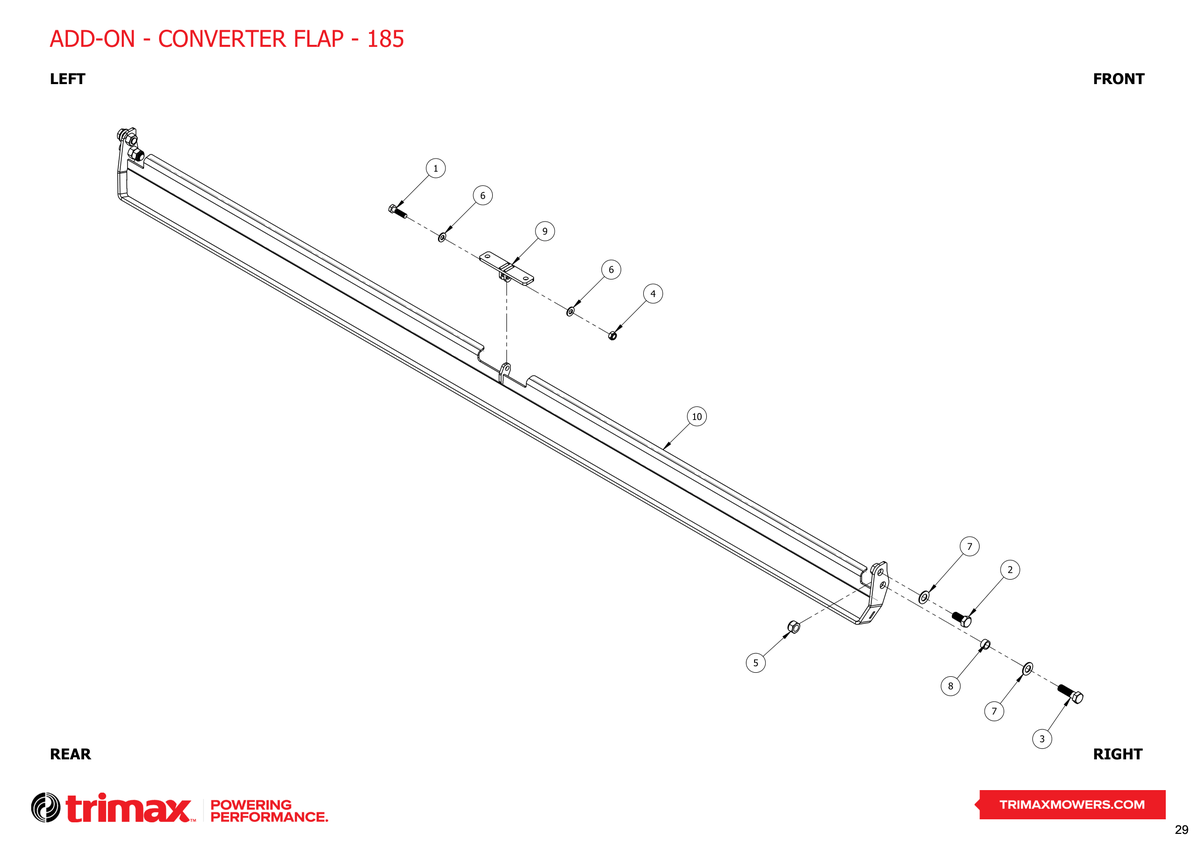

752 - Flaildek S4 - 185 - Add-On Converter Flap

FlailDek S4 185

Grouped product items
No. Image Product Name Price Quantity
1 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
US$0.29
2 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
US$2.26
3 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
4 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
5 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
6 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
7 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
8 Converter Bush - Zinc Plated [430-000-026] Converter Bush - Zinc Plated 430-000-026
Price on Request
9 Converter Flap Support Weldment [435-000-045] Converter Flap Support Weldment 435-000-045
Price on Request
10 Converter Flap Weldment - 185 [435-000-051] Converter Flap Weldment - 185 435-000-051
Price on Request
