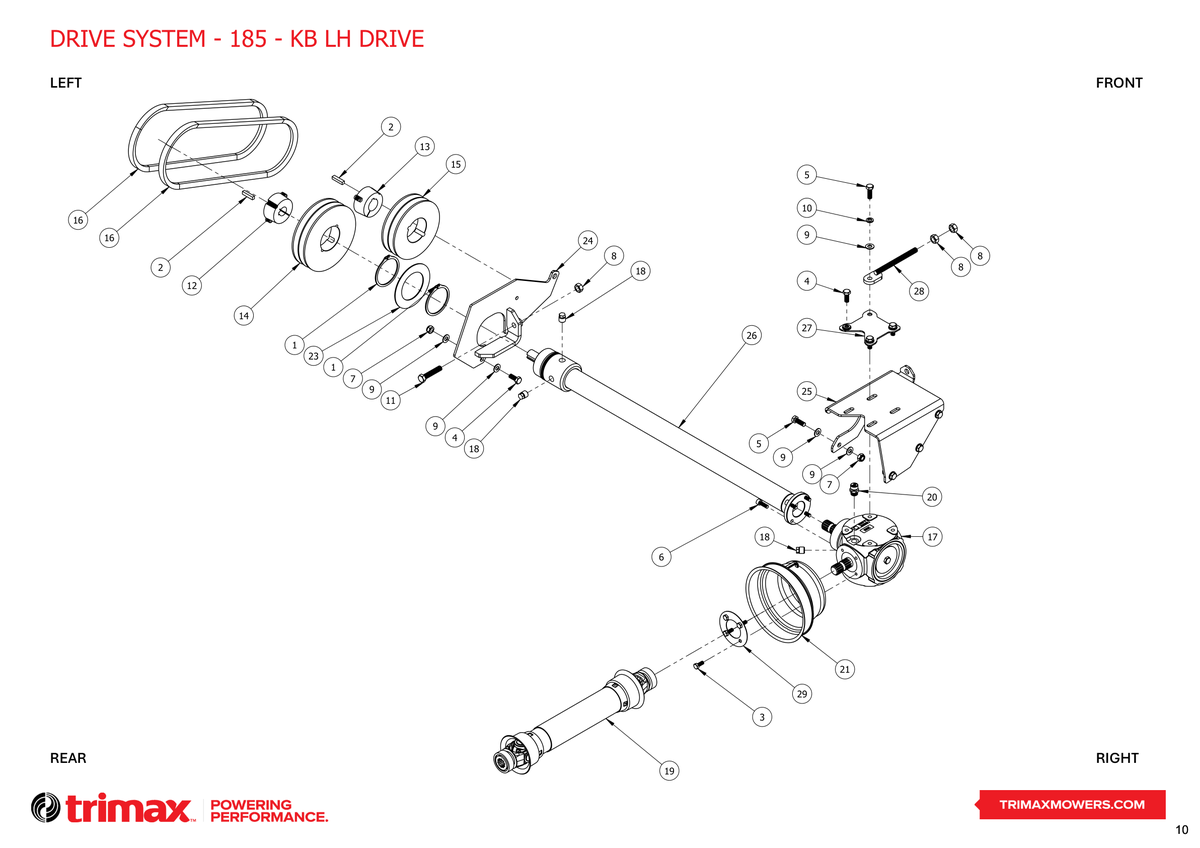

752 - Flaildek S4 - 185 - Drive System KB LH Drive

FlailDek S4 185

Grouped product items
No. Image Product Name Price Quantity
1 Circlip - External - 75mm [204-000-008] Circlip - External - 75mm 204-000-008
Price on Request
2 Key [205-000-004] Key 205-000-004
Price on Request
3 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
4 Bolt - Hex Head - M10 x 25 - Trimax Specification [301-210-253] Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253
US$0.47
5 Bolt - Hex Head - M10 x 30 - Trimax Specification [301-210-303] Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303
US$0.50
6 Cap Screw - Socket Head - M8 x 25 - Trimax Specification [303-208-253] Cap Screw - Socket Head - M8 x 25 - Trimax Specification 303-208-253
US$0.72
7 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
8 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
9 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
10 Washer - Spring [308-100-043] Washer - Spring 308-100-043
US$0.29
11 Set Screw [313-212-603] Set Screw 313-212-603
Price on Request
12 Bush - Taperlock - Trimax Specification [402-000-141] Bush - Taperlock - Trimax Specification 402-000-141
Price on Request
13 Bush - Taper Lock [402-060-670] Bush - Taper Lock 402-060-670
Price on Request
14 Pulley - Taperlock - Trimax Specification [403-000-144] Pulley - Taperlock - Trimax Specification 403-000-144
Price on Request
15 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
16 Vee Belt - Trimax Specification [404-040-430] Vee Belt - Trimax Specification 404-040-430
US$30.35
17 Kubota Gearbox [405-200-080] Kubota Gearbox 405-200-080
US$1,316.08
18 Oil Plug - Hex Head - Trimax Specification [405-207-211] Oil Plug - Hex Head - Trimax Specification 405-207-211
US$10.84
19 Kubota Driveshaft [406-339-002] Kubota Driveshaft 406-339-002
US$873.28
20 Breather - Capped 3/8" BSP [408-000-083] Breather - Capped 3/8" BSP 408-000-083
US$14.18
21 Cone [410-440-409] Cone 410-440-409
Price on Request
22 Decal - PTO Rotation - CW [424-000-331] Decal - PTO Rotation - CW 424-000-331
Price on Request
23 Extension Shaft Hole Cover Zinc Plated [430-000-003] Extension Shaft Hole Cover Zinc Plated 430-000-003
Price on Request
24 Endplate - Drive End - Bolt On - Weldment - LH Drive [435-000-056] Endplate - Drive End - Bolt On - Weldment - LH Drive 435-000-056
Price on Request
25 Gearbox Mount Folding - LH Drive [435-000-061] Gearbox Mount Folding - LH Drive 435-000-061
Price on Request
26 Extension Shaft - Assembly - 185 - 886 - FDS4 [440-000-065] Extension Shaft - Assembly - 185 - 886 - FDS4 440-000-065
Price on Request
27 Gearbox Adjuster - Plate [440-000-074] Gearbox Adjuster - Plate 440-000-074
Price on Request
28 Tensioner Adjustment Weldment [440-000-076] Tensioner Adjustment Weldment 440-000-076
Price on Request
29 Plate - PTO Cone Retainer [450-440-381] Plate - PTO Cone Retainer 450-440-381
US$6.77
