NOTES:

Part # Number on image Usage Notes
560-000-011 11
  • FOR ROTOR - SPIRAL - ASSEMBLY - 185 - RH DRIVE USE P/N: 560-000-012

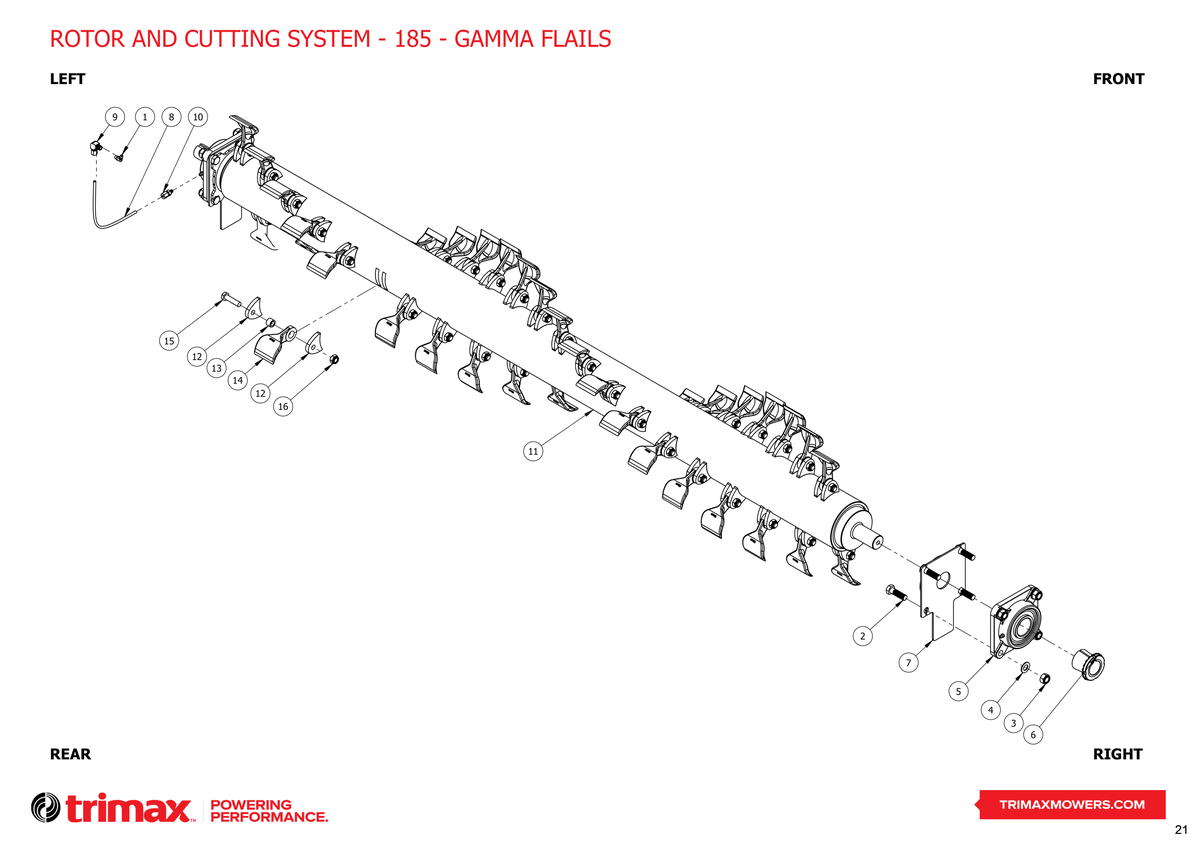

752 - Flaildek S4 - 185 - Rotor and Cutting System Gamma Flails

FlailDek S4 185

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple - Trimax Specification [208-442-620] Grease Nipple - Trimax Specification 208-442-620
US$4.02
2 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
3 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
4 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
5 Rotor Bearing Assembly - Trimax Specification - [401-000-001] Rotor Bearing Assembly - Trimax Specification - 401-000-001
US$76.50
6 Tapered Locking Assembly [401-021-150] Tapered Locking Assembly 401-021-150
US$36.34
7 Rotor Shield - Weldment [435-000-152] Rotor Shield - Weldment 435-000-152
Price on Request
8 Grease Line - Plastic ��4.5 [450-000-011] Grease Line - Plastic ��4.5 450-000-011
Price on Request
9 Fitting - Grease Line [450-152-822] Fitting - Grease Line 450-152-822
US$38.51
10 Fitting - Grease Line [450-152-892] Fitting - Grease Line 450-152-892
US$24.48
11 Rotor - Spiral - Assembly - 185 - LH Drive [560-000-011] Rotor - Spiral - Assembly - 185 - LH Drive i See notes section for usage notes on this part 560-000-011
Price on Request
12 Flail Lug [411-240-011] Flail Lug 411-240-011
Price on Request
13 Flail Mounting Bush - 10mm - Trimax Specification - [402-060-750] Flail Mounting Bush - 10mm - Trimax Specification - 402-060-750
US$3.19
14 Flail - Forged Flail - Ezeemow and Flaildek - Trimax Specification [411-160-105] Flail - Forged Flail - Ezeemow and Flaildek - Trimax Specification 411-160-105
US$20.90
15 Bolt - Hex Head M10 x 40 - Trimax Specification - [305-210-403] Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403
US$1.98
16 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
