NOTES:

Part # Number on image Usage Notes
435-000-066 38
  • REQUIRED FOR JOHN DEERE 1580 POWER UNITS
435-000-068 39
  • REQUIRED FOR JOHN DEERE 1580 POWER UNITS

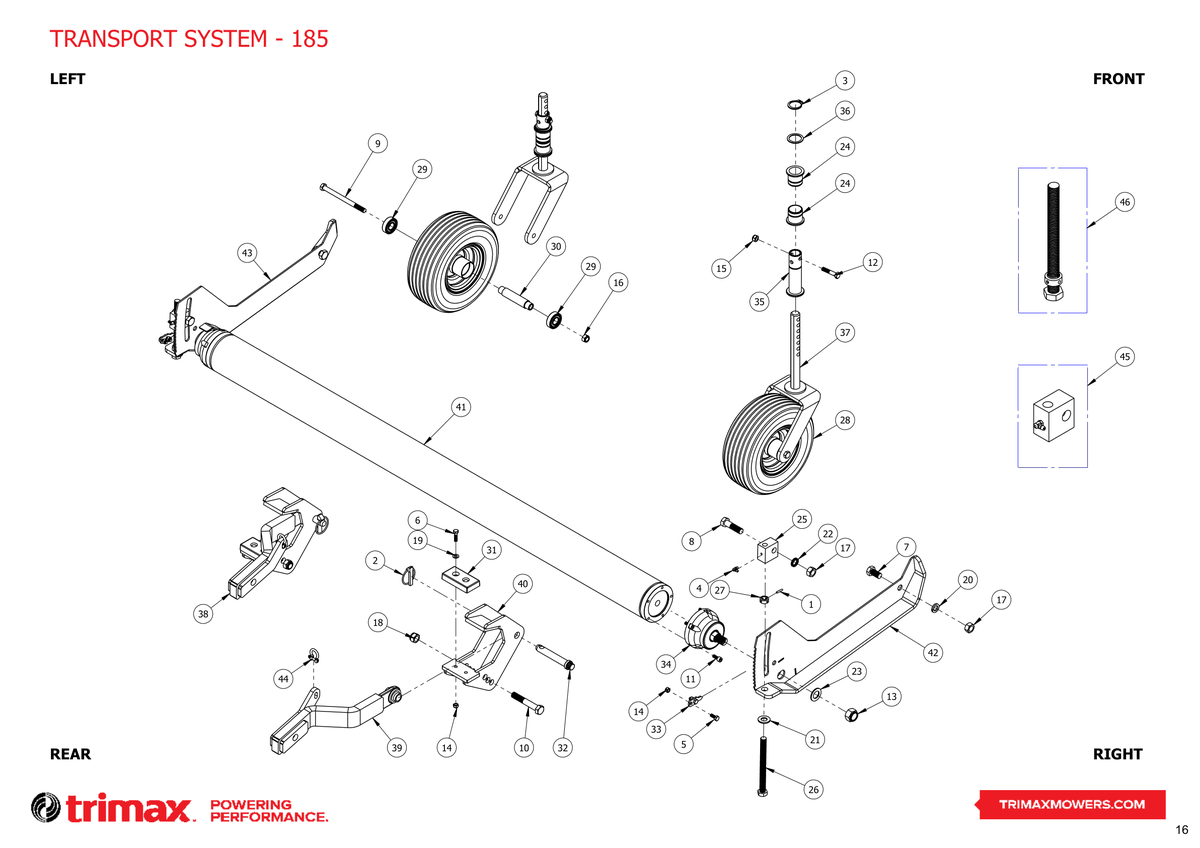

752 - Flaildek S4 - 185 - Transport System

FlailDek S4 185

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin 202-447-980
US$2.10
2 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
3 Circlip/Snap Ring - External [204-820-353] Circlip/Snap Ring - External 204-820-353
Price on Request
4 Grease Nipple - Trimax Specification [208-442-650] Grease Nipple - Trimax Specification 208-442-650
US$4.76
5 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
US$1.05
6 Bolt - Hex Head - M8 x 30 - Trimax Specification [301-208-303] Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303
US$0.29
7 Bolt - Hex Head - M16 x 30 - Trimax Specification [301-216-303] Bolt - Hex Head - M16 x 30 - Trimax Specification 301-216-303
US$1.77
8 Bolt - Hex Head - M16 x 60 - Trimax Specification [301-216-603] Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603
US$1.74
9 Bolt - Hex Head - M12 x 160 - Trimax Specification [301-612-163] Bolt - Hex Head - M12 x 160 - Trimax Specification 301-612-163
US$5.68
10 Bolt - Hex Head - M16 x 100 - Trimax Specification [301-616-103] Bolt - Hex Head - M16 x 100 - Trimax Specification 301-616-103
US$10.87
11 Cap Screw - Socket Head - M8 x 20 [303-208-203] Cap Screw - Socket Head - M8 x 20 303-208-203
Price on Request
12 Bolt - Hex Head - M10 x 50 [304-210-503] Bolt - Hex Head - M10 x 50 304-210-503
Price on Request
13 Nut - Hex Nyloc - M22 x 1.5 [307-122-053] Nut - Hex Nyloc - M22 x 1.5 307-122-053
US$8.98
14 Nut - Nyloc [307-208-053] Nut - Nyloc 307-208-053
US$1.34
15 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
16 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
17 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
18 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - 307-216-053
US$1.05
19 Washer - Flat [308-080-013] Washer - Flat 308-080-013
US$1.34
20 Washer - Spring [308-160-043] Washer - Spring 308-160-043
US$0.60
21 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
22 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - 308-160-083
US$5.62
23 Washer [308-220-013] Washer 308-220-013
Price on Request
24 Bush - Pivot [402-000-158] Bush - Pivot 402-000-158
Price on Request
25 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
US$58.77
26 Set Screw [412-000-610] Set Screw 412-000-610
Price on Request
27 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
US$22.17
28 Wheel - Semi Pneumatic [416-000-076] Wheel - Semi Pneumatic 416-000-076
US$175.72
29 Bearing - Trimax Specification [401-000-047] Bearing - Trimax Specification 401-000-047
Price on Request
30 Sleeve - Castor Axle Ø13 X Ø24 X 120 [402-000-155] Sleeve - Castor Axle Ø13 X Ø24 X 120 402-000-155
Price on Request
31 Pad [417-153-140] Pad 417-153-140
US$36.66
32 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
US$13.68
33 Height Indicator Bracket Zinc Plated [430-000-005] Height Indicator Bracket Zinc Plated 430-000-005
Price on Request
34 Bearing Assembly - Maintenance Free [430-000-054] Bearing Assembly - Maintenance Free 430-000-054
Price on Request
35 Castor Boss - Zinc Plated [435-000-029] Castor Boss - Zinc Plated 435-000-029
Price on Request
36 Castor Retaining Ring Zinc Plated [435-000-033] Castor Retaining Ring Zinc Plated 435-000-033
Price on Request
37 Castor Stem Weldment - Zinc Plated [435-000-034] Castor Stem Weldment - Zinc Plated 435-000-034
Price on Request
38 JD Link Arm - Weldment - LH [435-000-066] JD Link Arm - Weldment - LH i See notes section for usage notes on this part 435-000-066
Price on Request
39 JD Link Arm - Weldment - RH [435-000-068] JD Link Arm - Weldment - RH i See notes section for usage notes on this part 435-000-068
Price on Request
40 Linkage Adjuster - Weldment [435-000-110] Linkage Adjuster - Weldment 435-000-110
Price on Request
41 Roller Weldment - 4" Roller - Flaildek - 185 [435-000-159] Roller Weldment - 4" Roller - Flaildek - 185 435-000-159
Price on Request
42 Skid - Weldment - RH [435-000-170] Skid - Weldment - RH 435-000-170
Price on Request
43 Skid - Weldment - LH [435-000-173] Skid - Weldment - LH 435-000-173
Price on Request
44 Bow Shackle - Stainless - Ø6mm [214-446-250] Bow Shackle - Stainless - Ø6mm 214-446-250
US$2.98
45 Height Adjuster Block with Grease Nipple [412-330-280] Height Adjuster Block with Grease Nipple 412-330-280
Price on Request
46 Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 [412-152-420] Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2 412-152-420
US$45.02
