NOTES:

Part #	Number on image	Usage Notes
412-000-128	11	Heavy duty trailing arm with wear skid available as option P/N 412-000-260
412-000-129	12	Heavy duty trailing arm with wear skid available as option P/N 412-000-261

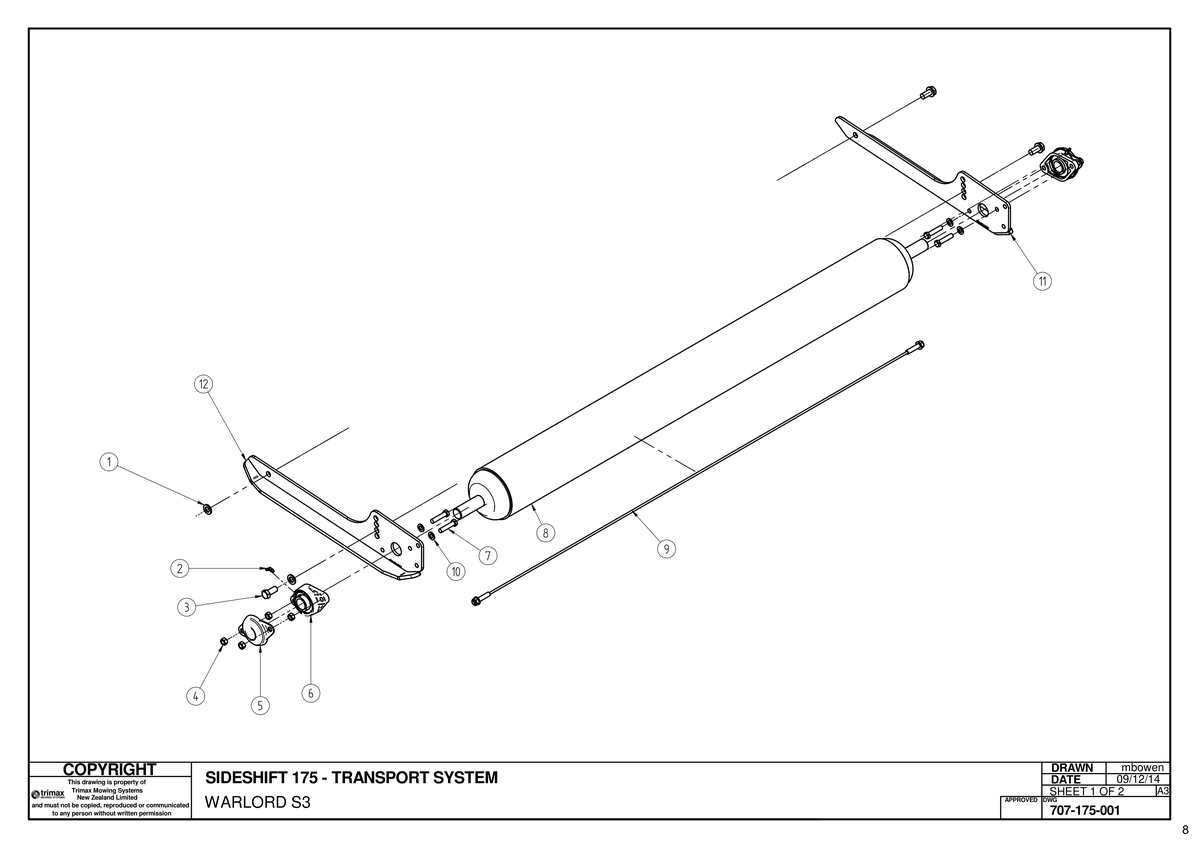

753 - Warlord S3 175 - Transport System

Warlord S3 175

Grouped product items
No.	Product Name	Price
1	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
2	Grease Nipple - Trimax Specification 208-442-620 More Info >	US$4.02
3	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	US$6.85
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
5	Cap 410-464-072 More Info >	US$24.48
6	Roller Bearing Assembly - Trimax Specification 401-020-701 More Info >	US$63.00
7	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	US$1.07
8	Roller Weldment 175 414-480-460 More Info >	US$651.89
9	Roller Scraper 404-480-463 More Info >	US$66.58
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
11	Trailing Arm Weldment - RH i See notes section for usage notes on this part 412-000-128 More Info >	US$86.49
12	Trailing Arm Weldment - LH i See notes section for usage notes on this part 412-000-129 More Info >	US$86.49
