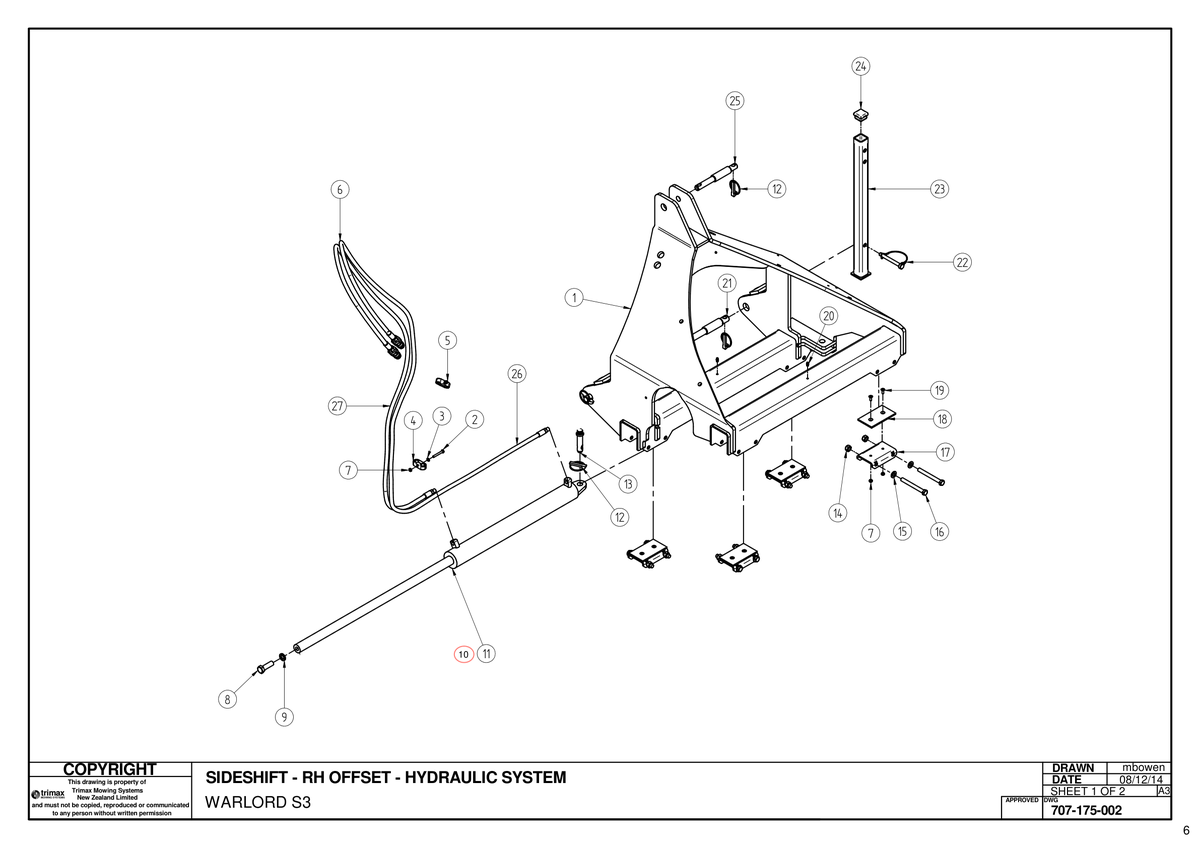

753 - Warlord S3 205 - Hydraulic System

Warlord S3 205

Grouped product items
No.	Product Name	Price
1	Headstock - RH Offset WL3 413-000-080 More Info >	US$1,901.08
2	Bolt 301-206-453 More Info >	US$0.15
3	Washer - Flat 308-060-013 More Info >	US$0.05
4	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	US$8.34
5	Bolt 301-206-403 More Info >	US$0.19
6	Hydraulic Hose Kit 409-448-703 More Info >	US$258.42
7	Nut - Nyloc 307-206-053 More Info >	US$0.10
8	Bolt 301-216-503 More Info >	US$4.33
9	Washer - Spring 308-160-043 More Info >	US$0.60
10	Seal Kit - Side Shift 408-000-062 More Info >	US$113.62
11	Hydraulic Cylinder - Sideshift 409-845-260 More Info >	US$859.82
12	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	US$2.23
13	Pin - Top Link 419-000-023 More Info >	US$29.58
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
16	Bolt 301-212-113 More Info >	Price on Request
17	Slide Plate - Side Shift 413-000-086 More Info >	US$8.04
18	Slide Pad - Side Shift 413-000-087 More Info >	US$28.56
19	Countersunk Screw 302-206-165 More Info >	US$1.09
20	Grease Nipple - 1/4" Short 208-442-600 More Info >	US$3.72
21	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	US$25.34
22	Pin 406-346-410 More Info >	US$6.17
23	Stand - Front 413-000-073 More Info >	US$75.54
24	Cap - Tube Insert Square 209-480-661 More Info >	US$21.88
25	Pin - Linkage - Upper Dual Cat. 419-300-800 More Info >	US$22.92
26	Hydraulic Hose 409-000-067 More Info >	US$74.33
27	Hydraulic Hose 409-000-068 More Info >	US$82.97
