NOTES:

Part # Number on image Usage Notes
412-000-128 11
  • Heavy duty trailing arm with wear skid available as option P/N 412-000-260
412-000-129 12
  • Heavy duty trailing arm with wear skid available as option P/N 412-000-261

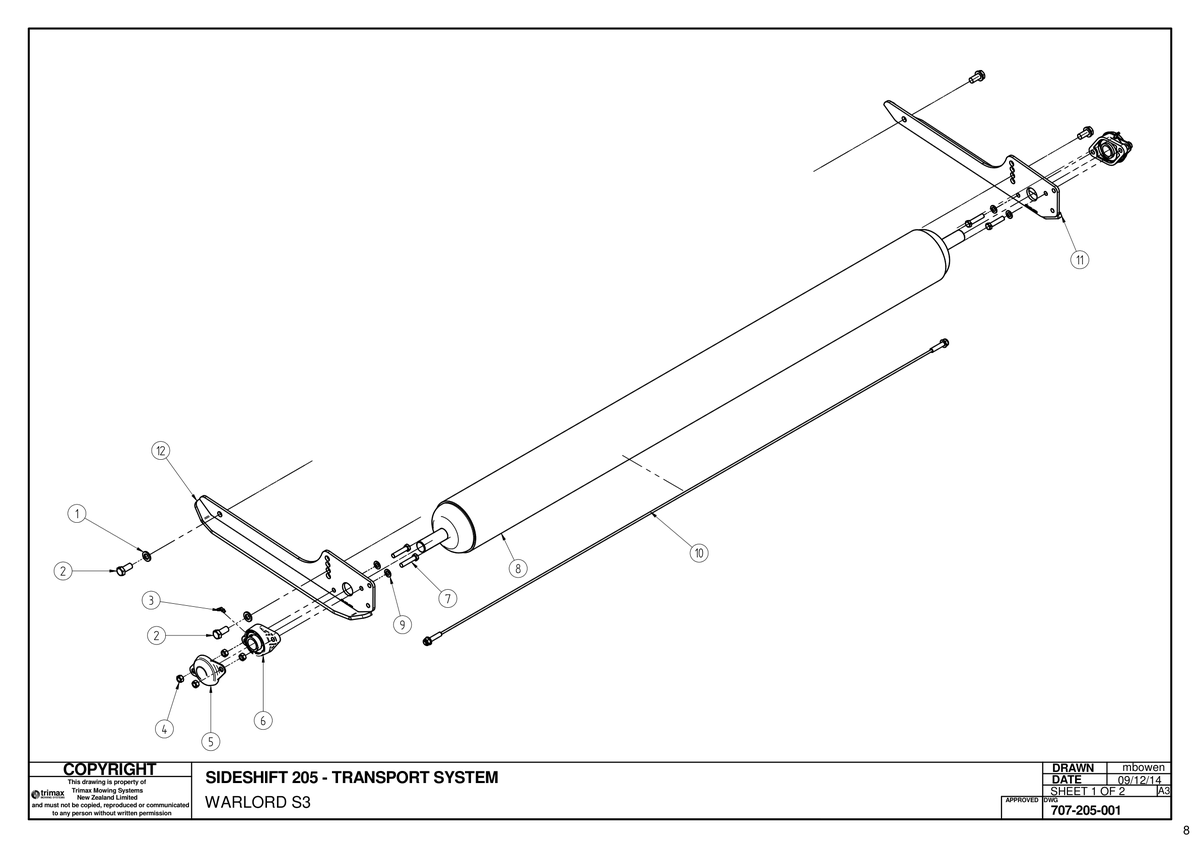

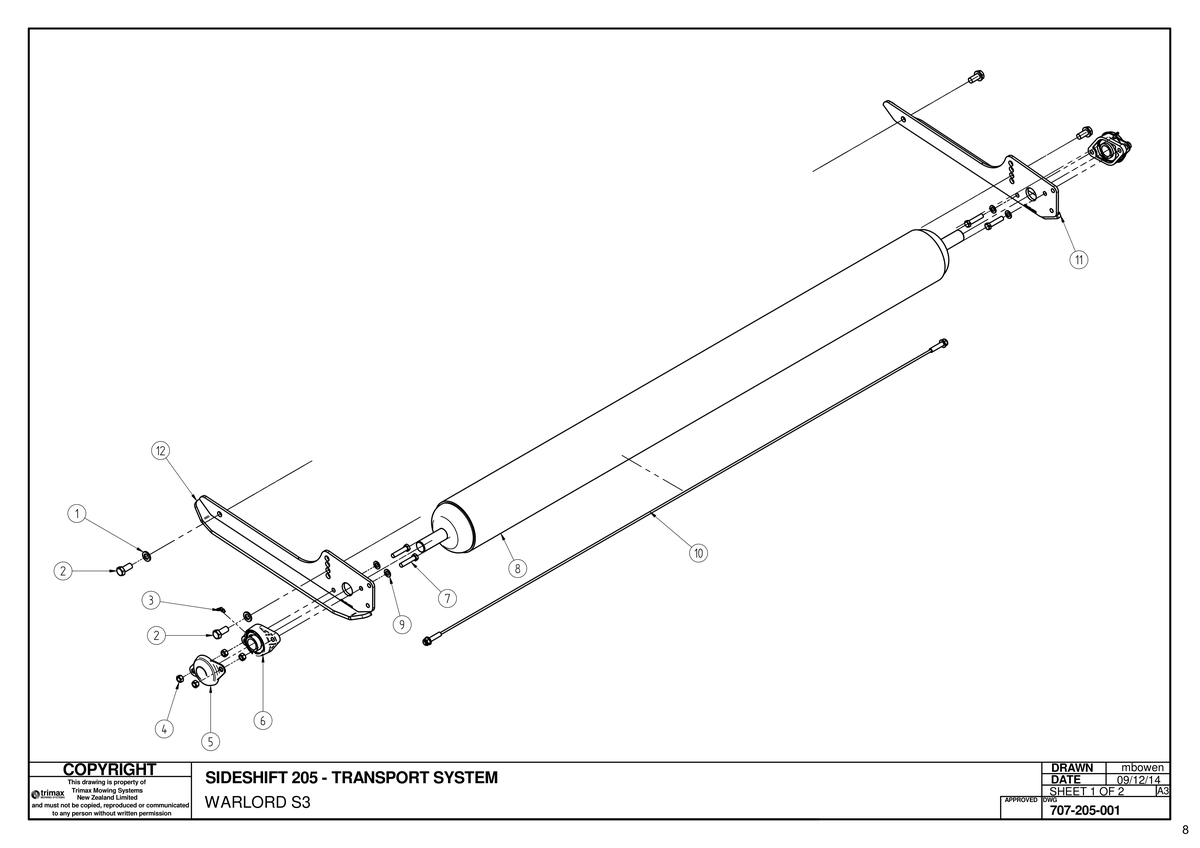

753 - Warlord S3 205 - Transport System

Warlord S3 205

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
US$5.62
2 Bolt [301-216-353] Bolt 301-216-353
US$6.85
3 Grease Nipple [208-442-620] Grease Nipple 208-442-620
US$4.02
4 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
5 Cap [410-464-072] Cap 410-464-072
US$24.48
6 Bearing Assembly [401-020-701] Bearing Assembly 401-020-701
US$51.75
7 Bolt [301-212-553] Bolt 301-212-553
US$1.07
8 Roller Weldment 205 [414-480-470] Roller Weldment 205 414-480-470
US$609.13
9 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
10 Roller Scraper [404-480-473] Roller Scraper 404-480-473
US$82.00
11 Trailing Arm Weldment - RH [412-000-128] Trailing Arm Weldment - RH i See notes section for usage notes on this part 412-000-128
US$86.49
12 Trailing Arm Weldment - LH [412-000-129] Trailing Arm Weldment - LH i See notes section for usage notes on this part 412-000-129
US$86.49
