NOTES:

Part #	Number on image	Usage Notes
405-200-721	15	For RH offset use standard rotation gearbox: 405-200-720

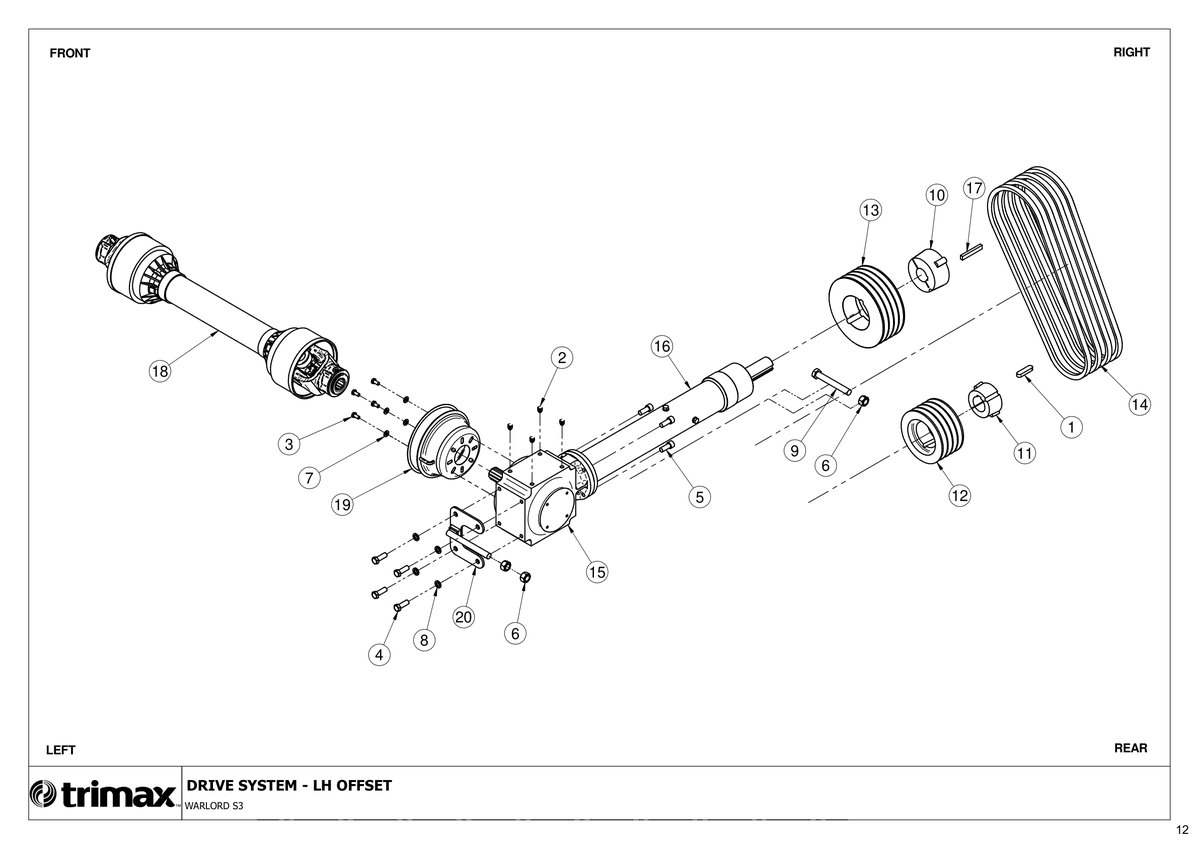

753 - Warlord S3 235 - Drive System - LH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
1	Key - Trimax Specification 205-425-920 More Info >	US$12.21
2	Blanking Plug - M12 209-900-012 More Info >	US$0.35
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	US$1.05
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	US$2.98
5	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	US$1.90
6	Nut - Plain 307-216-013 More Info >	US$1.05
7	Washer - Flat 308-080-016 More Info >	US$0.25
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
9	Set Screw 313-616-123 More Info >	US$20.88
10	Bush - Taper Lock - Trimax Specification 402-060-710 More Info >	US$81.18
11	Bush - Taper Lock - Trimax Specification 402-060-730 More Info >	US$64.08
12	Pulley - Taper Lock 403-361-180 More Info >	US$143.26
13	Pulley - Taper Lock 403-361-270 More Info >	US$240.93
14	Vee Belt - Trimax Specification 404-040-512 More Info >	US$77.96
15	Gearbox - Counter Rotation - 540rpm i See notes section for usage notes on this part 405-200-721 More Info >	US$1,099.41
16	Extension Shaft Assembly - Gearbox 405-201-780 More Info >	US$622.41
17	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	US$11.39
18	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	US$461.24
19	Cone - PTO Holes Punched 410-440-402 More Info >	US$25.22
20	Adjuster 417-000-428 More Info >	US$12.36
