NOTES:

Part #	Number on image	Usage Notes
401-022-490	10	Lower Bearing Notes: Early gearboxes use 401-022-500 (Gearbox 31175300) Later gearboxes use 401-022-490 ( Gearbox 9.311.330.00) 401-022-490 can be retro-fitted into early gearboxes

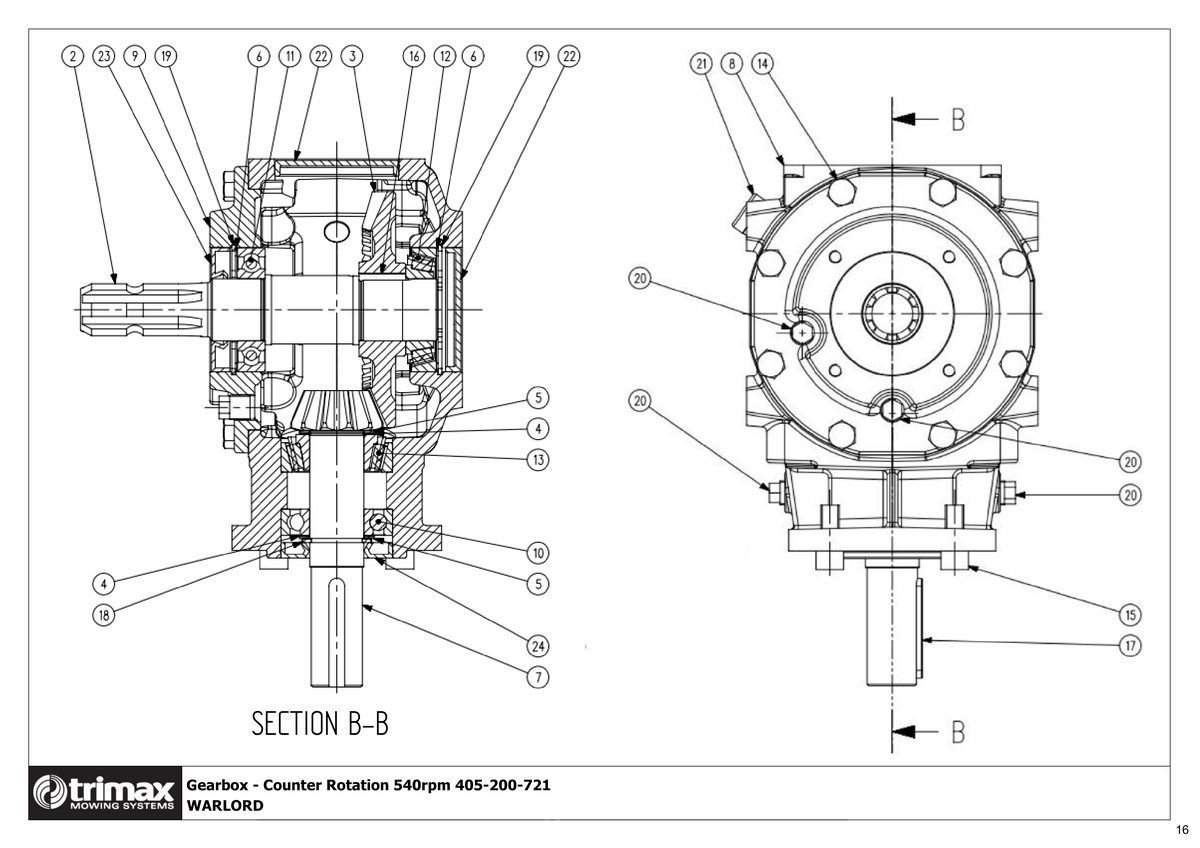

753 - Warlord S3 235 - Gearbox - Counter Rotation (LH Offset)

Warlord S3 235

Grouped product items
No.	Product Name	Price
2	Input Shaft - Gearbox 405-203-252 More Info >	Price on Request
3	Gearbox - Crownwheel Gear 405-205-220 More Info >	US$940.93
4	Gearbox - Shim 405-206-220 More Info >	US$2.53
5	Gearbox - Shim 405-206-221 More Info >	US$1.33
6	Gearbox - Shim 405-206-140 More Info >	US$12.50
7	Oil Seal - 35x72x10 422-380-300 More Info >	US$38.55
8	Housing 405-207-153 More Info >	Price on Request
9	Cover - Input Shaft - Gearbox 405-207-152 More Info >	US$68.91
10	Bearing i See notes section for usage notes on this part 401-022-490 More Info >	US$70.00
11	Bearing 401-022-400 More Info >	US$86.00
12	Bearing 401-022-510 More Info >	US$106.00
13	Bearing 401-022-520 More Info >	US$90.00
14	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	US$0.47
15	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	US$3.13
16	Key - Gearbox 405-425-960 More Info >	US$10.35
17	Key - Gearbox 405-207-154 More Info >	US$10.29
18	Heavy Duty Circlip - Internal 204-440-917 More Info >	US$14.64
19	Circlip/Snap Ring 204-446-193 More Info >	US$9.97
20	Oil Plug - Hex Head - Trimax Specification 405-207-211 More Info >	US$10.84
21	Gearbox - Breather 405-207-207 More Info >	US$21.66
22	Cap - Gearbox 405-207-151 More Info >	US$27.44
23	Oil Seal 422-381-000 More Info >	US$29.31
