NOTES:

Part #	Number on image	Usage Notes
401-022-490	15	Lower Bearing Notes: Early gearboxes use 401-022-500 (Gearbox 31175300) Later gearboxes use 401-022-490 ( Gearbox 9.311.330.00) 401-022-490 can be retro-fitted into early gearboxes

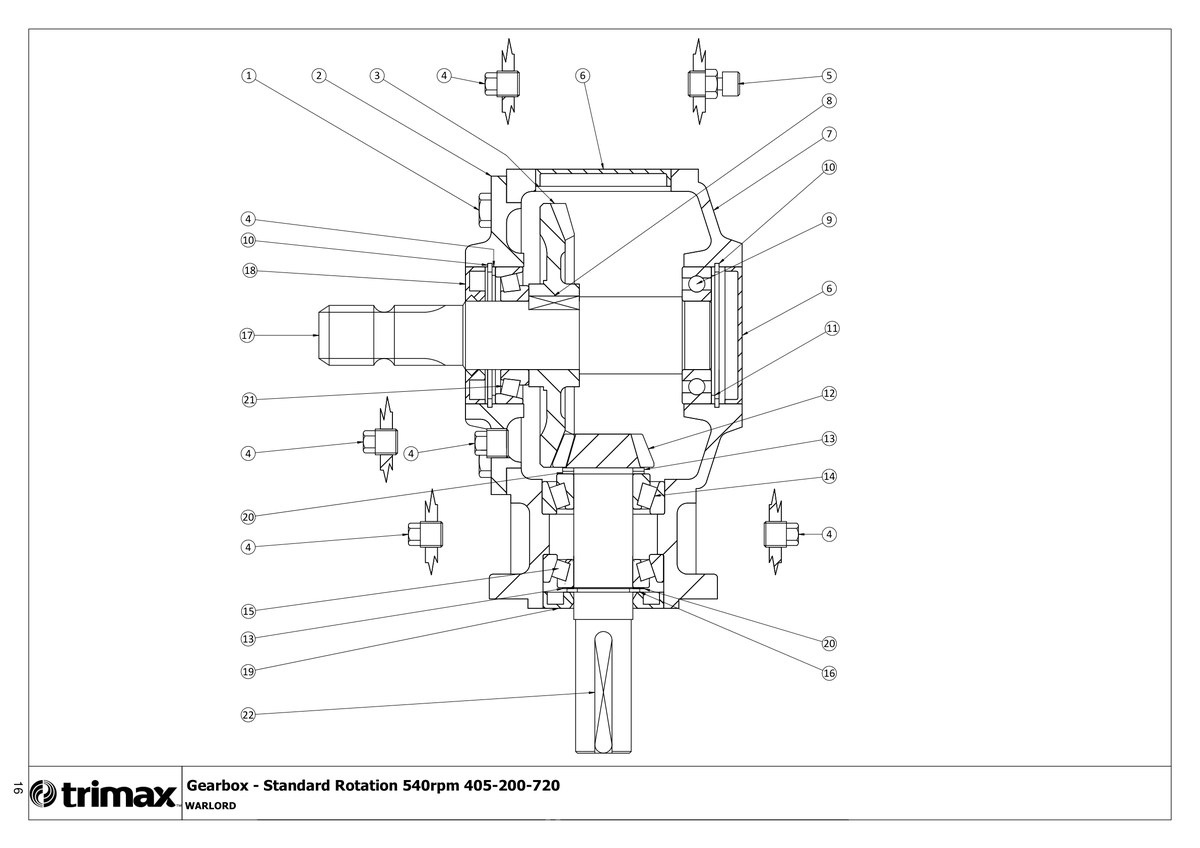

753 - Warlord S3 235 - Gearbox - Standard Rotation 540rpm

Warlord S3 235

Grouped product items
No.	Product Name	Price
1	Bolt 301-210-253 More Info >	US$0.47
2	Cover - Input Shaft - Gearbox 405-207-152 More Info >	US$68.91
3	Gearbox - Crownwheel Gear 405-205-220 More Info >	US$940.93
4	Oil Plug - Hex Head 3/8" (Trimax Specification) 405-207-211 More Info >	US$10.84
5	Gearbox - Breather 405-207-207 More Info >	US$21.66
6	Cap - Gearbox Ø80x10 405-207-151 More Info >	US$27.44
7	Housing 405-207-153 More Info >	Price on Request
8	Key - Gearbox 405-425-960 More Info >	US$10.35
9	Bearing 401-022-400 More Info >	US$76.84
10	Circlip/Snap Ring 204-446-193 More Info >	US$9.97
11	Gearbox - Shim Ø79.7x0.5 405-206-140 More Info >	US$12.50
12	Gearbox - Output Shaft 405-204-250 More Info >	US$546.66
13	Shim - Gearbox 405-206-201 More Info >	US$2.60
14	Bearing 401-022-520 More Info >	US$82.41
15	Bearing i See notes section for usage notes on this part 401-022-490 More Info >	US$69.02
16	Heavy Duty Circlip - Internal 204-440-917 More Info >	US$14.64
17	Input Shaft - Gearbox 405-203-250 More Info >	US$327.99
18	Oil Seal 422-381-000 More Info >	US$29.31
19	Oil Seal - 35x72x10 422-380-300 More Info >	US$38.55
20	Gearbox - Shim 405-206-220 More Info >	US$2.53
21	Bearing 401-022-510 More Info >	US$96.37
22	Key - Gearbox 405-207-154 More Info >	US$10.29
