NOTES:

Part # Number on image Usage Notes
412-000-128 10
  • Heavy duty trailing arm with wear skid available as option P/N 412-000-260
412-000-129 11
  • Heavy duty trailing arm with wear skid available as option P/N 412-000-261

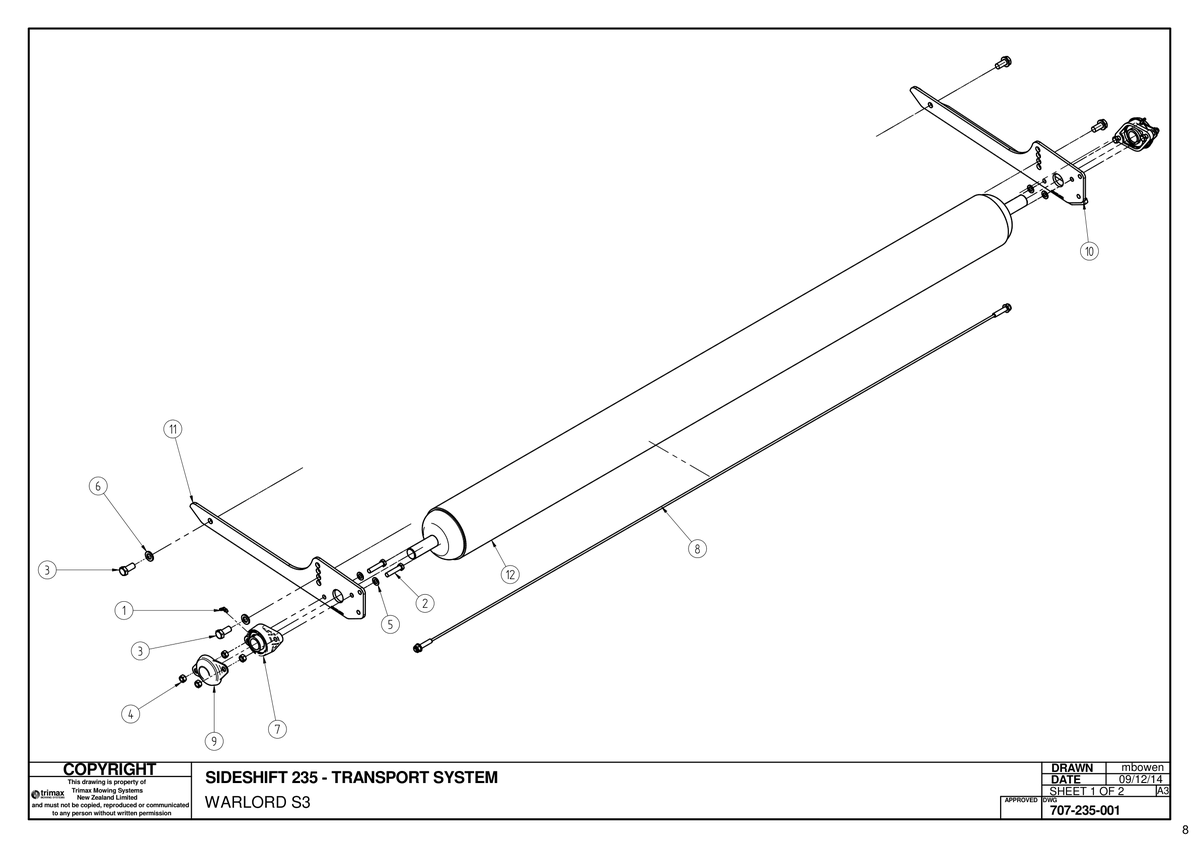

753 - Warlord S3 235 - Transport System 235

Warlord S3 235

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-620] Grease Nipple 208-442-620
US$4.02
2 Bolt [301-212-553] Bolt 301-212-553
US$1.07
3 Bolt [301-216-353] Bolt 301-216-353
US$6.85
4 Nut - Plain [307-212-013] Nut - Plain 307-212-013
US$0.60
5 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
6 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
US$5.62
7 Bearing Assembly [401-020-701] Bearing Assembly 401-020-701
US$51.75
8 Roller Scraper [404-480-483] Roller Scraper 404-480-483
US$82.00
9 Cap [410-464-072] Cap 410-464-072
US$24.48
10 Trailing Arm Weldment - RH [412-000-128] Trailing Arm Weldment - RH i See notes section for usage notes on this part 412-000-128
US$86.49
11 Trailing Arm Weldment - LH [412-000-129] Trailing Arm Weldment - LH i See notes section for usage notes on this part 412-000-129
US$86.49
12 Roller Weldment 235 [414-480-480] Roller Weldment 235 414-480-480
US$609.13
