NOTES:

Part #	Number on image	Usage Notes
306-216-705	11	Flail Bolt and nut combination supplied under part number 306-216-705, use part number 307-216-053 for nut only
411-480-643	12	Use part number 411-000-029 for TACA coated flail option

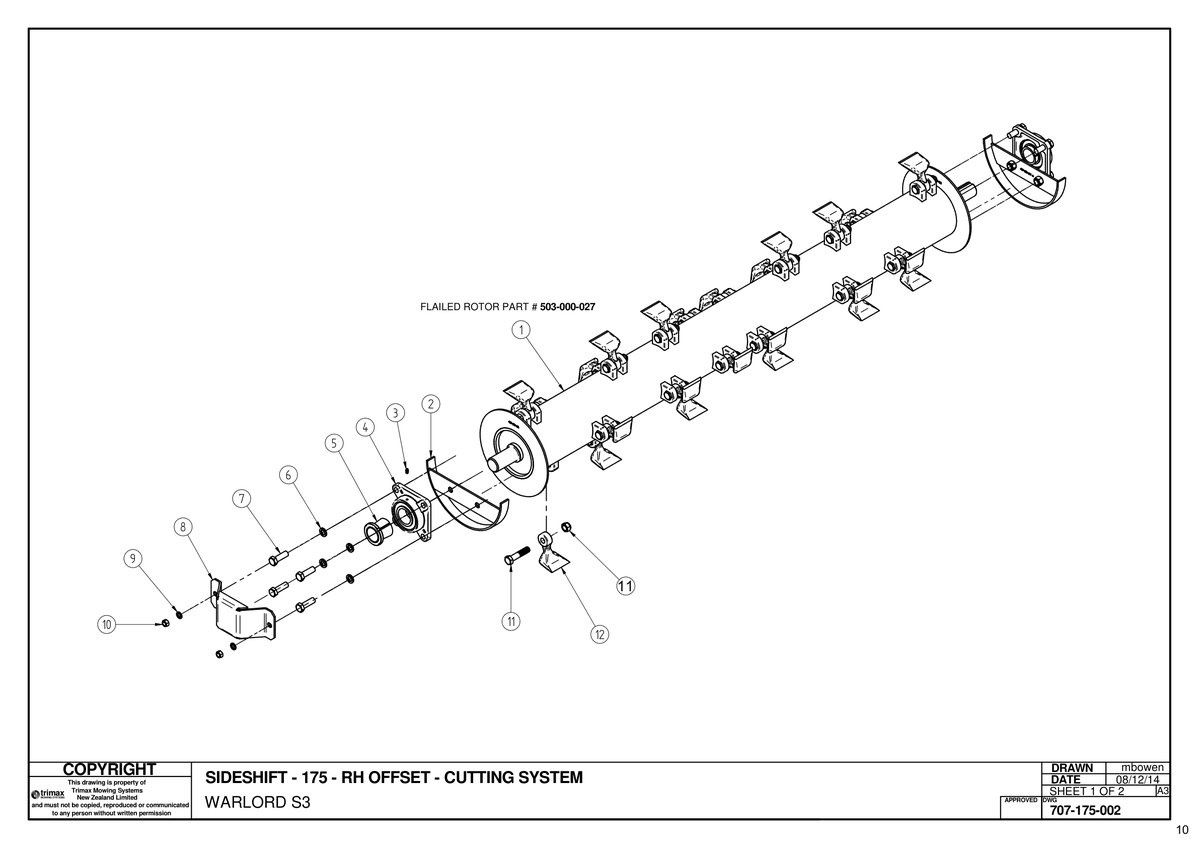

753 - Warlord S3 RH 175 - Warlord S3 Cutting System - 175 RH Offset

Warlord S3 RH 175

Grouped product items
No.	Product Name	Price
2	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	US$40.10
3	Grease Nipple 208-442-600 More Info >	US$3.72
4	Bearing Assembly 401-000-002 More Info >	US$95.63
5	Sleeve - Taper 401-021-230 More Info >	US$42.29
6	Washer 308-160-043 More Info >	US$0.60
7	Bolt 301-216-503 More Info >	US$4.33
8	Bearing Guard 410-460-302 More Info >	Price on Request
9	Washer - Spring 308-120-043 More Info >	US$0.60
10	Nut - Plain 307-212-013 More Info >	US$0.60
11	Bolt - c/w Nyloc Nut i See notes section for usage notes on this part 306-216-705 More Info >	US$6.75
12	Flail - Forged i See notes section for usage notes on this part 411-480-643 More Info >	US$16.68
