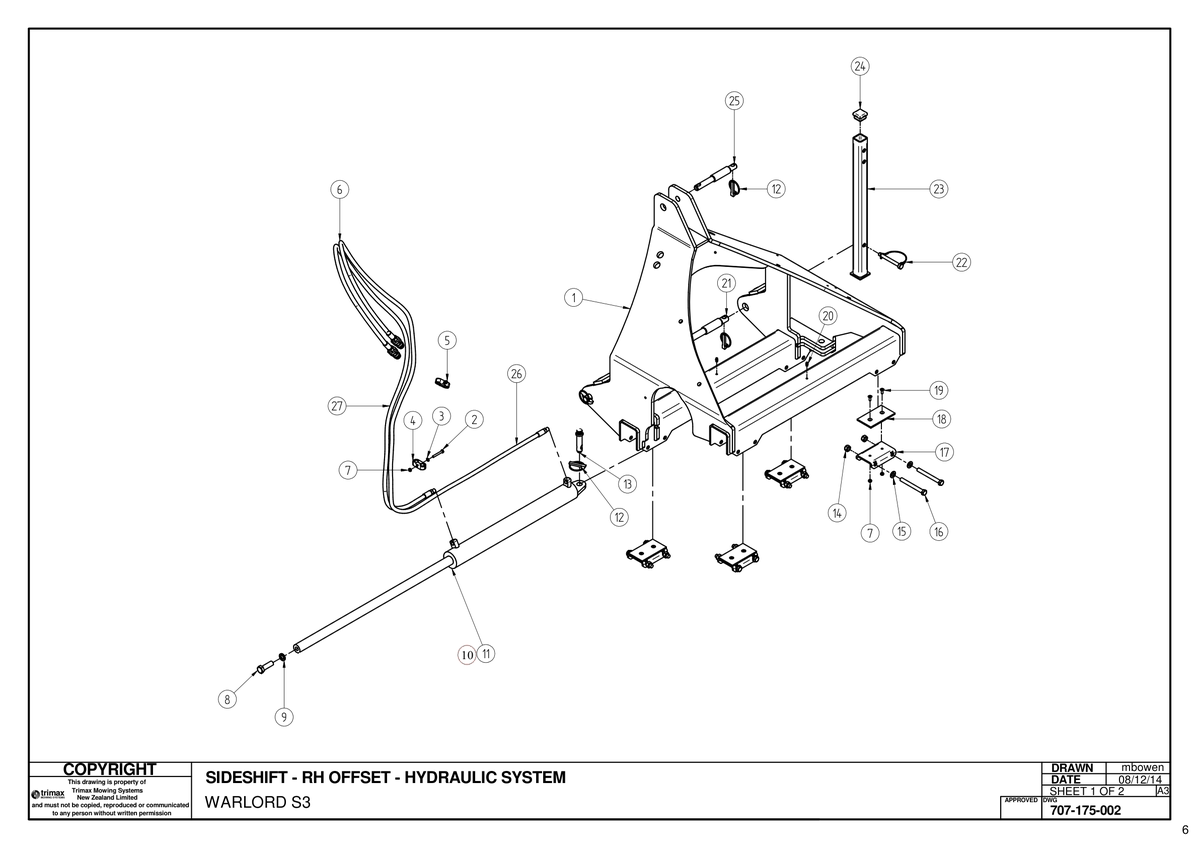

753 - Warlord S3 RH 175 - Warlord S3 Hydraulic System - RH Offset

Warlord S3 RH 175

Grouped product items
No. Image Product Name Price Quantity
2 Bolt [301-206-453] Bolt 301-206-453
US$0.15
3 Washer - Flat [308-060-013] Washer - Flat 308-060-013
US$0.05
4 Double Hose Clamp [408-000-055] Double Hose Clamp 408-000-055
US$8.34
5 Bolt [301-206-403] Bolt 301-206-403
US$0.19
6 Hydraulic Hose Kit [409-448-703] Hydraulic Hose Kit 409-448-703
US$258.42
7 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
8 Bolt [301-216-503] Bolt 301-216-503
US$4.33
9 Washer [308-160-043] Washer 308-160-043
US$0.60
10 Seal Kit - Hydraulic Cylinder - Side Shift [408-000-062] Seal Kit - Hydraulic Cylinder - Side Shift 408-000-062
US$113.62
11 Hydraulic Cylinder - Sideshift [409-845-260] Hydraulic Cylinder - Sideshift 409-845-260
US$859.82
12 Linch Pin [203-300-700] Linch Pin 203-300-700
US$2.23
13 Pin - Top Link [419-000-023] Pin - Top Link 419-000-023
US$29.58
14 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
15 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
16 Bolt [301-212-113] Bolt 301-212-113
Price on Request
17 Slide Plate - Side Shift [413-000-086] Slide Plate - Side Shift 413-000-086
US$8.04
18 Slide Pad - Side Shift [413-000-087] Slide Pad - Side Shift 413-000-087
US$28.56
19 Countersunk Screw [302-206-165] Countersunk Screw 302-206-165
US$1.09
20 Grease Nipple [208-442-600] Grease Nipple 208-442-600
US$3.72
21 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
22 Pin [406-346-410] Pin 406-346-410
US$6.17
23 Stand - Front [413-000-073] Stand - Front 413-000-073
US$75.54
24 Cap - Tube Insert Square [209-480-661] Cap - Tube Insert Square 209-480-661
US$21.88
25 Pin - Linkage - Upper Dual Cat. [419-300-800] Pin - Linkage - Upper Dual Cat. 419-300-800
US$22.92
27 Hydraulic Hose [409-000-068] Hydraulic Hose 409-000-068
US$82.97
