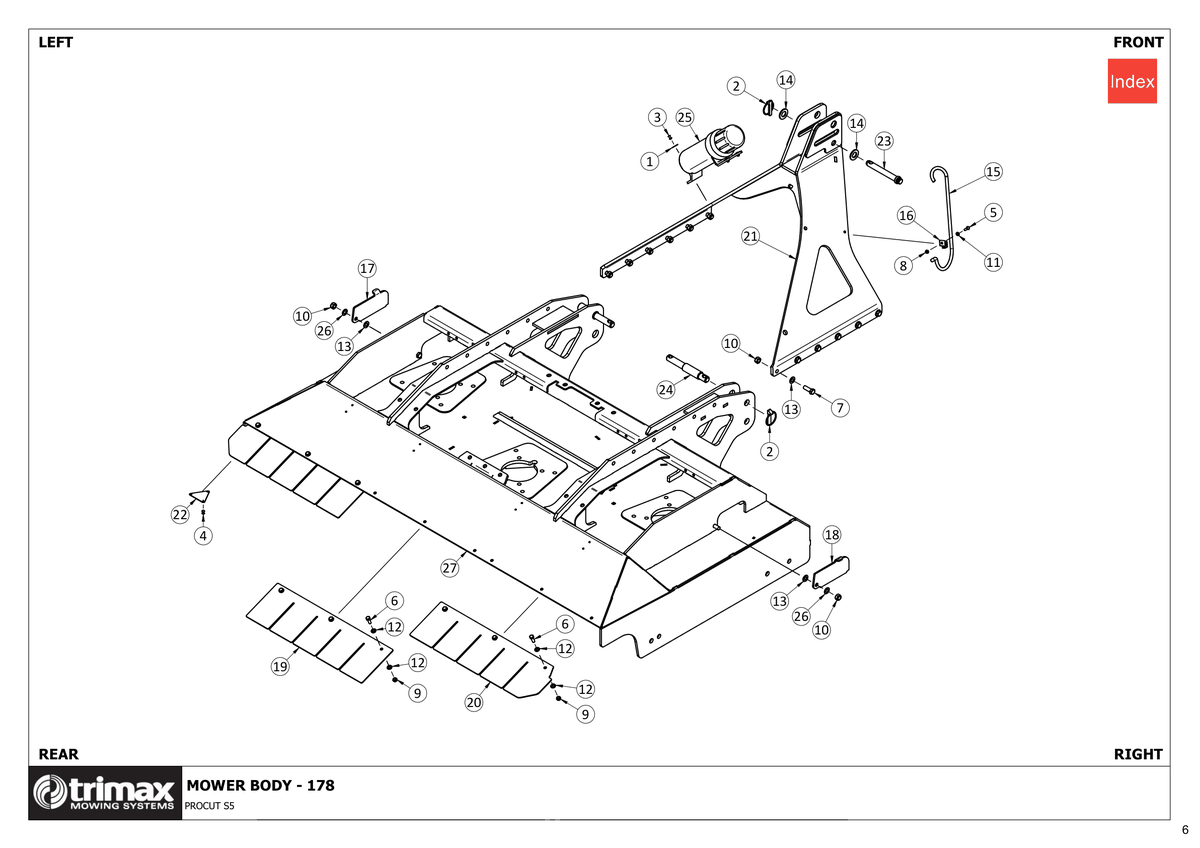

756 - Procut S5 178 - Mower Body

ProCut S5 178

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
US$0.17
2 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
US$2.23
3 Blind Rivet [213-000-004] Blind Rivet 213-000-004
US$1.22
4 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
5 Bolt [301-206-203] Bolt 301-206-203
US$0.12
6 Bolt [301-208-253] Bolt 301-208-253
US$0.89
7 Bolt [301-212-353] Bolt 301-212-353
US$2.98
8 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
9 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
10 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
11 Washer - Flat [308-060-013] Washer - Flat 308-060-013
US$0.05
12 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
13 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
14 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - 308-200-064
US$1.05
15 PTO Hanger [406-000-059] PTO Hanger 406-000-059
Price on Request
16 Retainer Clip - PTO Hanger [406-000-060] Retainer Clip - PTO Hanger 406-000-060
US$9.46
17 Wash Panel - RH [410-000-134] Wash Panel - RH 410-000-134
US$24.04
18 Wash Panel - LH [410-000-135] Wash Panel - LH 410-000-135
US$24.04
19 Rear Flap - Inner - Procut S5 [410-000-461] Rear Flap - Inner - Procut S5 410-000-461
US$93.51
20 Rear Flap - Outer - Procut S5 [410-000-463] Rear Flap - Outer - Procut S5 410-000-463
US$34.61
21 Headstock - Weldment - Procut S5 [413-000-120] Headstock - Weldment - Procut S5 413-000-120
Price on Request
22 Cap Plate [417-001-024] Cap Plate 417-001-024
US$2.39
23 Pin - Muck Protector [419-000-014] Pin - Muck Protector 419-000-014
US$12.04
24 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
US$25.34
25 Operators Manual Tube W/ Molded Bracket [450-000-073] Operators Manual Tube W/ Molded Bracket 450-000-073
US$33.38
26 Washer - Crinkle [450-000-116] Washer - Crinkle 450-000-116
US$1.30
28 Decal Sheet - Procut S5 - 178 [424-000-316] Decal Sheet - Procut S5 - 178 424-000-316
Price on Request
29 Decal Sheet - Procut S5 - Common [424-000-320] Decal Sheet - Procut S5 - Common 424-000-320
Price on Request
