NOTES:

Part # Number on image Usage Notes
402-000-134 21
  • Quantity varies per Idler Arm
403-000-123 24
  • For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 36)
403-360-111 25
  • For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 36)
405-200-720 29
  • For Front Mount, three other gearboxes exist: 405-200-721 540rpm Counter Rotation 405-200-726 1000rpm Standard Rotation 405-200-725 1000rpm Counter Rotation
504-000-133 35
  • Use Part number 407-000-028 - for Spindle repair kit
403-000-167 36
  • 403-000-167 - Idler repair kit contains 2 x Bearings,1 x circlip, 1 x Washer

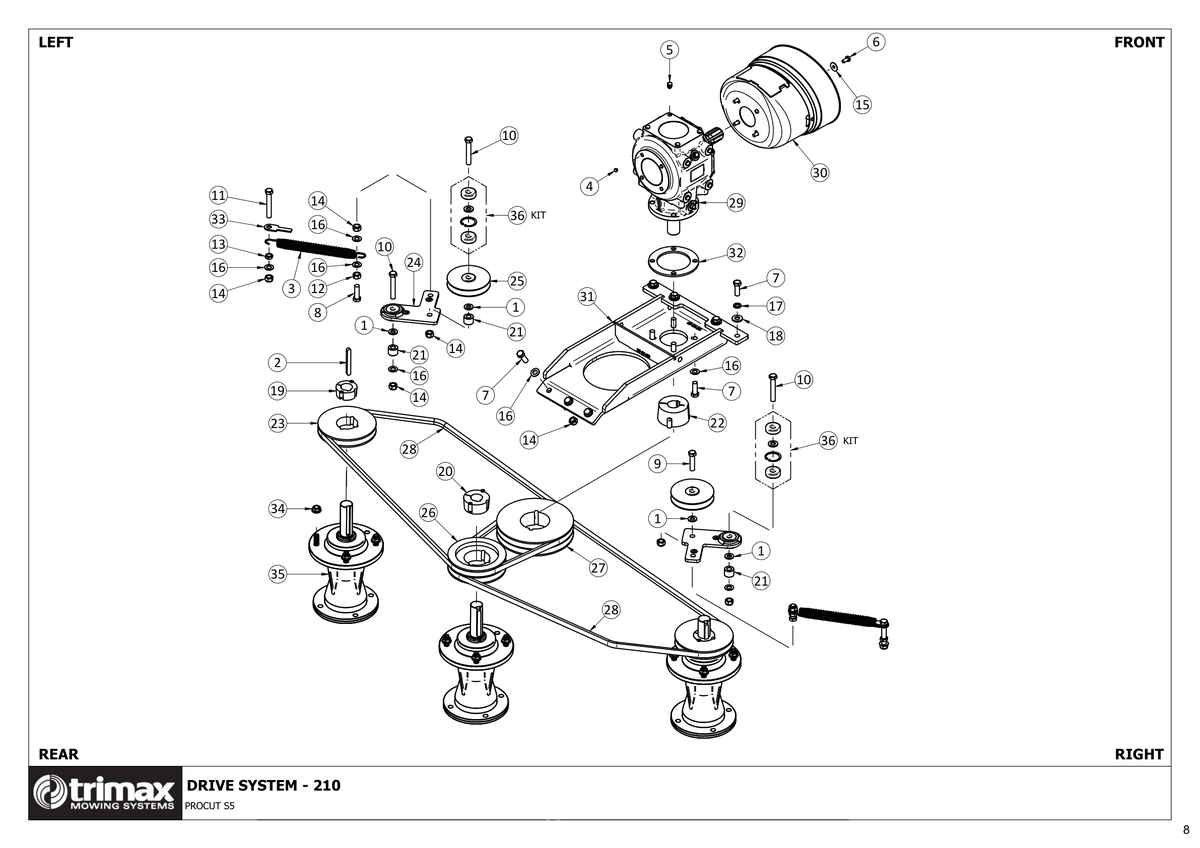

756 - Procut S5 210 - Drive System and Spindle Pulleys

ProCut S5 210

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Hardened [108-071-513] Washer - Hardened 108-071-513
US$2.98
2 Key - 10 x 8 x 85 DIN6885 Form A [205-000-003] Key - 10 x 8 x 85 DIN6885 Form A 205-000-003
US$7.14
3 Spring - Deck Belt Tensioner - 26 x 3 x 178 - Trimax Specification - [207-000-009] Spring - Deck Belt Tensioner - 26 x 3 x 178 - Trimax Specification - 207-000-009
US$6.21
4 Blanking Plug - M8 [209-000-029] Blanking Plug - M8 209-000-029
Price on Request
5 Blanking Plug - M12 [209-900-012] Blanking Plug - M12 209-900-012
US$0.35
6 Bolt [301-208-163] Bolt 301-208-163
US$1.05
7 Bolt [301-212-353] Bolt 301-212-353
US$2.98
8 Bolt - Hex Head M12 x 40 - Trimax Specification - [301-212-403] Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403
US$8.93
9 Bolt - Hex Head M12 x 50 - Trimax Specification - [301-212-503] Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503
US$3.87
10 Bolt [301-212-753] Bolt 301-212-753
US$1.45
11 Bolt [301-212-803] Bolt 301-212-803
US$7.12
12 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
13 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
14 Nut - Nyloc M12 - Trimax Specification - [307-212-053] Nut - Nyloc M12 - Trimax Specification - 307-212-053
US$0.74
15 Washer - Fender - M8 [308-080-073] Washer - Fender - M8 308-080-073
US$0.80
16 Washer - Flat M12 - Trimax Specification - [308-120-013] Washer - Flat M12 - Trimax Specification - 308-120-013
US$0.45
17 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
18 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
19 Bush - Taper Lock [402-000-078] Bush - Taper Lock 402-000-078
US$15.75
20 Bush - Taper Lock [402-000-090] Bush - Taper Lock 402-000-090
US$20.89
21 Idler Arm Spacer Bush - 19mm [402-000-134] Idler Arm Spacer Bush - 19mm i See notes section for usage notes on this part 402-000-134
US$15.18
22 Bush - Taper Lock [402-060-820] Bush - Taper Lock 402-060-820
US$57.31
23 Pulley - Taper Lock [403-000-083] Pulley - Taper Lock 403-000-083
US$53.47
24 Idler Arm - Assembly [403-000-123] Idler Arm - Assembly i See notes section for usage notes on this part 403-000-123
US$116.46
25 Pulley Assembly - Idler [403-360-111] Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111
US$70.88
26 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
US$56.48
27 Pulley -Taper Lock - 200mm x 2 SPB [403-361-261] Pulley -Taper Lock - 200mm x 2 SPB 403-361-261
US$96.89
28 Vee Belt [404-040-830] Vee Belt 404-040-830
US$51.54
29 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720
US$1,405.69
31 Gearbox Mount Weldment [417-001-297] Gearbox Mount Weldment 417-001-297
US$440.07
32 Gearbox Spacer Disc [417-001-300] Gearbox Spacer Disc 417-001-300
US$47.06
33 Idler Arm - Spring Retainer - ZP [417-001-410] Idler Arm - Spring Retainer - ZP 417-001-410
US$10.71
34 Nut - Flange [450-000-078] Nut - Flange 450-000-078
US$0.44
35 Spindle Assembly - Steadfast - With Keyway [504-000-133] Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133
US$1,058.76
36 Kit - Idler Repair [403-000-167] Kit - Idler Repair i See notes section for usage notes on this part 403-000-167
US$42.71
