NOTES:

Part # Number on image Usage Notes
202-447-980 1
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
208-442-650 2
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
301-216-653 6
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
307-216-013 11
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
308-160-063 15
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
308-160-083 16
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
404-320-123 19
  • Roller Scraper available as an option
412-000-255 23
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90° 1 x 301-216-653 - Bolt - Hex Head 1 x 307-216-013 - Nut - Plain 1 x 308-160-083 - Washer - Nordloc 1 x 412-000-255 - Height Adjuster Block
412-000-609 24
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
412-850-260 27
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current
412-000-649 33
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin 1 x 308-160-063 - Washer - Nordloc 1 x 412-000-609 - Set Screw 1 x 412-850-260 - Collar - Height Adjuster Current

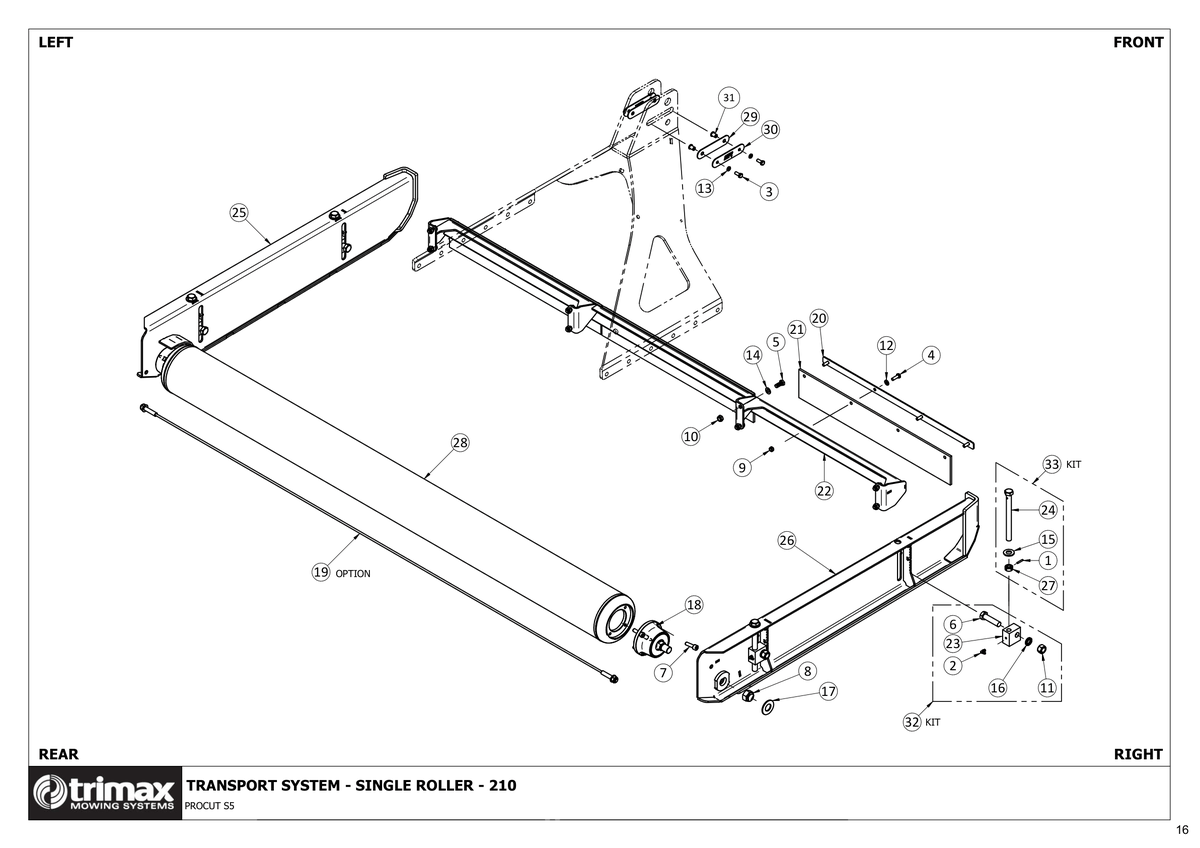

756 - Procut S5 210 - Transport System - Single Roller

ProCut S5 210

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin i See notes section for usage notes on this part 202-447-980
US$2.10
2 Grease Nipple [208-442-650] Grease Nipple i See notes section for usage notes on this part 208-442-650
US$4.76
3 Bolt [301-208-203] Bolt 301-208-203
US$1.05
4 Bolt [301-208-253] Bolt 301-208-253
US$0.89
5 Bolt [301-210-253] Bolt 301-210-253
US$0.47
6 Bolt [301-216-653] Bolt i See notes section for usage notes on this part 301-216-653
US$5.20
7 Cap Screw - Socket Head M10 x 35 - Trimax Specification - [303-210-353] Cap Screw - Socket Head M10 x 35 - Trimax Specification - 303-210-353
US$1.49
8 Nut - Hex Nyloc - M22 x 1.5 [307-122-053] Nut - Hex Nyloc - M22 x 1.5 307-122-053
US$8.98
9 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
10 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
US$0.60
11 Nut - Plain [307-216-013] Nut - Plain i See notes section for usage notes on this part 307-216-013
US$1.05
12 Washer - Flat [308-080-016] Washer - Flat 308-080-016
US$0.25
13 Washer - Spring [308-080-043] Washer - Spring 308-080-043
US$0.29
14 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
15 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat i See notes section for usage notes on this part 308-160-063
US$0.74
16 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - i See notes section for usage notes on this part 308-160-083
US$5.62
17 Washer - Heavy Flat M24 ZP (Ø25mm ID) [308-240-063] Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063
US$1.31
18 Roller Bearing Assembly - Titan [401-000-035] Roller Bearing Assembly - Titan 401-000-035
US$181.58
19 Scraper - Roller 210 [404-320-123] Scraper - Roller 210 i See notes section for usage notes on this part 404-320-123
US$100.94
20 Front Flap - Retaining Strip - 210 - Procut S5 [410-000-473] Front Flap - Retaining Strip - 210 - Procut S5 410-000-473
US$21.53
21 Front Flap - PVK - 210 - Procut S5 [410-000-475] Front Flap - PVK - 210 - Procut S5 410-000-475
Price on Request
22 Bumper Weldment - 210 - Procut S5 [410-000-477] Bumper Weldment - 210 - Procut S5 410-000-477
Price on Request
23 Height Adjuster Block [412-000-255] Height Adjuster Block i See notes section for usage notes on this part 412-000-255
US$58.77
24 Set Screw [412-000-609] Set Screw i See notes section for usage notes on this part 412-000-609
US$35.70
25 SR Side Channel Weldment - LH - 210 - Procut S5 [412-000-644] SR Side Channel Weldment - LH - 210 - Procut S5 412-000-644
Price on Request
26 SR Side Channel Weldment - RH - 210 - Procut S5 [412-000-645] SR Side Channel Weldment - RH - 210 - Procut S5 412-000-645
Price on Request
27 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster i See notes section for usage notes on this part 412-850-260
US$22.17
29 Slot Cover - Top Link SR Outer [419-000-053] Slot Cover - Top Link SR Outer 419-000-053
Price on Request
30 Slot Cover - Top Link SR Inner [419-000-054] Slot Cover - Top Link SR Inner 419-000-054
Price on Request
31 Nut - Rivnut M8 ZP [307-208-423] Nut - Rivnut M8 ZP 307-208-423
Price on Request
33 Kit - Height Adjuster Rod and Collar [412-000-649] Kit - Height Adjuster Rod and Collar i See notes section for usage notes on this part 412-000-649
US$54.64
