NOTES:

Part # Number on image Usage Notes
410-000-482 12
  • 410-000-482 - Kit - Cover Latch, Contains: 2 x 213-442-250 - Rivets 1 x 423-000-002 – cover latch.
410-000-483 13
  • 410-000-483 - Kit - Cover Retaining Post, Contains: 2x 301-208-253 – Bolt - Hex Head M8 x 25 ZP 8.8 2 x 307-208-056 – Nut - Nyloc M8 SS 8.8 1 x 410-000-422 – Cover - Retaining Post Rubber Insert 1 x 410-000-423 – Cover - Retaining Post 5

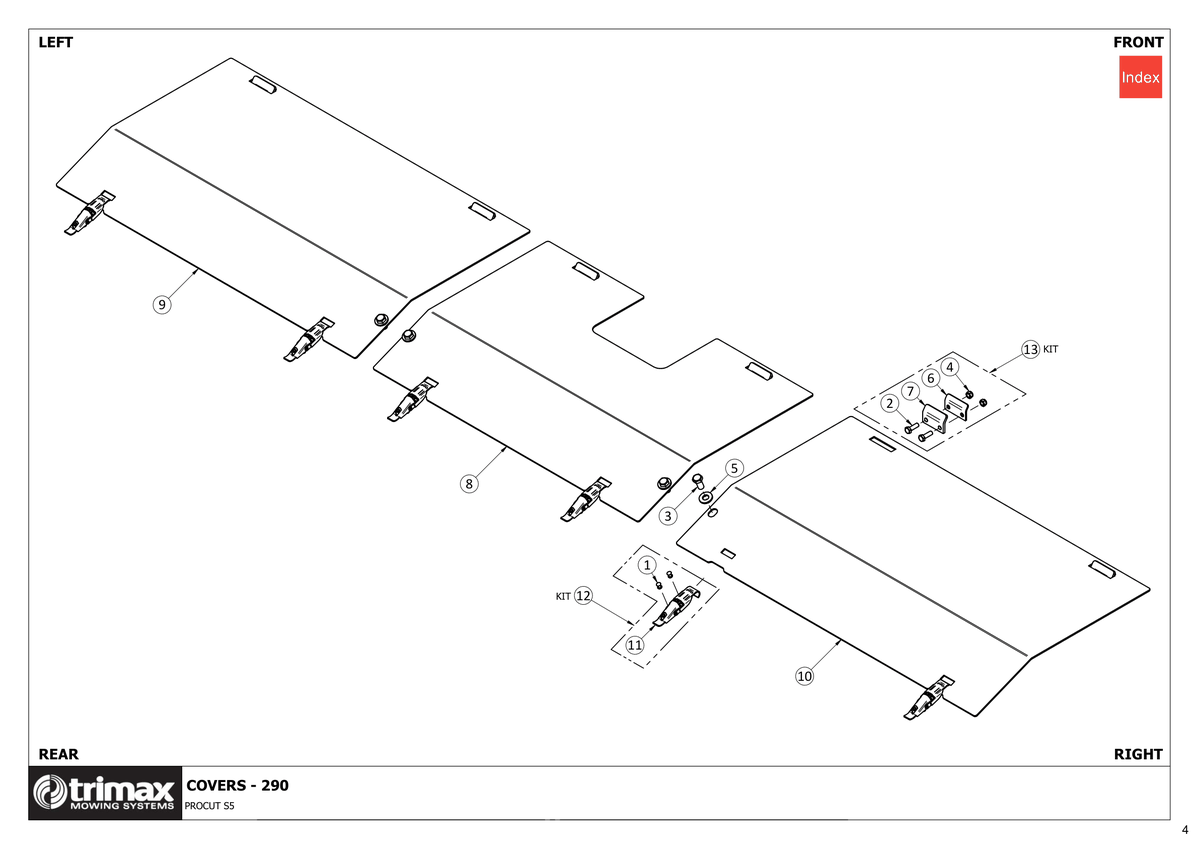

756 - Procut S5 290 - Cover System

ProCut S5 290

Grouped product items
No. Image Product Name Price Quantity
1 Blind Rivet [213-443-250] Blind Rivet 213-443-250
US$0.60
2 Bolt - Hex Head - M8 x 25 - Trimax Specification [301-208-253] Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253
US$0.89
3 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
US$2.26
4 Nut - Nyloc [307-208-056] Nut - Nyloc 307-208-056
US$0.64
5 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
6 Cover - Retaining Post Rubber Insert [410-000-422] Cover - Retaining Post Rubber Insert 410-000-422
US$5.36
7 Cover - Retaining Post [410-000-423] Cover - Retaining Post 410-000-423
US$7.18
8 Cover - Centre - Procut S5 [410-000-452] Cover - Centre - Procut S5 410-000-452
US$221.98
9 Cover - 290 - LH - Procut S5 [410-000-459] Cover - 290 - LH - Procut S5 410-000-459
US$178.10
10 Cover - 290 - RH - Procut S5 [410-000-460] Cover - 290 - RH - Procut S5 410-000-460
US$178.10
11 Latch - Cover Non Adjustable [423-000-002] Latch - Cover Non Adjustable 423-000-002
US$14.34
12 Kit - Cover Latch [410-000-482] Kit - Cover Latch i See notes section for usage notes on this part 410-000-482
Price on Request
13 Kit - Cover Retaining Post [410-000-483] Kit - Cover Retaining Post i See notes section for usage notes on this part 410-000-483
Price on Request
