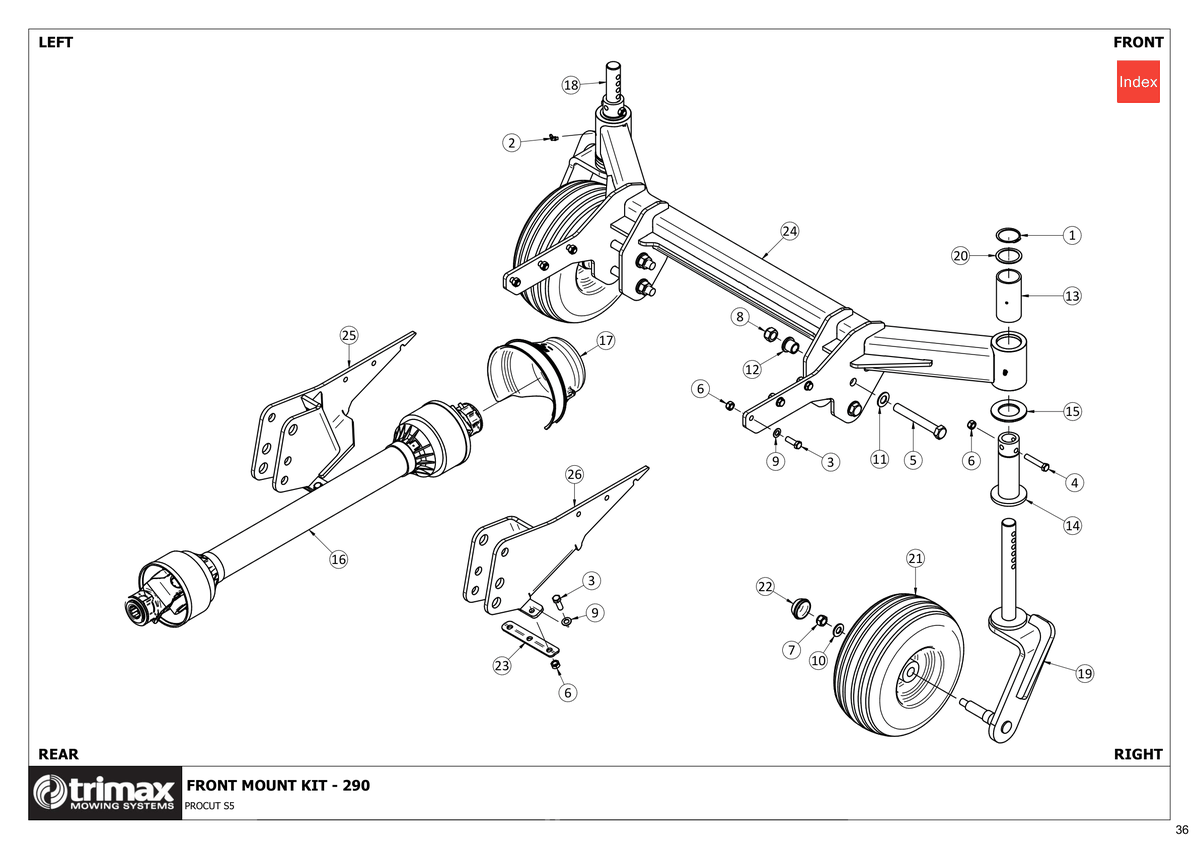

756 - Procut S5 290 - Front Mount

ProCut S5 290

Grouped product items
No.	Product Name	Price
1	Circlip/Snap Ring - External 204-820-522 More Info >	US$4.07
2	Grease Nipple 208-442-620 More Info >	US$4.02
3	Bolt 301-212-353 More Info >	US$2.98
4	Bolt 301-212-653 More Info >	US$3.72
5	Bolt 301-620-153 More Info >	Price on Request
6	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	US$0.74
7	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
8	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	US$1.49
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
10	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
11	Washer - Flat 308-200-013 More Info >	US$0.25
12	Castor Mount - Clamp Bush - Procut S5 - Front Mount Kit 402-000-154 More Info >	Price on Request
13	Bush - Pivot 402-320-060 More Info >	US$122.85
14	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	US$277.27
15	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	US$45.02
16	PTO Complete Driveshaft - 1200mm - 540/1000rpm (Trimax Specification) 406-340-870 More Info >	US$428.53
17	PTO Cone - Gearbox - Cut Down For Front Mount - Procut S5 410-000-480 More Info >	Price on Request
18	Front Castor Weldment - LH 412-320-051 More Info >	US$726.27
19	Front Castor Weldment - RH 412-320-052 More Info >	US$726.27
20	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	US$20.55
21	Wheel Assembly 416-449-010 More Info >	US$125.48
22	Grease Cap - Wheel 416-449-015 More Info >	US$11.07
23	Rear Linkplate - Doubler - Folded - Procut S5 - Front Mount Kit 417-001-734 More Info >	Price on Request
24	Castor Mount Weldment - Procut S5 - Front Mount Kit 417-001-741 More Info >	Price on Request
25	Rear Linkplate Weldment - LH - Procut S5 - Front Mount Kit 417-001-742 More Info >	Price on Request
26	Rear Linkplate Weldment - RH - Procut S5 - Front Mount Kit 417-001-743 More Info >	Price on Request
