Parts Shop

NOTES:

Part # Number on image Usage Notes
202-447-980 1
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin\n1 x 308-160-063 - Washer - Nordloc\n1 x 412-000-609 - Set Screw\n1 x 412-850-260 - Collar - Height Adjuster Current
208-442-650 2
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90°\n1 x 301-216-653 - Bolt - Hex Head\n1 x 307-216-013 - Nut - Plain\n1 x 308-160-083 - Washer - Nordloc\n1 x 412-000-255 - Height Adjuster Block
301-216-653 3
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90°\n1 x 301-216-653 - Bolt - Hex Head\n1 x 307-216-013 - Nut - Plain\n1 x 308-160-083 - Washer - Nordloc\n1 x 412-000-255 - Height Adjuster Block
307-216-013 8
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90°\n1 x 301-216-653 - Bolt - Hex Head\n1 x 307-216-013 - Nut - Plain\n1 x 308-160-083 - Washer - Nordloc\n1 x 412-000-255 - Height Adjuster Block
308-160-063 11
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin\n1 x 308-160-063 - Washer - Nordloc\n1 x 412-000-609 - Set Screw\n1 x 412-850-260 - Collar - Height Adjuster Current
308-160-083 12
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90°\n1 x 301-216-653 - Bolt - Hex Head\n1 x 307-216-013 - Nut - Plain\n1 x 308-160-083 - Washer - Nordloc\n1 x 412-000-255 - Height Adjuster Block
404-320-129 15
  • Roller Scraper available as an option
412-000-148 16
  • Antibounce Skid available as an option
412-000-255 17
  • 412-000-648 - Kit - Height Adjuster block contains: 1 x 208-442-650 - Grease Nipple - 90°\n1 x 301-216-653 - Bolt - Hex Head\n1 x 307-216-013 - Nut - Plain\n1 x 308-160-083 - Washer - Nordloc\n1 x 412-000-255 - Height Adjuster Block
412-000-609 19
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin\n1 x 308-160-063 - Washer - Nordloc\n1 x 412-000-609 - Set Screw\n1 x 412-850-260 - Collar - Height Adjuster Current
412-850-260 20
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin\n1 x 308-160-063 - Washer - Nordloc\n1 x 412-000-609 - Set Screw\n1 x 412-850-260 - Collar - Height Adjuster Current
412-000-649 25
  • 412-000-649 - Kit - Height Adjuster Rod & Collar contains: 1 x 202-447-980 - Roll Pin\n1 x 308-160-063 - Washer - Nordloc\n1 x 412-000-609 - Set Screw\n1 x 412-850-260 - Collar - Height Adjuster Current

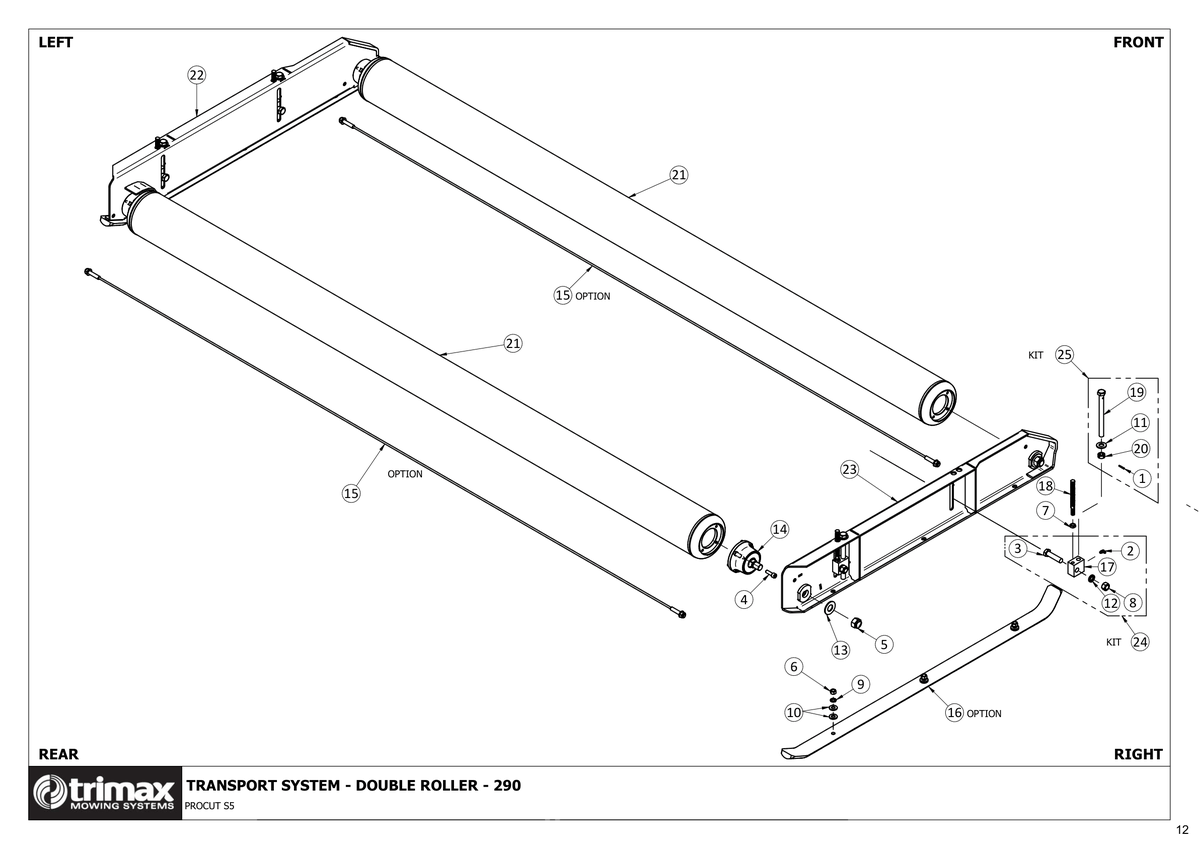

756 - Procut S5 290 - Transport System - Double Roller

ProCut S5 290

Grouped product items
No. Image Product Name Price Quantity
1 Roll Pin [202-447-980] Roll Pin i See notes section for usage notes on this part 202-447-980
US$2.10
2 Grease Nipple [208-442-650] Grease Nipple i See notes section for usage notes on this part 208-442-650
US$4.76
3 Bolt [301-216-653] Bolt i See notes section for usage notes on this part 301-216-653
US$5.20
4 Cap Screw - Socket Head M10 x 35 - Trimax Specification - [303-210-353] Cap Screw - Socket Head M10 x 35 - Trimax Specification - 303-210-353
US$1.49
5 Nut - Hex Nyloc - M22 x 1.5 [307-122-053] Nut - Hex Nyloc - M22 x 1.5 307-122-053
US$8.98
6 Nut - Plain M12 - Trimax Specification - [307-212-013] Nut - Plain M12 - Trimax Specification - 307-212-013
US$0.60
7 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
8 Nut - Plain [307-216-013] Nut - Plain i See notes section for usage notes on this part 307-216-013
US$1.05
9 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
US$0.60
10 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
11 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat i See notes section for usage notes on this part 308-160-063
US$0.74
12 Washer - Wedge Lock M16 - Trimax Specification - [308-160-083] Washer - Wedge Lock M16 - Trimax Specification - i See notes section for usage notes on this part 308-160-083
US$5.62
13 Washer - Heavy Flat M24 ZP (Ø25mm ID) [308-240-063] Washer - Heavy Flat M24 ZP (Ø25mm ID) 308-240-063
US$1.31
14 Roller Bearing Assembly - Titan [401-000-035] Roller Bearing Assembly - Titan 401-000-035
US$181.58
15 Scraper - Roller 290 [404-320-129] Scraper - Roller 290 i See notes section for usage notes on this part 404-320-129
US$100.94
16 Skid Assembly - Anti-Bounce [412-000-148] Skid Assembly - Anti-Bounce i See notes section for usage notes on this part 412-000-148
US$185.94
17 Height Adjuster Block [412-000-255] Height Adjuster Block i See notes section for usage notes on this part 412-000-255
US$58.77
18 Height Indicator Rod - 6 Sided [412-000-580] Height Indicator Rod - 6 Sided 412-000-580
US$29.59
19 Set Screw [412-000-609] Set Screw i See notes section for usage notes on this part 412-000-609
US$35.70
20 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster i See notes section for usage notes on this part 412-850-260
US$22.17
21 Roller Weldment [414-000-159] Roller Weldment 414-000-159
US$808.58
22 Side Channel Weldment - Titan Bearing - LH [412-000-594] Side Channel Weldment - Titan Bearing - LH 412-000-594
US$400.66
23 Side Channel Weldment - Titan Bearing - RH [412-000-595] Side Channel Weldment - Titan Bearing - RH 412-000-595
US$400.66
25 Kit - Height Adjuster Rod and Collar [412-000-649] Kit - Height Adjuster Rod and Collar i See notes section for usage notes on this part 412-000-649
US$54.64
