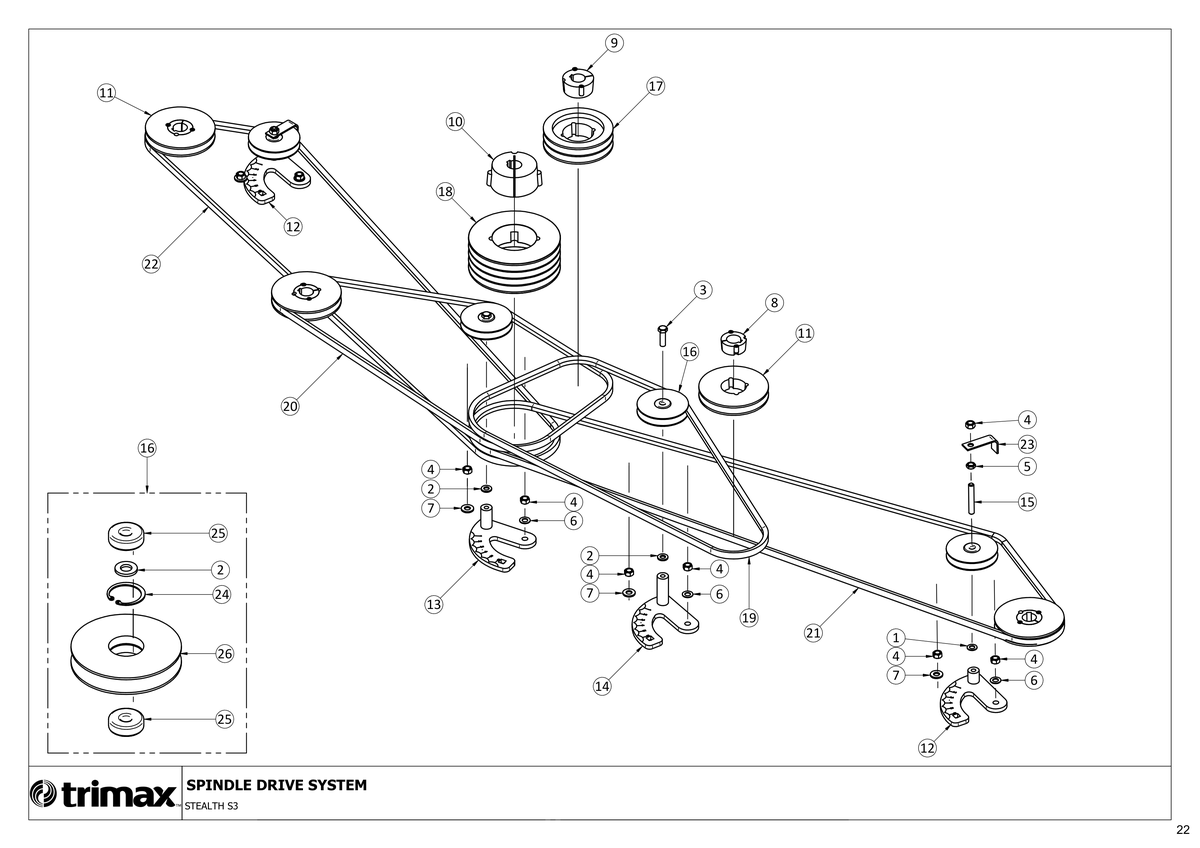

758 - Stealth S3 340 - Drive System and Spindle Pulleys

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-071-413 More Info >	US$2.53
2	Washer - Hardened 108-071-513 More Info >	US$2.98
3	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	US$8.93
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
5	Nut - Half 307-212-023 More Info >	US$0.80
6	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
7	Washer - Heavy Flat 308-120-063 More Info >	US$0.89
8	Bush - Taper Lock 402-000-078 More Info >	US$15.75
9	Bush - Taper Lock 402-000-090 More Info >	US$20.89
10	Bush - Taper Lock 402-060-680 More Info >	US$87.26
11	Pulley - Taper Lock 403-000-083 More Info >	US$53.47
15	Stud 403-330-443 More Info >	US$2.27
16	Pulley Assembly - Idler 403-360-111 More Info >	US$70.88
17	Pulley - Taper Lock 403-361-140 More Info >	US$56.48
18	Pulley - Taper Lock 403-361-270 More Info >	US$240.93
19	Vee Belt 404-040-810 More Info >	US$31.88
21	Vee Belt - B129 - Trimax Specification - 404-041-290 More Info >	US$55.13
23	Folding 417-001-178 More Info >	US$1.96
24	Circlip/Snap Ring - Internal 204-820-371 More Info >	US$3.13
25	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900 More Info >	US$18.52
26	Pulley - Idler 403-360-110 More Info >	US$41.94
