NOTES:

Part # Number on image Usage Notes
301-210-303 1
  • Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the Hinge System - Pre S/N 758-340-322-1060702 listing.
301-220-753 4
  • Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the Hinge System - Pre S/N 758-340-322-1060702 listing.
401-000-013 10
  • Use this listing only for mowers manufactured with doubler plate from S/N 758-340-321-1060703 onwards. For all mowers manufactured prior to S/N 758-340-321-1060703 use the Hinge System - Pre S/N 758-340-322-1060702 listing.

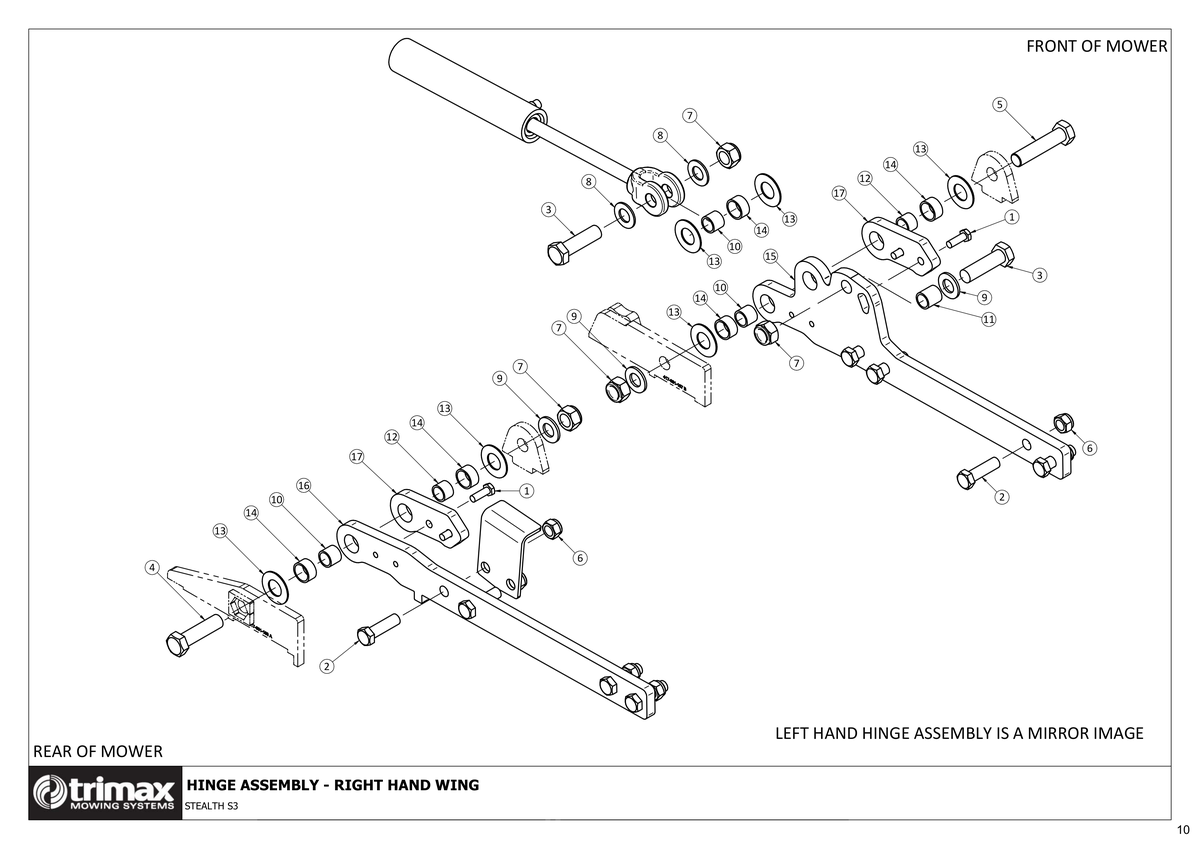

758 - Stealth S3 340 - Hinge System - Current (from S/N 758-340-321-1060703)

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Bolt [301-210-303] Bolt i See notes section for usage notes on this part 301-210-303
US$0.50
2 Bolt [301-216-553] Bolt 301-216-553
US$10.87
4 Bolt [301-220-753] Bolt i See notes section for usage notes on this part 301-220-753
US$13.55
6 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
7 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
US$1.49
8 Washer - Flat [308-200-013] Washer - Flat 308-200-013
US$0.25
9 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
US$1.05
10 Inner Ring [401-000-013] Inner Ring i See notes section for usage notes on this part 401-000-013
US$15.08
11 Inner Ring - Lock Bush [401-000-018] Inner Ring - Lock Bush 401-000-018
US$14.26
13 Washer [402-000-088] Washer 402-000-088
US$8.00
14 Bush - Composite [402-000-093] Bush - Composite 402-000-093
US$29.87
16 Plate [417-001-164] Plate 417-001-164
US$153.04
