NOTES:

Part # Number on image Usage Notes
406-000-059 28
  • Previous models used a wire type PTO hanger part number 404-000-059 which can be replaced by the current one

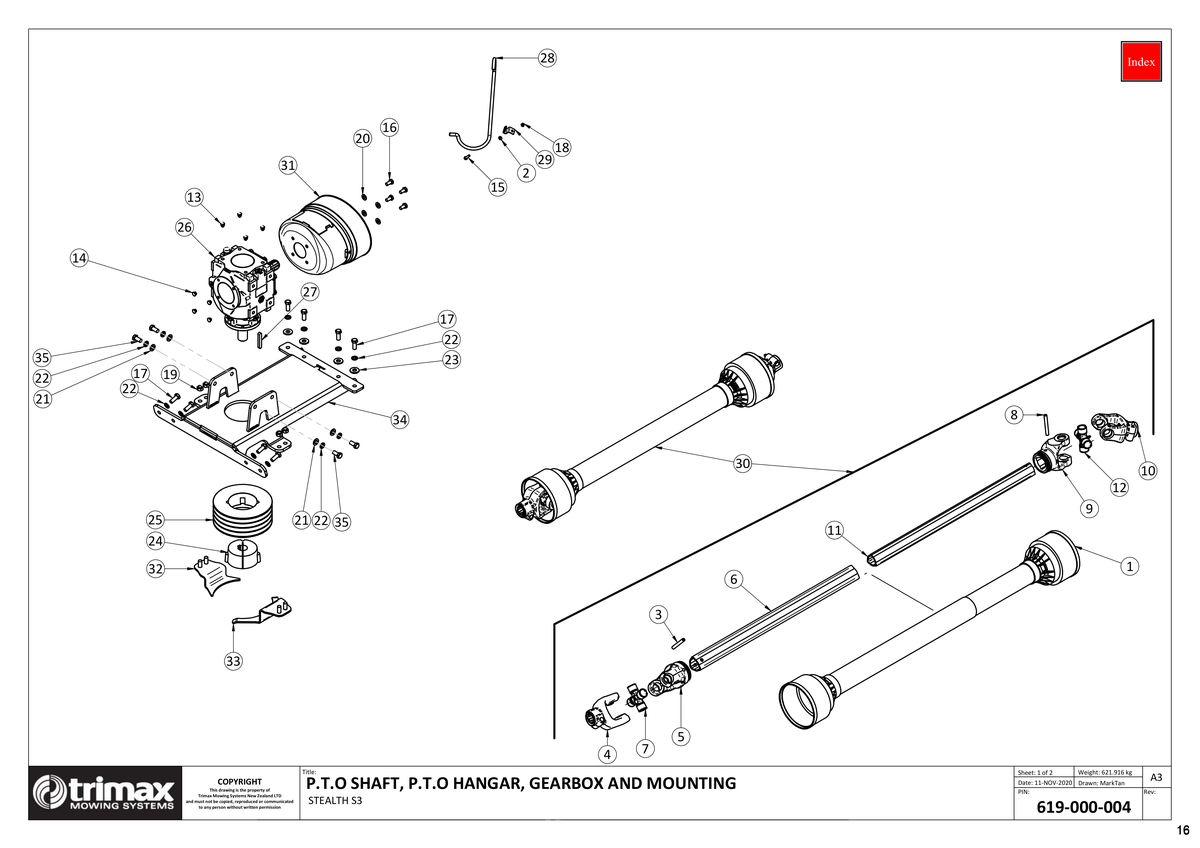

758 - Stealth S3 340 - PTO Shaft, PTO Hanger, Gearbox and Mounting

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Cover set - PTO Shaft [406-343-242] Cover set - PTO Shaft 406-343-242
US$220.04
2 Roll Pin [202-343-700] Roll Pin 202-343-700
US$4.76
3 Yoke [406-343-200] Yoke 406-343-200
US$122.61
4 Yoke - Outer Profile [406-343-220] Yoke - Outer Profile 406-343-220
US$122.61
6 Universal Joint Cross [406-344-150] Universal Joint Cross 406-344-150
US$102.62
8 Yoke [403-343-210] Yoke 403-343-210
Price on Request
12 Blanking Plug [209-900-012] Blanking Plug 209-900-012
US$0.35
13 Blanking Plug [209-900-014] Blanking Plug 209-900-014
US$0.26
14 Bolt [301-206-253] Bolt 301-206-253
US$0.11
15 Bolt [301-210-203] Bolt 301-210-203
US$0.44
16 Bolt [301-212-303] Bolt 301-212-303
US$3.13
17 Nut - Nyloc [307-206-053] Nut - Nyloc 307-206-053
US$0.10
18 Nut - Nyloc [307-212-053] Nut - Nyloc 307-212-053
US$0.74
19 Washer - Flat [308-060-013] Washer - Flat 308-060-013
US$0.05
20 Washer - Flat [308-100-013] Washer - Flat 308-100-013
US$0.17
21 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
22 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
23 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
US$0.89
24 Bush - Taper Lock [402-060-680] Bush - Taper Lock 402-060-680
US$87.26
25 Pulley [403-361-270] Pulley 403-361-270
US$240.93
26 Gearbox [405-000-015] Gearbox 405-000-015
US$688.00
27 Key - Gearbox [405-207-154] Key - Gearbox 405-207-154
US$10.29
28 PTO Hanger [406-000-059] PTO Hanger i See notes section for usage notes on this part 406-000-059
Price on Request
29 Retainer Clip - PTO Hanger [406-000-060] Retainer Clip - PTO Hanger 406-000-060
US$9.46
30 PTO Shaft [406-340-870] PTO Shaft 406-340-870
US$428.53
35 Bolt [301-212-253] Bolt 301-212-253
US$2.26
