NOTES:

Part # Number on image Usage Notes
401-000-032 12
  • 460-000-207 Roller Bearing Protection Kit is also available as an option for the mowers prior to serial number 719-340-002-0172, for ease of greasing roller bearings as there was no grease nipple access holes on the roller mounts.
414-000-080 21
  • 719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.

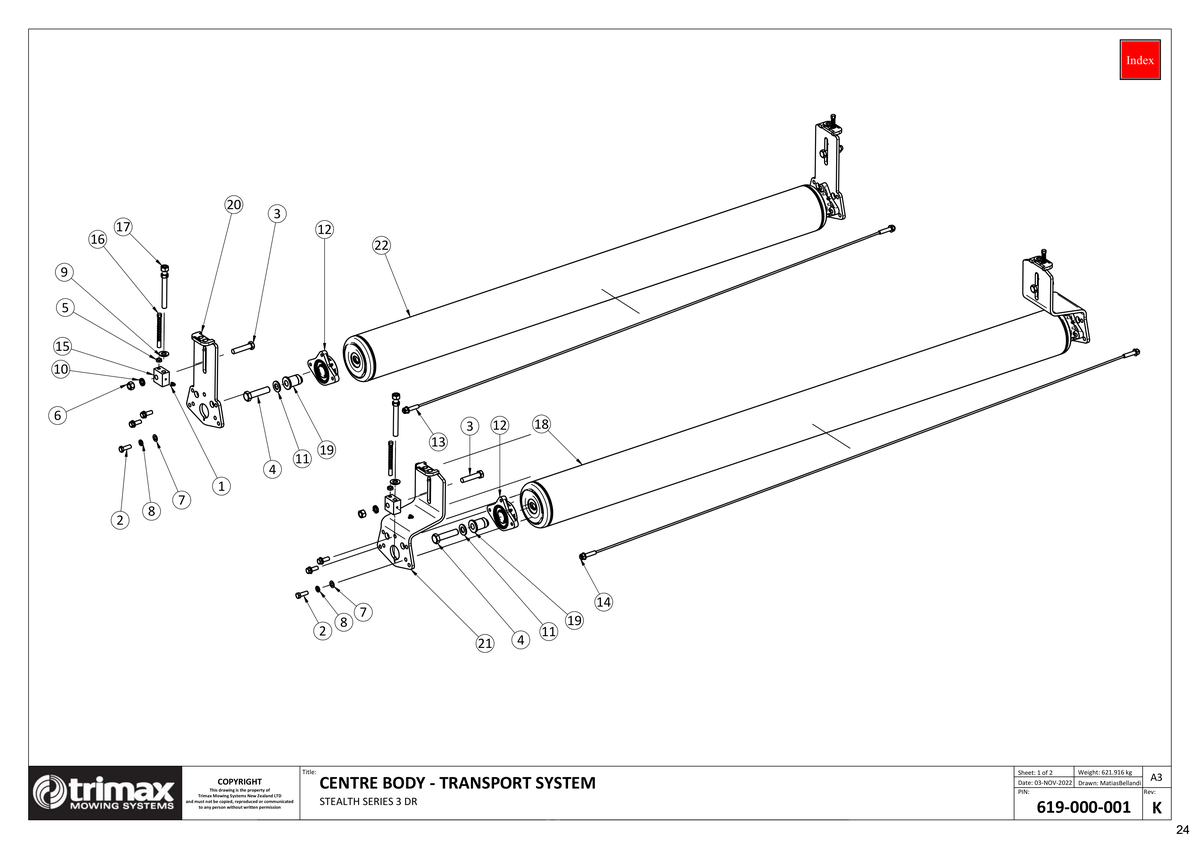

758 - Stealth S3 340 - Transport System - Centre Body

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-650] Grease Nipple 208-442-650
US$4.76
2 Bolt [301-212-353] Bolt 301-212-353
US$2.98
3 Bolt [301-216-753] Bolt 301-216-753
US$2.69
4 Bolt [301-220-853] Bolt 301-220-853
US$8.00
5 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
6 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
7 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
8 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
9 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
10 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
US$5.62
11 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
US$1.05
12 Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide [401-000-032] Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide i See notes section for usage notes on this part 401-000-032
US$79.69
13 Roller Scraper [404-000-122] Roller Scraper 404-000-122
US$100.94
14 Roller Scraper [404-000-123] Roller Scraper 404-000-123
US$100.94
15 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
US$58.77
16 Height Indicator - Metric [412-000-256] Height Indicator - Metric 412-000-256
US$19.91
18 Roller Weldment - LocTek Centre Body Rear [414-000-072] Roller Weldment - LocTek Centre Body Rear 414-000-072
US$913.75
19 Roller Stub Sleeve - LocTek [414-000-076] Roller Stub Sleeve - LocTek 414-000-076
US$35.06
21 Roller Mount - Centre Body - Rear [414-000-080] Roller Mount - Centre Body - Rear i See notes section for usage notes on this part 414-000-080
US$341.50
