NOTES:

Part #	Number on image	Usage Notes
401-000-035	19	New Titan bubble roller, roller bearings and side channel used on the wing transport system from serial number 619-340-300-1040680 onwards.

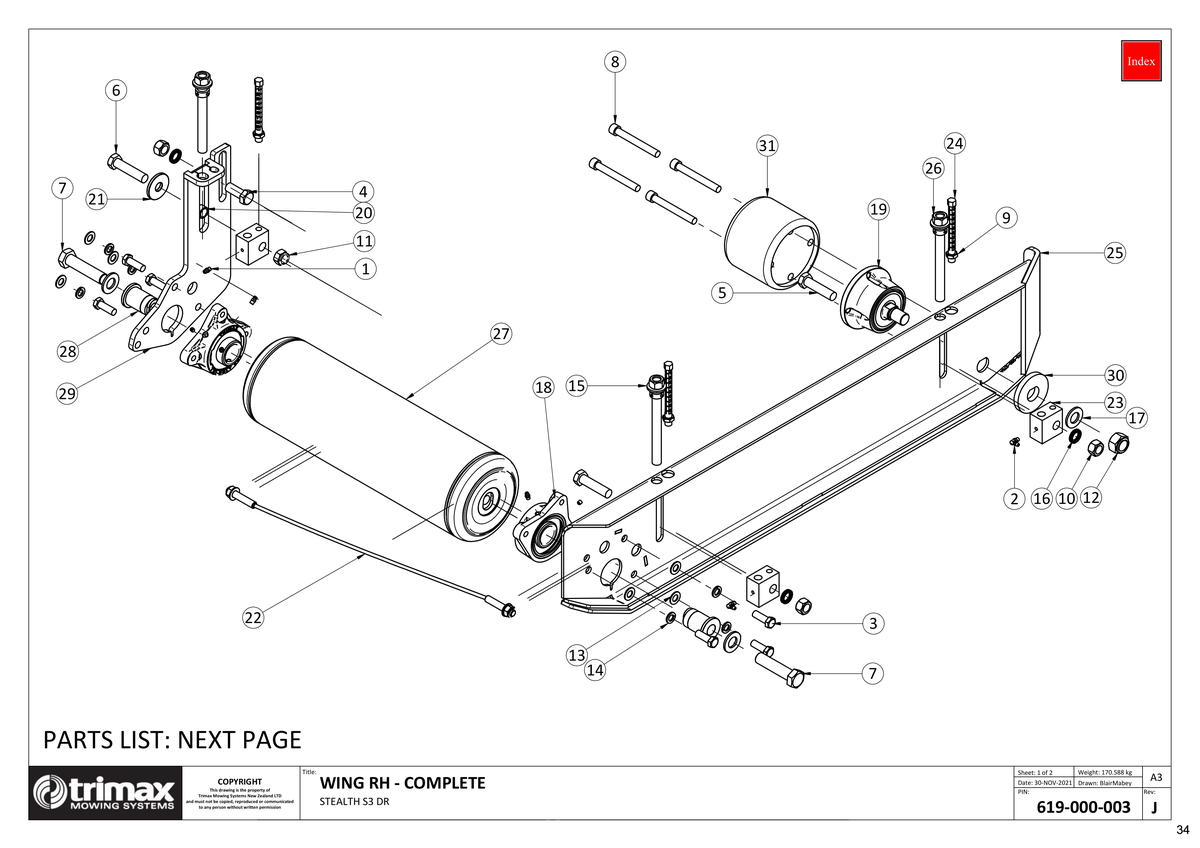

758 - Stealth S3 340 - Transport System - Titan - Wing RH

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - 1/4" Short 208-442-600 More Info >	US$3.72
2	Grease Nipple 208-442-650 More Info >	US$4.76
3	Bolt 301-212-353 More Info >	US$2.98
4	Bolt 301-216-403 More Info >	US$1.43
5	Bolt 301-216-653 More Info >	US$5.20
7	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	US$8.00
9	Nut - Half 307-212-023 More Info >	US$0.80
10	Nut - Plain 307-216-013 More Info >	US$1.05
11	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	US$1.05
12	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	US$8.98
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	US$0.45
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
15	Washer - Heavy Flat 308-160-063 More Info >	US$0.74
16	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	US$5.62
17	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	US$1.05
18	Roller Bearing Assembly - TriBolt 307-22 Oxide - 401-000-032 More Info >	US$79.69
19	Roller Bearing Assembly - Titan i See notes section for usage notes on this part 401-000-035 More Info >	US$181.58
21	Heavy Washer 402-840-560 More Info >	US$10.21
22	Roller Scraper 404-000-124 More Info >	US$100.94
23	Height Adjuster Block 412-000-255 More Info >	US$58.77
24	Height Indicator - Metric 412-000-256 More Info >	US$19.91
27	Roller Weldment - Rear Wing 414-000-075 More Info >	US$456.88
28	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	US$35.06
29	Roller Mount - Inner Wing RH 414-000-079 More Info >	Price on Request
30	Clamp Plate - Titan Bearing Pegasus S4 414-000-161 More Info >	US$17.73
