NOTES:

Part # Number on image Usage Notes
401-000-032 18
  • 401-000-022 Roller bearing kit is obsolete and is replaced by 401-000-032 Brg kit with twin grease holes
414-000-079 31
  • Serial number 719-340-002-0172 onwards has provision for greasing the roller bearing through the side roller mount plate holes.

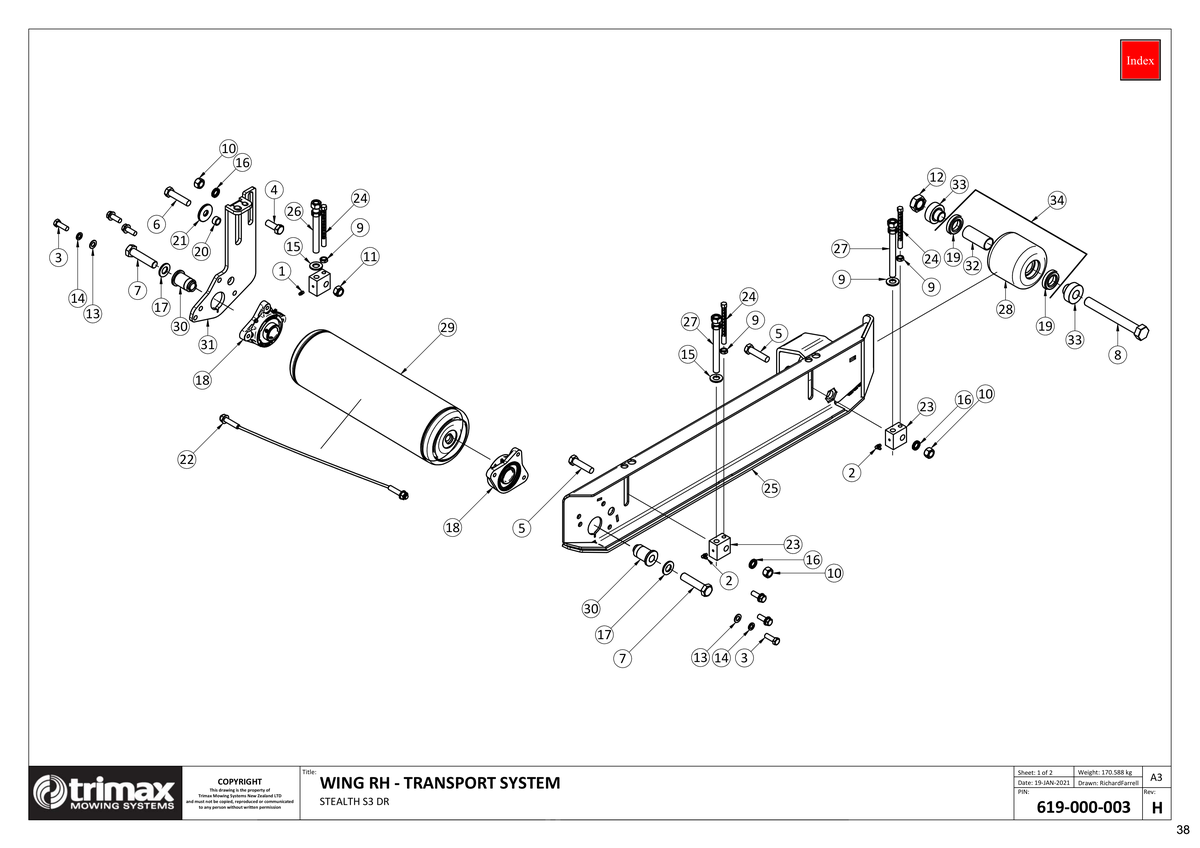

758 - Stealth S3 340 - Transport System - Wing RH

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-600] Grease Nipple 208-442-600
US$3.72
2 Grease Nipple [208-442-650] Grease Nipple 208-442-650
US$4.76
3 Bolt [301-212-353] Bolt 301-212-353
US$2.98
4 Bolt [301-216-403] Bolt 301-216-403
US$1.43
5 Bolt [301-216-653] Bolt 301-216-653
US$5.20
7 Bolt [301-220-853] Bolt 301-220-853
US$8.00
9 Nut - Half [307-212-023] Nut - Half 307-212-023
US$0.80
10 Nut - Plain [307-216-013] Nut - Plain 307-216-013
US$1.05
11 Nut - Nyloc [307-216-053] Nut - Nyloc 307-216-053
US$1.05
13 Washer - Flat [308-120-013] Washer - Flat 308-120-013
US$0.45
14 Washer - Spring [308-120-043] Washer - Spring 308-120-043
US$0.60
15 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
US$0.74
16 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
US$5.62
17 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
US$1.05
18 Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide [401-000-032] Bearing Assembly - Tri-Bolt Housing W/Standard 307-22 Oxide i See notes section for usage notes on this part 401-000-032
US$79.69
19 Bearing [401-023-700] Bearing 401-023-700
US$18.93
21 Heavy Washer [402-840-560] Heavy Washer 402-840-560
US$10.21
22 Roller Scraper [404-000-124] Roller Scraper 404-000-124
US$100.94
23 Height Adjuster Block [412-000-255] Height Adjuster Block 412-000-255
US$58.77
24 Height Indicator - Metric [412-000-256] Height Indicator - Metric 412-000-256
US$19.91
29 Roller Weldment - Rear Wing [414-000-075] Roller Weldment - Rear Wing 414-000-075
US$456.88
30 Roller Stub Sleeve - LocTek [414-000-076] Roller Stub Sleeve - LocTek 414-000-076
US$35.06
31 Roller Mount - Inner Wing RH [414-000-079] Roller Mount - Inner Wing RH i See notes section for usage notes on this part 414-000-079
Price on Request
32 Bearing Spacer Tube [414-000-091] Bearing Spacer Tube 414-000-091
US$18.59
33 Bearing Spacer Outer [450-000-090] Bearing Spacer Outer 450-000-090
US$45.00
34 Front Wing Roller Assembly [414-000-090] Front Wing Roller Assembly 414-000-090
US$201.88
