NOTES:

Part #	Number on image	Usage Notes
307-212-053	3	Use part number 411-322-050 for LazerBlade Bolt and Nyloc Nut
411-160-842	6	Use part number 411-000-034 for NexaBlades
411-322-051	7	Use part number 411-322-050 for LazerBlade Bolt and Nyloc Nut

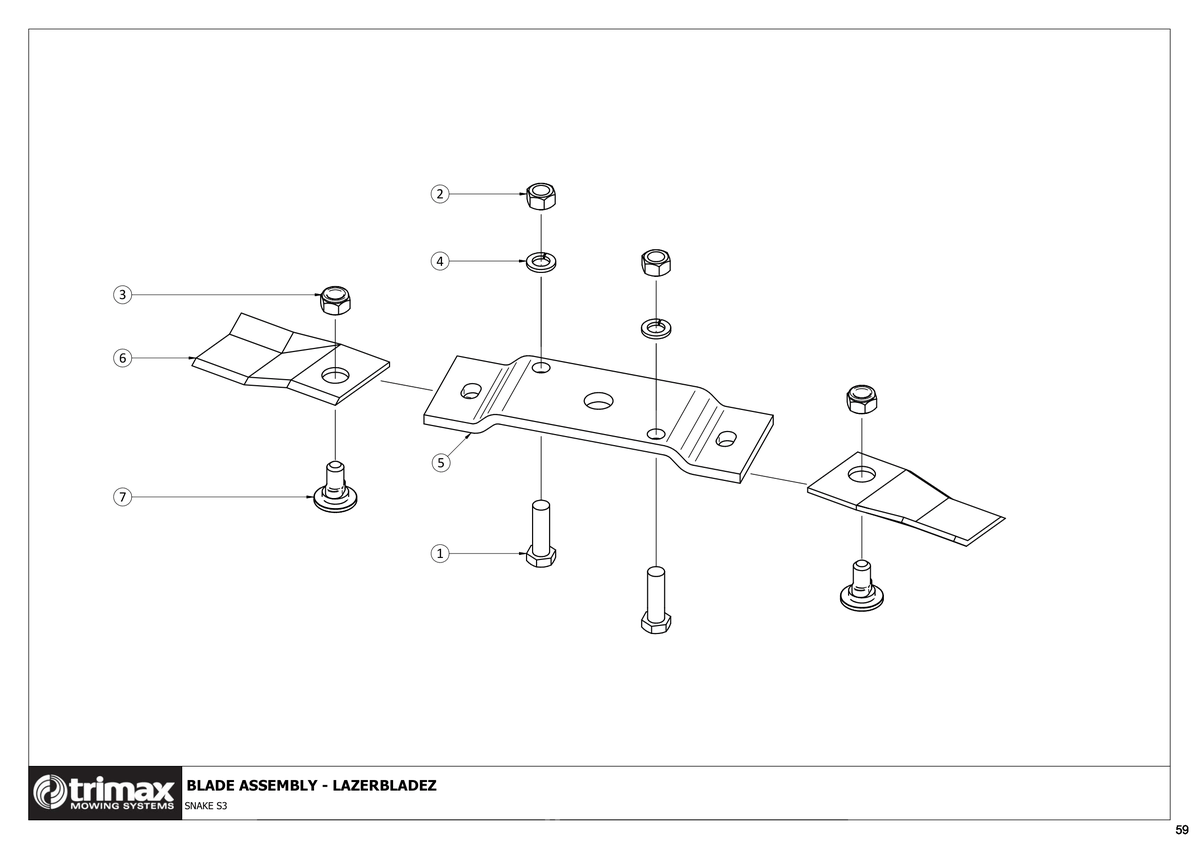

780 - Snake S3 - 320 - Blade Assembly

Snake S3 320

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head M12 x 40 - Trimax Specification - 301-212-403 More Info >	US$8.93
2	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	US$0.60
3	Nut - Nyloc M12 - Trimax Specification - i See notes section for usage notes on this part 307-212-053 More Info >	US$0.74
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	US$0.60
5	Blade Beam 188 - Snake S3 411-000-619 More Info >	US$130.34
6	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade i See notes section for usage notes on this part 411-160-842 More Info >	US$9.40
7	Blade Bolt - Lazerblade and Nexablade Mounting - Trimax Specification i See notes section for usage notes on this part 411-322-051	Price on Request
